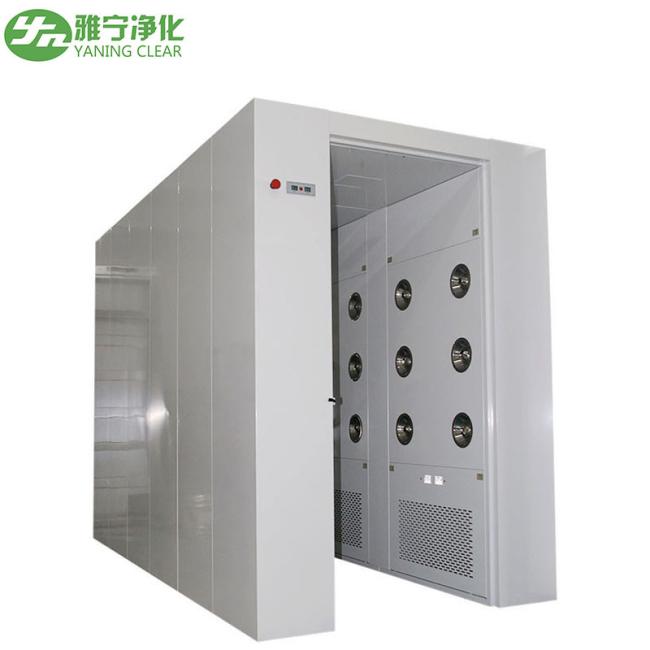

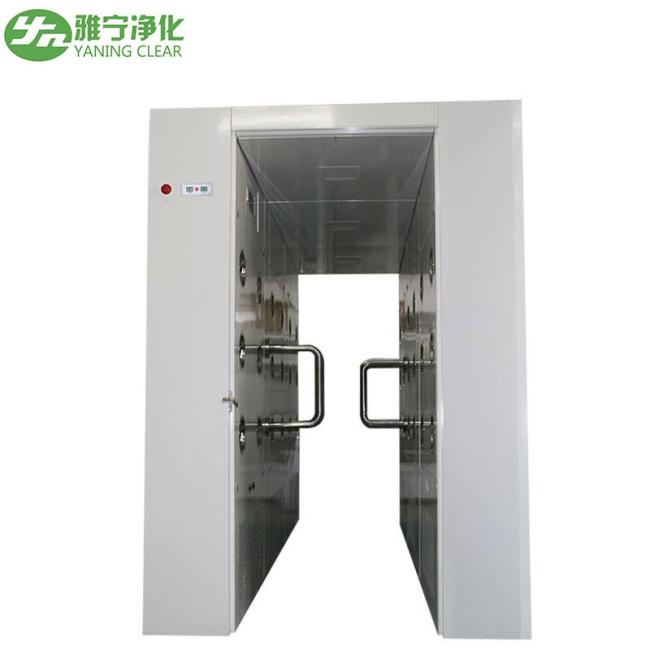

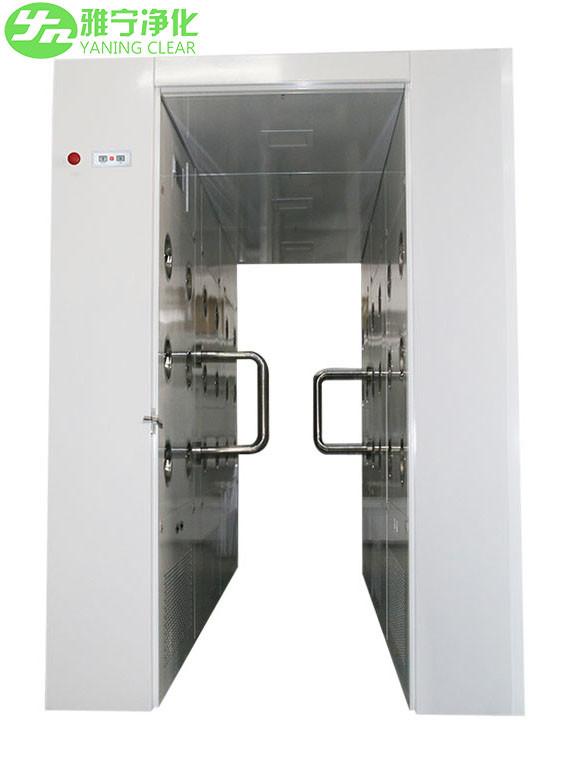

YANING GMP Modular System Clean Room Intelligent Air Shower Tunnel For Pharmaceutical
YANING GMP Modular System Clean Room Intelligent Air Shower Tunnel for Pharmaceutical
Product Description
Clean Room Air Shower Tunnel is a necessary passage for person or goods entering into the clean room in order to reduce the pollution caused
by people/cargo entering and leaving the clean room.
Removes surface-deposited particles from personnel prior to entering the cleanroom.
Self-contained, turnkey chambers are pre-assembled at the factory and shipped in two sections (top and bottom) for fast installation
Product Features
HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
Shower time and door interlock duration can be programmed using the touchscreen control panel
Air nozzles can be adjusted to redirect streams of air
Energy-efficient LED lighting includes motion-activation

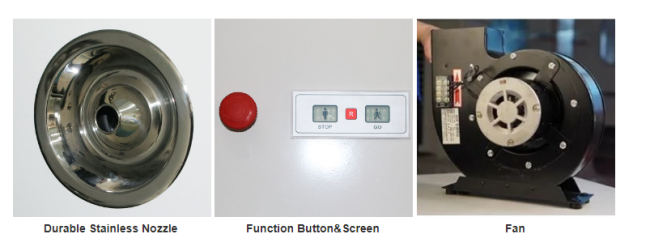

Product Details
Product Parameter
| Product Name |
Single Person Double Blow |
Two Person Double Blow |
Three Person Double Blow |
Air Shower Tunnel |
| Product Model | YN-FLS-01 | YN-FLS-02 | YN-FLS-03 | YN-FLS-04 |
| External Dimension(mm) | 1290*1000*2130 | 1290*1500*2130 | 1290*2000*2130 | 1290*3000*2130 |
| Internal Dimension(mm) | 790*880*1925 | 790*1380*1925 | 790*1880*1925 | 790*2880*1925 |
| Suitable Person | 1-2 Person | 2-3 Person | 3-4 Person | 4-5 Person |
| Nozzle | 12pcs | 18pcs | 24pcs | 36pcs |
| Air Velocity | 22-27m/s | 22-27m/s | 22-27m/s | 22-27m/s |
| Noise | <65 dBA | <65 dBA | <65 dBA | <65 dBA |
| G4 pre Filter Dimension(mm) | 745*375*21*1pcs | 900*375*21*2pcs | 745*375*21*2pcs | 745*375*21*3pcs |
| H13 Hepa Filter Dimension(mm) | 610*610*69*1pcs | 610*610*69*2pcs | 610*610*69*2pcs | 610*610*69*3pcs |
| Filter Efficiency | 99.95%@0.3um | 99.95%@0.3um | 99.95%@0.3um | 99.95%@0.3um |
| Fan Power(W) | 1100W*1pcs | 750W*2pcs | 1100W*2pcs | 1100W*3pcs |
| LED Lamp Power(W) | 15W*1pcs | 15W*1pcs | 15W*2pcs | 15W*3pcs |

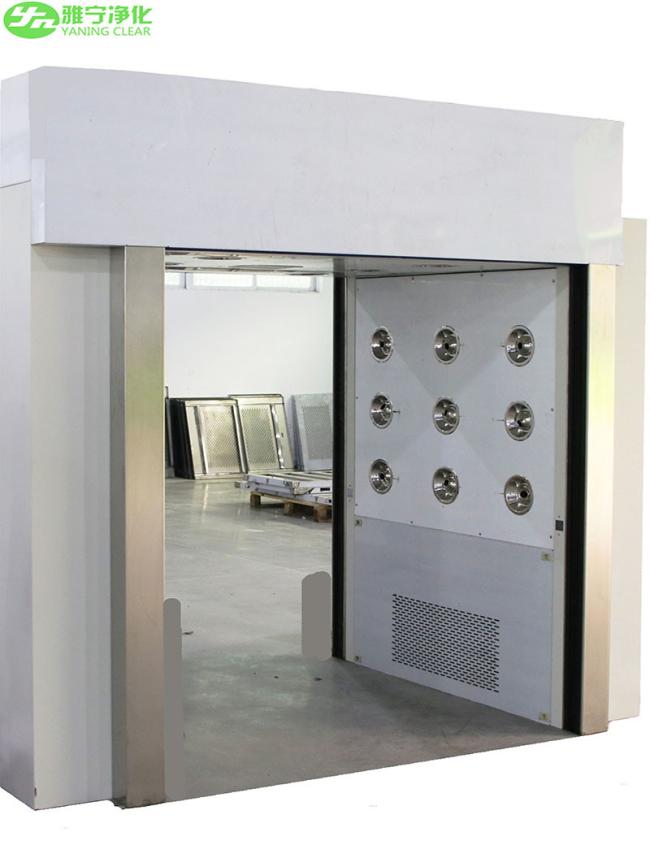

Product Display

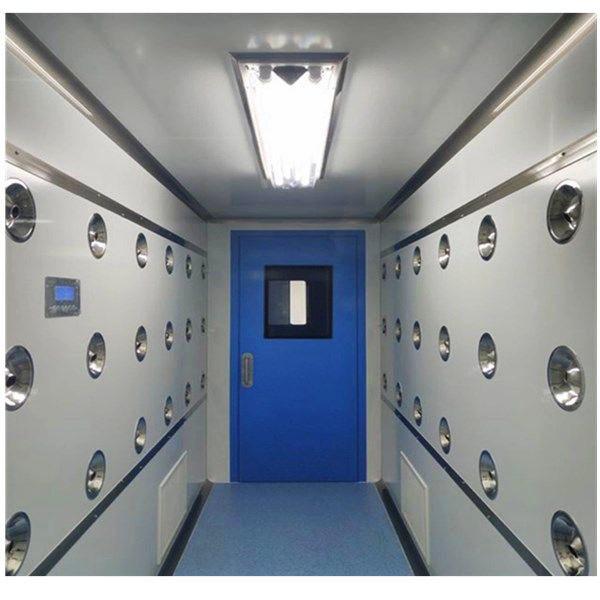

Inside View

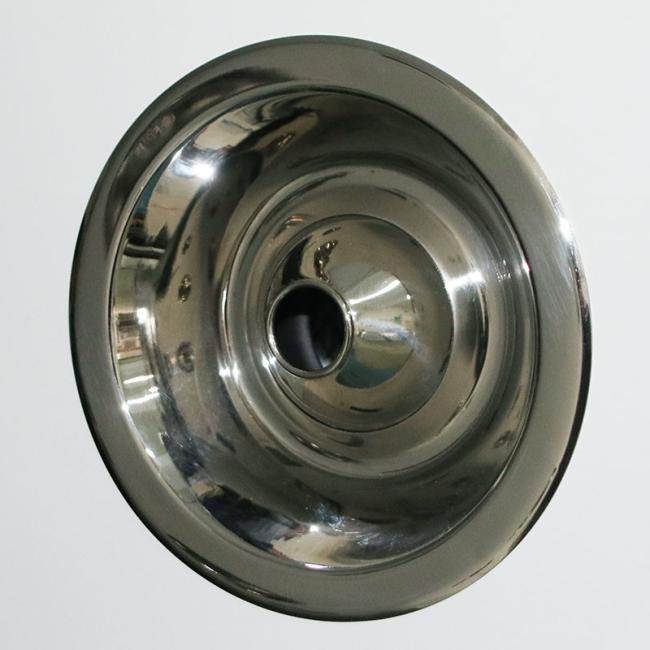

Stainless Nozzle

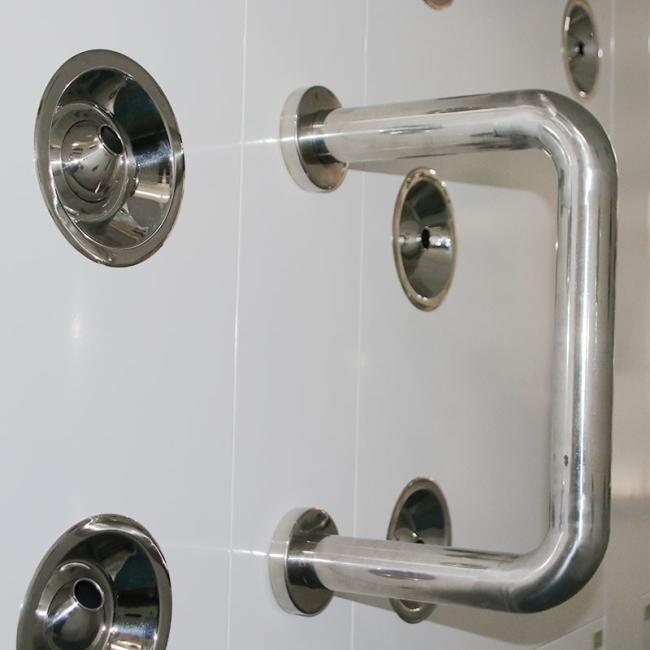

Stainless Handbar
Company Information
Dongguan Yaning Purification Equipment Co., Ltd
YANING was established in 2011, located in Dongguan City, Guangdong. We are a professional manufacturer of air purification equipment as well as purification project solution provider, also an ISO 9001 national certified high-tech enterprise.We have more than 100 models covers several major categories including air shower for person & cargo, clean room, pass box, clean bench, fan filter unit, laminar air flow ceiling etc. Air filter ranged from primary level to medium and high efficiency level in various types. Our products have been widely used in hospital, health care, electronics, medicine, food, precise instruments, aerospace, automobile manufacturing industry and so on.
Welcome to inquire any products or services at any time!
