ISO GMP Dust-Free PVC Wall Panel Modular Clean Room , Laboratory FFU Air Cleaning Equipment Hard Wall Clean Booth
Sterile Clean Room Booth Oem Class 100 Modular Iso 5 Iso 7
Product Description:
Thank you for your interest in YANING, a manufacturing of high-quality clean room products, offering an economical approach to your cleanroom needs. If you’re looking for modular or Portable hardwall or Softwall clean rooms, building an entirely new room, adding to or upgrading an existing room, or if you’re simply looking for a single clean room component, we strive to supply the most cost effective products on the market. Our lines of clean room components and equipment will enable you to outfit your room from Class 100 (ISO 5) to Class 100,000 (ISO 8). Our complete line of cleanroom components will enable you to outfit your room from a single source.
YANING modular clean room design allows it to be used as either a totally freestanding room or it can be used in combination with your existing walls and ceiling. Each room comes completely factory prefabricated for minimal on-site erection time and is totally self-contained with all components factory-finished. A major advantage to the yaning modular cleanroom is its ability to be enlarged or reduced. Wall panels and ceiling grids can easily be added or removed as future needs dictate. The YANING modular clean room is almost 100% reusable.
Clean Room Booth Equipment is a cost-effective solution for creating a sterile environment for industrial, medical and other applications. Made with modular structures and customized sizes, this Cleaning Room Cabin meets the highest standards for safety and hygiene. It is equipped with a fan, filter, LED light and socket to provide efficient air circulation and light for working. The noise level is under 58dB which ensures a quiet working environment. With our Cleaning Room Cabinets, you can rest assured that your production process is safe and clean
Features:
①Product Name: Clean Room Booth
②Structure: Modular
③Humidity: 30%-60%
④Temperature: 18-25℃
⑤Air Velocity: 0.45m/s
⑥Noise Level: ≤58dB
⑦Keywords: Clean Room Booth Equipment, Cleaning Room Cabin, Cleaning Room Cabin
Technical Parameters:
| CLASS A/ISO5/CLASS100 CLEAN ROOM | ||||
| Model | YN001*3 | YN001*4 | YN001*6 | YN001*8 |
| External Size (W×D×H)mm |
2100×3100×2800 | 3100×4100×2800 | 4100×6100×2800 | 6100×8100×2800 |
| Internal Work Zone (W×D×H)mm |
2000×3000×2400 | 3000×4000×2400 | 4000×6000×2400 | 6000×8000×2400 |
| QTY of FFUS | 6PCS | 12PCS | 20PCS | 40PCS |
| AIR VOLUME(m3/h) | 7200 | 14400 | 24000 | 48000 |
| Total Power | 0.7KW | 1.4KW | 2.3KW | 4.6KW |
Features:
(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.
| CLASS B/ISO6/CLASS1000 CLEAN ROOM | ||||
| Model | YN002*4 | YN002*6 | YN002*6 | YN002*8 |
|
External Size (W×D×H)mm |
3100×4100×2800 | 4100×6100×2800 | 6100×6100×2800 | 6100×8100×2800 |
|
Internal Work Zone (W×D×H)mm |
3000×4000×2400 | 4000×6000×2400 | 6000×6000×2400 | 6000×8000×2400 |
| QTY of FFUS | 4PCS | 8PCS | 12PCS | 15PCS |
| AIR VOLUME(m3/h) | 4800 | 9600 | 14400 | 18000 |
| Total Power | 0.5KW | 1KW | 1.4KW | 1.8KW |

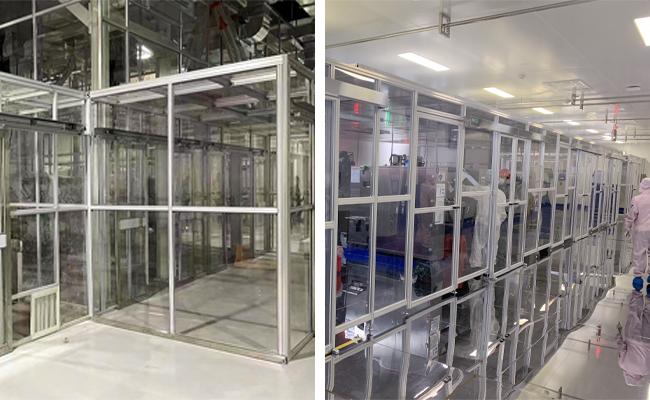

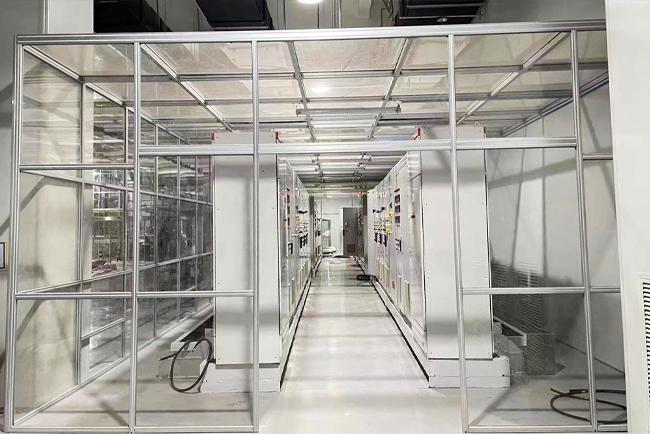

Success case show
YANING Purification has a skilled professional purification equipment manufacturing team, and equipment technicians account for 40% of the total number of employees. There are multiple production workshops for filters, sheet metal, welding, spraying, and assembly. The company adopts advanced numerical control equipment, laser cutting and automatic welding equipment for production. The main products include: air purification equipment, air filters, hospital operating room supporting equipment, air-conditioning ventilation terminal equipment, etc. Products are widely used in electronic technology, medical and health, biomedicine, food, precision instruments, aerospace, automobile manufacturing and other fields, and provide customers with professional clean technology system solutions. The company has established good and stable cooperative relations with many well-known brand enterprises at home and abroad.
The well-known customers the company has served include: CATL, BYD, Luxshare, OPPO, Samsung, Kangchen Pharmaceutical, South China Pharmaceutical Group, Sun Yat-Sen University Affiliated Hospital, Southern Medical University, Tsinghua University and many other enterprises and institutions.
YANING Purification always regards product quality as the life of the enterprise, and strives to provide customers with high-quality products and high-end services. After more than ten years of precipitation and development, the company has gradually formed a strong talent, technology and brand advantages. The diligent and sincere Yaning colleagues are willing to go hand in hand with you to create brilliance!
