YANING Horizontal Vertical Laminar Air Flow Class 100 ISO 5 Cabinet Clean Bench for Clean Room for Lab

Price Negotiable

Price: $800-900/set

MOQ: 1 set

Delivery Time: 7~25 days based on the quantity

Brand: YANING

Product Description

Vertical Laminar /Horizontal Laminar Flow Clean Bench

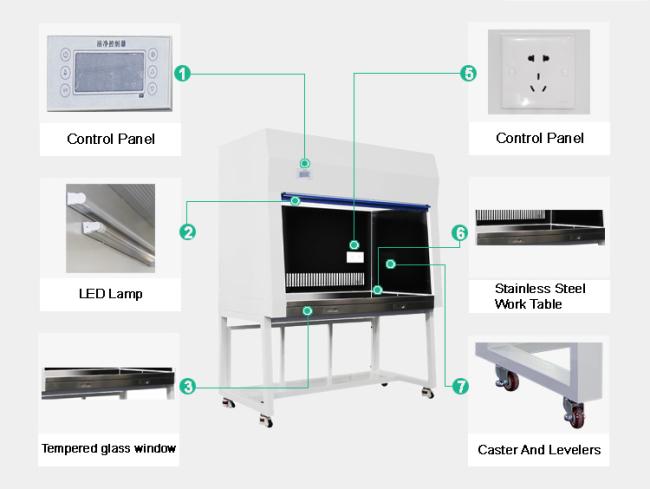

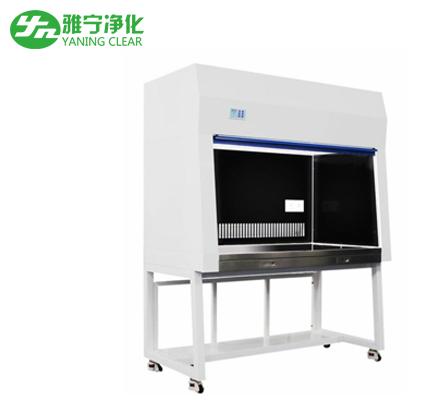

Vertical Laminar Flow Clean Bench

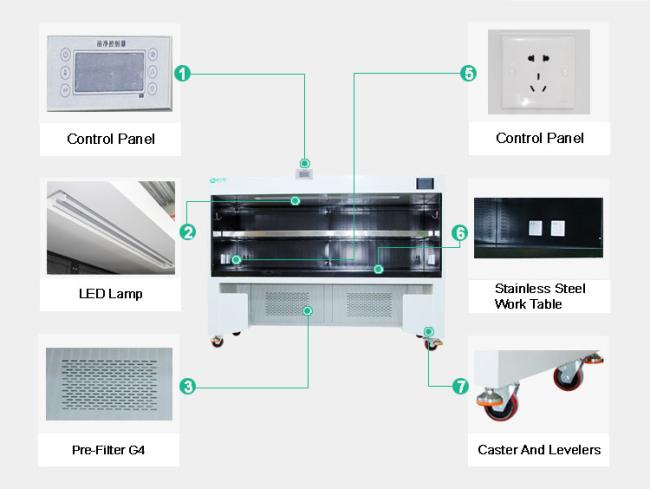

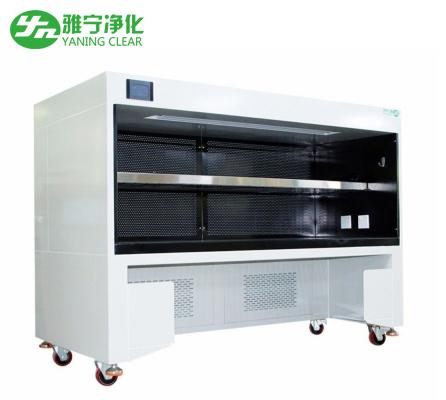

Horizontal Laminar Flow Clean Bench

Product Description

Vertical clean bench /Horizontal clean bench is a working table with the function of air purifying. It is mainly applied to manufacturing areas of precise products which require a specific clean environment. It suck in air through fan, pass through static pressure box and then pass through HEPA filter. The purified air can reach ISO 5 clean class to meet the environment requirement for production.

Configuration Option

①Material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316

②Supply Power: AC 1/3N 220, 380V/50, 60Hz

③Cover:no cover, manual lifting cover

Products Description

Vertical Laminar Flow Clean Bench

Horizontal Laminar Flow Clean Bench

Vertical Laminar Flow Clean Bench
Model	YN-CZT-01	YN-CZT-02	YN-CZT-03
External size W×D×H(mm)	1000×700×1850	1200×700×1850	1500×700×1850
Internal Size W×D×H(mm)	900×650×600	1100×650×600	1400×650×600
HEPA Filter(mm)	800×500×69×1 Pcs	1000×500×69×1 Pcs	1300×500×69×1 Pcs
G4 Pre Filter(mm)	495x495x21x1 Pcs	495x495x21x1 Pcs	495×495×21×1 Pcs

Horizontal Laminar Flow Clean Bench
Model	YN-SPT-01	YN-SPT-02	YN-SPT-03
External size W×D×H(mm)	1000×850×1500	1200×850×1500	1500×850×1500
Internal Size W×D×H(mm)	960×600×600	1160×600×600	1460×600×600
HEPA Filter(mm)	905×585×69×1 Pcs	1105×585×69×1 Pcs	1405×585×69×1 Pcs
G4 Pre Filter(mm)	500×375×21×1Pcs	500×375×21×1 Pcs	745×375×21×1 Pcs

Vertical/Horizontal Laminar Flow Clean Bench
HEPA Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
G4 Pre Filter(mm)	500×375×21×1Pcs	500×375×21×1 Pcs	745×375×21×1 Pcs
Noise	52～62dB(A)	52～62dB(A)	52～62dB(A)
Fan Pressure	260pa	260pa	260pa
Fan Power (W)	200W×1 Pcs	200W×1 Pcs	200W×1 Pcs
LED Lamp Power(W)	12W×1 Pcs	18W×1 Pcs	30W×1 Pcs
Air Velocity(m/s)	0.45m/s±20%
Clean Level	ISO 5
Supply Power	AC 1N 220V/50Hz
Control System	4.3"touch screen,3 stage regulation,light,sterilization
