Any Size Cleanroom Air Shower Unit 304 Stainless Steel Material 62dB Noise

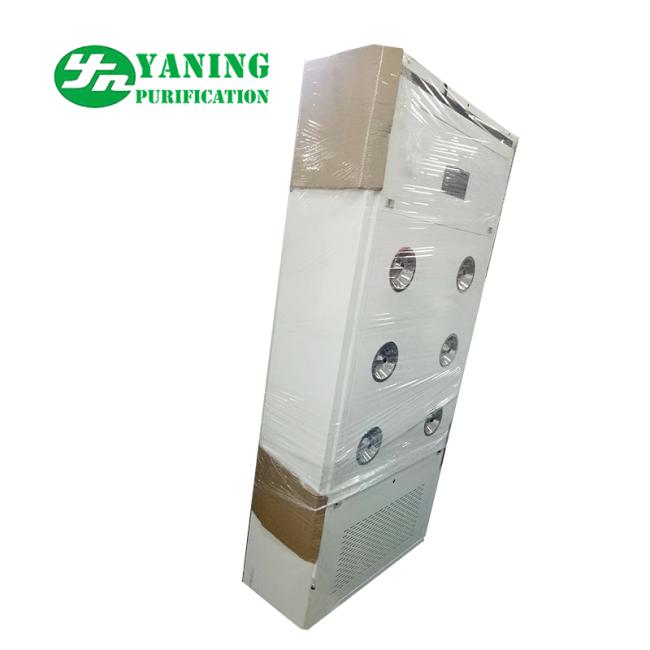

Air shower module / air shower unit for assembly of any size air shower
Modular structure: The air shower chamber has a modular design, which can be assembled into various lengths of air showers according to actual needs. An air shower room is composed of one or more air shower units. For large size air shower equipment, it can be split into multiple modules, making production, transportation and installation particularly convenient and fast.
1. Air shower description
The YN series air shower is an auxiliary equipment for the clean workshop and the assembly clean room. The clean air flow is used to blow off the dust attached to the surface of the person and the object entering the clean workshop, and at the same time, the air brake function is used to prevent the unpurified air from entering the clean area. It is an effective equipment for personal, material purification and prevention of outdoor air intrusion into the clean area. It is versatile and can be used with all clean rooms and clean workshops.
YN series air shower room is a kind of utility model automatic blowing air valve chamber which is made up of our company's foreign technology and foreign electrical control system. It is widely used in microelectronics hospitals, pharmaceuticals, biochemical products, food hygiene, fine chemicals, compact machinery and aerospace production and research units to blow off the dust attached to the surface of the human body and carrying items entering the clean room, while the air shower room It also acts as a gas valve to prevent unpurified air from purifying the area. It is an effective device for personal purification and prevention of outdoor air pollution in clean areas.
2.Air shower classification
1) Single blow type: A side plate has nozzles, suitable for low-demand factories, such as: food packaging or beverage processing, vat water production, etc.
2) Double blow type: Two side plates have nozzles, suitable for domestic food processing companies, such as: cake making, nuts and other small-scale enterprises
3) Three-blow type: There are nozzles on both side plates and on the top, suitable for export processing companies, or high-precision instruments and other demanding industries.
3. Air shower unit advantages
1). It adopts fully automatic control operation, two-door electronic interlocking, automatic induction shower, and double door lock when blowing.
2). Cold plate spray series, using multi-layer pickling technology, electrostatic dustless spray treatment.
3). Use stainless steel handle, thick stainless steel base plate, stainless steel nozzle as basic configuration.
4). It adopts digital display blowing time, air shower time is 0~99s adjustable, and shows the time of air shower.
5). The wind speed of the blower system designed with the new design concept can reach a super wind speed of 25m/s~32m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of complete dust removal.
4. Air shower unit parameter
| Model | YN-1300-P1 | YN-1300-PQ1 | YN-1300-P2 | YN-1300-P3 |
|
Outer Dimensions W×D×H(mm) |
1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
|
Inner Dimensions W1×D1×H1(mm) |
800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
| Speed (m/s) | 25~27 | |||
| Nozzle No. | 12 | 18 | 24 | 36 |
| Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
| Door: 5mm glass and built-in automatic door closer | ||||
| Lighting | LED, built-in type | |||
| Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
| HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
| Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
| Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | |||
5.Air shower details photos
