L Type Door Corner Stainless Steel Air Shower Customize Size Easy To Clean
Stainless steel L type door corner air shower room customize size
1. Corner air shower description
The L turn corner air shower is a personal purification device used by the operator when entering the clean room. It uses high-speed clean air to blow away the dirt that enters the body of the person. The nozzles can be adjusted to effectively remove dust from the human body and prevent outside contamination from entering the clean area.
It can also be applied to the blowing of large cargo. The air shower is clean equipment for clean kitchens and prefabricated clean rooms. It is used to blow away the dust on the surfaces of the human body and the carrying articles that enter the purification plant. At the same time, the air shower also plays a role in buffering air locks and preventing unpurified air. Entering the clean area is an effective device for purifying the human body and preventing external air pollution in the clean area.
Dongguan Yaning Purification Industrial Co.,Limited is a professional R&D and production purification equipment manufacturer, and the products it produces have always been praised by new and old customers.
2. Corner air shower room features
1). The internal space is unchanged, and the floor space is small, which can save the use area.
2). the motor power is small, the design of this air shower room is to enter the air shower room to blow, go out to the door without blowing, infrared photoelectric automatic sensor switch to control the blowing, to avoid air shower room no air blowing, multiple energy saving.
3). Adopting the module design scheme, the structure of the equipment is reasonable. The company can relocate and reassemble and use it according to the future production needs.
4). The failure rate is low. Every time the personnel enters and exits, the electric lock is activated. The air shower room electric lock is the place where the air shower chamber applauds frequently. The air shower room adopts advanced technology, close to induction, photoelectric switch control electric lock, electric lock and lock head are all made of solid stainless steel. Made, durable! Extend the service life and reduce air shower failure.
5). with a beautiful appearance, long life, easy to clean, in line with the clean room principle and other design.
3. Air shower Parameter
| Product name | A single blow | A double blow | Double double blow | Air shower |
| Outside Dimension | 1290*1000*2050 | 1290*1000*2050 | 1290*2000*2050 | 1590*5000*2050 |
| Air Shower Aera(mm) | 790*860*1910 | 790*860*1910 | 790*1860*1910 | 790*4860*1910 |
| Capacity: | 1-2People | 1-2People | 2-4People | The passage |
| Number Of Nozzle | 6PCS | 12PCS | 24PCS | 72PCS |
| The wind speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥20m/s |
| Noise | <62 | <62 | <62 | <62 |
| HEPA Filter | 610*610*120*1pcs | 610*610*120*2pcs | 610*610*120*4pcs | 610*610*120*8pcs |
| Efficiency | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 |
| The power of fan | 750*1pcs | 750*2pcs | 750*4pcs | 750*8pcs |
| Fluorescent lamp power | 20*1pcs | 20*1pcs | 20*2pcs | 40*4pcs |
| Power Supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
380V/50HZ |

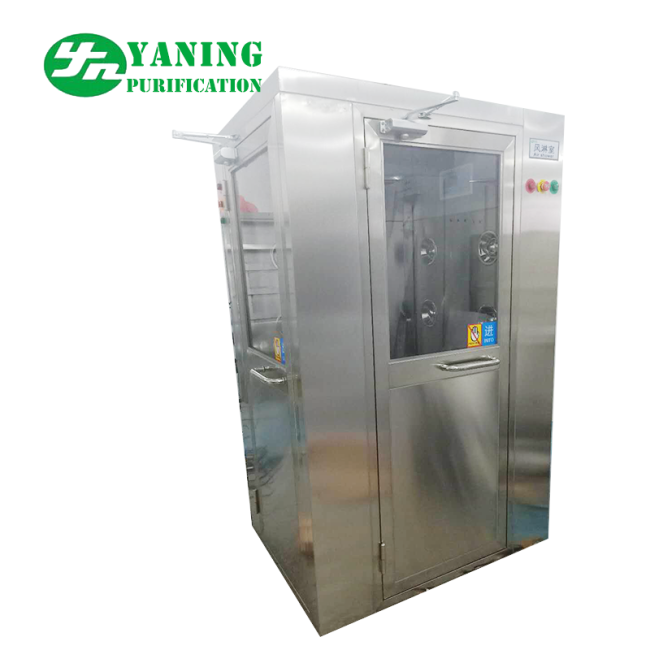

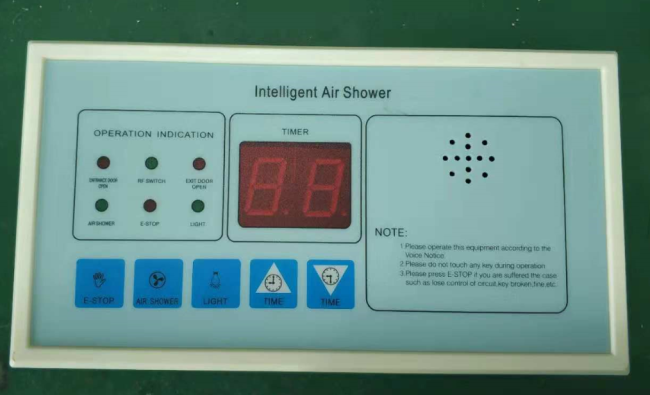

4.L turn air shower features details photos
