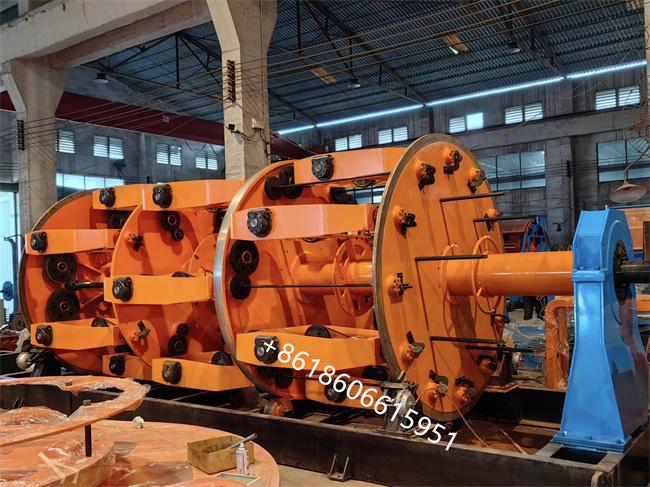

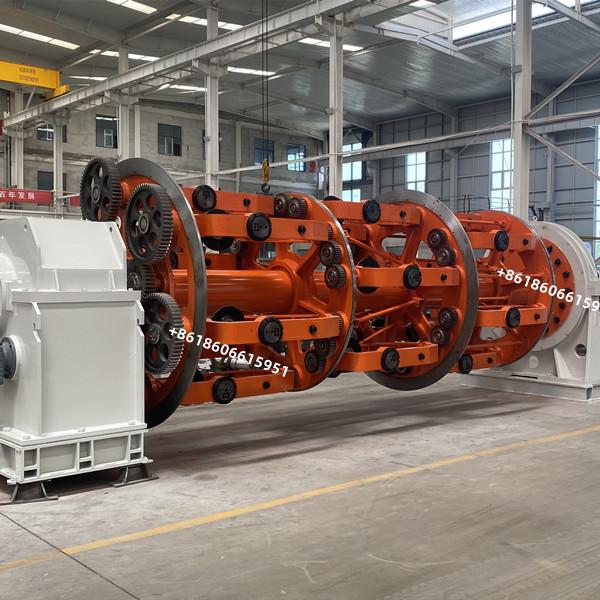

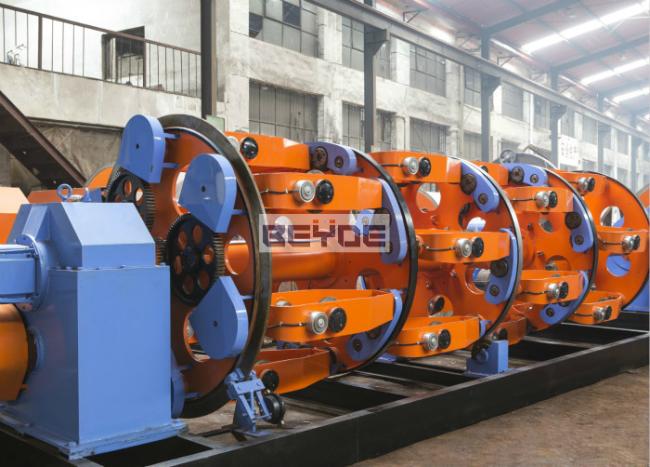

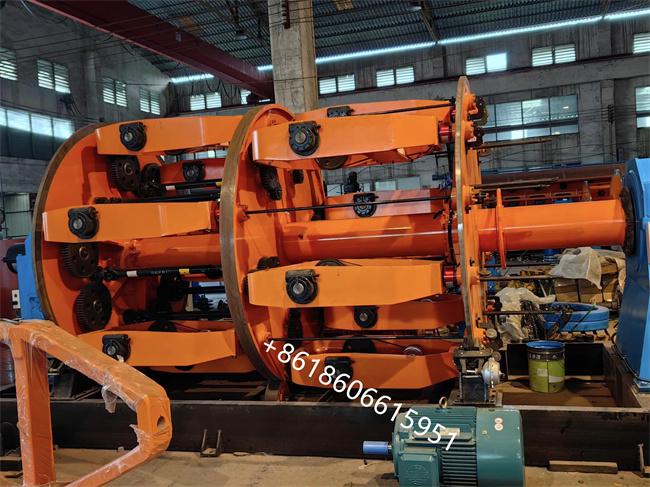

High Speed Plenatary Type Cable Stranding Machine Laying Up With Steel Wire Armoring
High Speed Plenatary Type Cable Stranding Laying Up Machine With Steel Wire Armoring
1.Application:
The equipment is mainly used for the laying of insulated core wires, such as copper, aluminum conductor, control cable, signal cable and small-size plastic cable, etc.
The equipment adopt of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control.
The synchronization performance deviation does not exceed 3% in the states of start, normal operation, slow stop, emergency stop, etc., to ensure the stability of the twist pitch.
Equipped with an automatic wire-breaking stop machine founction, it can stop and brake in time when the wire is broken or the wire is finished.
The whole machine is operated and controlled by the HMI + color touch screen, and the electrical system is advanced.
2.Technical parameter of 630/1+6+12
| Input wire diameter | Copper Ø 1.5-Ø 5.0mm |
| Aluminum Ø 1.8-Ø 5.0mm | |
| Insulated wire Ø2.0-Ø 8.0mm | |
| Max stranding OD | Ø45mm |
| Max diameter of center hole in stranding cage | Ø60mm |
| Max rotation speed | 70 r/min |
| Stranding pitch | 63 ~ 700mm (Electric control stepless adjustable, customized) |
| Max line speed | 35m/min |
| 6 Reels motor power | 37KW(AC) |
| 12 bobbins motor power | 45KW(AC) |
| 18 Reels motor power | 55KW(AC) |
| Capstan motor power | 45KW(AC) |
| Take-up motor power | 5.5KW(AC) |
| Pay-off reel size in stranding cage | PND630 |
| Double capstan wheel diameter | Ø 1600mm |
| Central pay-off reel size | PND500-PND630 |
| Take-up reel size | PN1000-PN2000 |
| Machine center high | 1000mm |
3. Main brand of parts
| Bearing brand | (HRB.) |
| Low voltage appliance brand | (SCHNEIDER) |
| Brand of pneumatic component | (AIRTAC) |
| Brand of main drive motor | (SHENGLI) |
| Take-up motor brand | (SHENGLI) |
| Frequency conversion controller | (INOVANCE) |
| PLC | (SIEMENS S7-200smart) |
| Touch screen | (SIEMENS KTP1200) |
4.Electrical controlsystem
- The electric control part is composed of power cabinet, operation cabinet, touch screen, etc., and there are corresponding control buttons on each unit
- The electrical cabinet is designed with good mechanical properties and dustproof performance, and is equipped with a proper amount of forced ventilation fans.
- The power supply is: 3-wire 5-phase system, 380V (±10%) 50HZ.
- Total installed power: 240KW
- Motor protection function: The electrical control circuit is designed with: phase loss, overload, and overheat protection functions to prevent motor damage.
- The alarm fault information can be queried on the touch screen, and it has the functions of alarm fault and production process data storage.
- Operating system: It can view and modify various parameter settings in the production process in real time, such as pitch, production speed, current working status and other information.
- All drive motors are designed with encoders and the encoder feedback operates in a closed loop control system.
- The unit adopts PLC unified coordination control operation. It adopts touch screen HMI to operate. Simple and convenient operation.
