New Model 500 High Speed Tubular Stranding Machine-JGG-500-1+6
Price:
Negotiable
MOQ:
1 set
Delivery Time:
90 days
Brand:
Beyde
Product Description

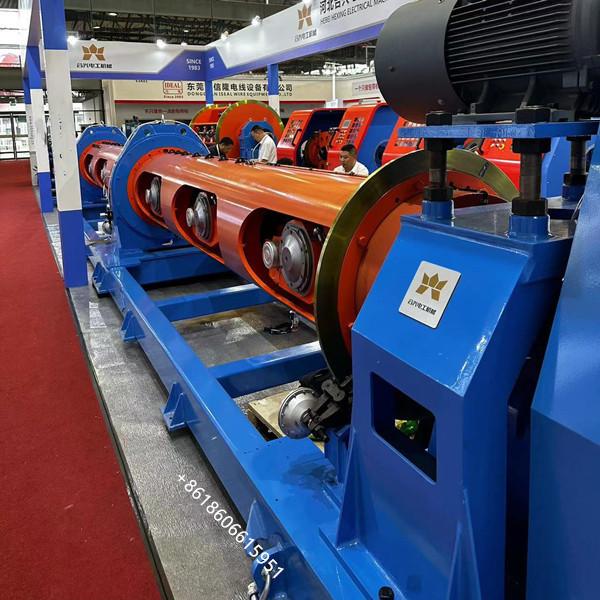

New Model 500 High Speed Tubular Stranding machine-JGG-500-1+6
What do you need a tubular stranding machine for?
In tubular stranding, single cores are twisted into a bundle of wires. With this, additional cores or conductor bunches are wound in several layers around a core material that is routed through the machine axis. The structure is based on the specification required for the respective cable type or application.
Tubular Type Stranding Machine is suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire with 100% back twist movement.

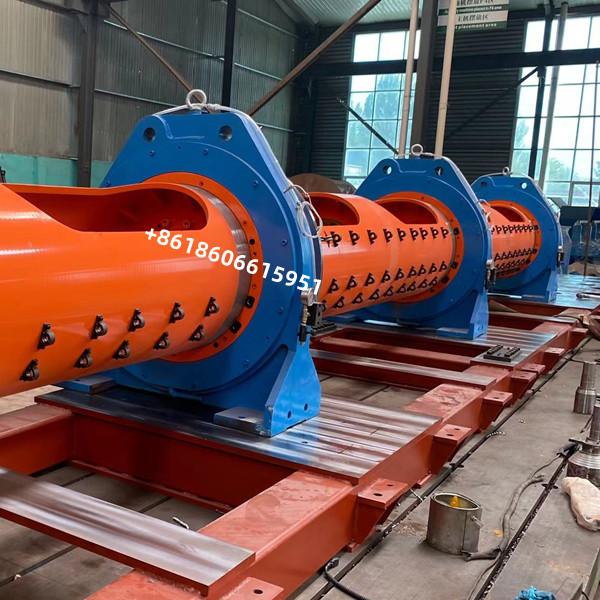

Rotating axis tube is supported by big bearings, it is suitable for high speed rotation.
The wire tension control is done through band type brakes.
Driven by independently motor.
The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.
The electromagnetic tension is used for setting out, with the tension of 10kg. The machine is stopped in the cradle for adjustment and installed on the manual operation surface, which is convenient for micro adjustment and is not easy to fail.
loading method: end shaft structure, mechanical locking, safe and stable, not easy to be thrown out, convenient loading and unloading line plate, line plate is installed into cradle with the help of crown block in workshop.
Technical parameters:
| Model | JLG 500 | JLG 630 |
| Single wire diameter | Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
| Max finish wire diameter | Ø 21 mm | Ø 21 mm |
| Max rotation speed | 500 rpm | 500 rpm |
| Stranding pitch | 40-448 | 40-448 |
| Max line speed | 150 m/min | 150 m/min |
| Bobbin specification | PND500 | PND630 |
| Capstan wheel | 1250 mm | 1250 mm |
| Take-up bobbin | PN1600 | PN1600 |
| Height of center | 850 mm | 850 mm |
Component:

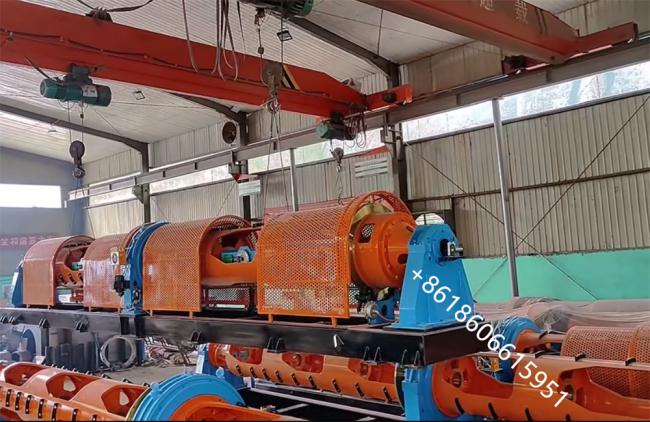

Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Main Character:
1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.
2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.
3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.
4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.
