High Power Wire Twisting Machine For AAAC Wire Stranding Equipment
High Power Wire Twisting Machine For AAAC Wire Stranding Equipment
Product Description:

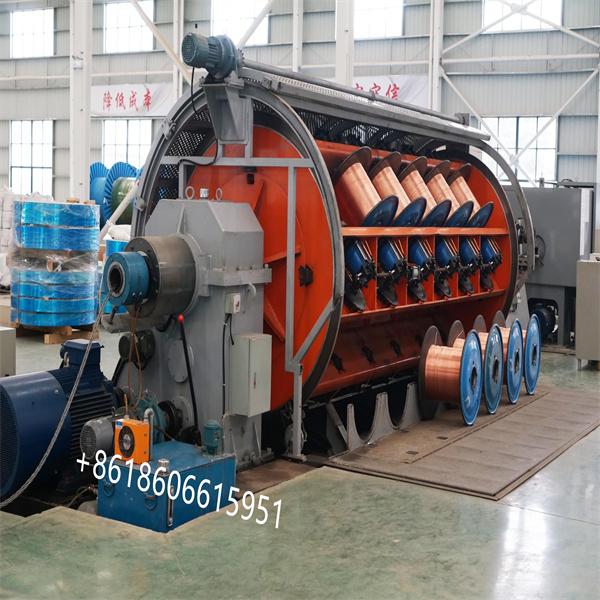

Specialises in the design and manufacture of Rigid Stranding Machines suitable for the production of superior quality stranded conductor for low, medium and extra high voltage (EHV) power cables
1. Highly compacted conductor (by die / roll)
2. Prespiralled / straight sector shaped / Milliken conductor
3. Overhead conductor ACSR/AAAC/AAC
4. Pre-shaped wire (TW) overhead conductor
5. Copper screening of power cables
6. Steel wire / strip armouring
7. Laying-up of control cables
Features:
- Product Name: Rigid stranding machine
- Operation: full automatic
- Voltage: 460V/380V
- Capacity: High Capacity
- Material: Steel,Al, Cu.
Technical Parameters:
| Input wire diameter | Copper Ø 1.5－Ø 5.0mm | |
| Aluminum Ø 1.8－Ø 5.0mm | ||
| Max stranding OD | Ø 45mm | |
| Max rotation speed | 6 bobbins | 230r/min( |
| 12bobbins | 198r/min( | |
| 24 bobbins | 158r/min | |
| Stranding cage motor power | 6 bobbins | 75KW(AC) |
| 18 bobbins | 75KW(AC) | |
| 24 bobbins | 75KW(AC) | |
| Stranding pitch(set one PLC) | Stepless adjustable | |
| Traction line speed | Max 61m/min | |
| Capstan motor power75 | KW(AC) | |
| Pay-off bobbin size in cage | PND630 | |
| Forceful dual wheel capstan | Ø 2000mm | |
| Central pay-off bobbin size | PND500-630 | |
| Take-up bobbin reel size | PN1250-PN2500 | |
| Machine center high | 1000mm | |
Applications:
Customization for brand:
| Bearing brand | (HRB) |
| Low voltage appliance brand | (Schneider) |
| Brand of pneumatic component | (AIRTAC) |
| Brand of main drive motor | (Jinaghuai) |
| Brand of take-up motor | (Jianghuai) |
| Brand of inverter | (Inovance) |
| Touch screen | (Siemens) |
| PLC | (Siemens) |
| Bolt grade | 8.8 class |
Support and Services:
BEYDE Rigid stranding Machine Technical Support and Service
We offer technical support and service for our Rigid stranding Machine. Our team of engineers and technicians have extensive experience in the field and are available to answer your questions and help troubleshoot any issues you may have. We provide phone, email, and on-site support for our customers.
Our technical support team can provide assistance with installation, commissioning, system setup, and maintenance. We are also able to provide spare parts and replacement components for our Rigid stranding Machine. We offer comprehensive maintenance and repair services, as well as preventative maintenance services.
We are committed to providing the highest level of customer service and support for our Rigid stranding Machine. If you have any questions or would like to learn more about our technical support and service options, please do not hesitate to contact us.
Packing and Shipping:
When shipping a Rigid stranding Machine, the following steps should be taken to ensure the safety and integrity of the product:
- Remove all tools and accessories from the machine
- Ensure that all moving parts are securely locked in place
- Clean the machine thoroughly and inspect for any damage
- Wrap the machine in protective packaging material such as packing foam, bubble wrap, or shrink wrap
- Place the machine in a shipping container with adequate cushioning material
- Securely tape the container shut and label with the appropriate shipping information
- Send the package to the designated recipient.
