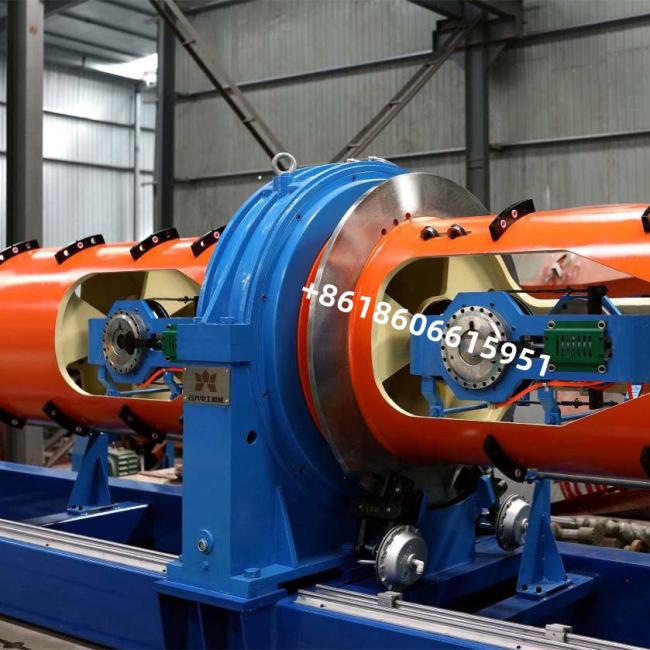

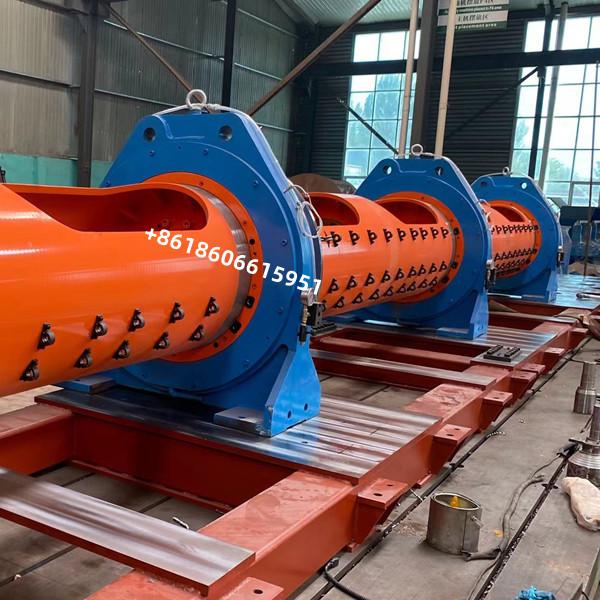

Powerful Tubular Type Stranding Machine Wire & Cable Making Equipment 800/6
Powerful Tubular Type Stranding Machine Wire & Cable Making Equipment 800/6
1. Application
This kind of machine is used to make copper stranded wire,steel-core aluminium stranding wire and steel rope. It also can be used to stranded steel wire and insuated wire.
1.1 Copper/Aluminum/Steel Wire Stranding
1.2 Steel Rope Stranding
1.3 OPGW Cables Stranding
2. Technical parameters
|
Model (Tubular Stranding Machine)
|
JGG-400 | JGG-500 | JGG-630 | |
| Diameter of single wire |
Copper
|
φ1.2-2.6 mm | φ1.4-4 mm | φ2-7 mm |
|
Aluminum
|
φ1.8-2.6 mm | φ1.8-4 mm | φ2-7 mm | |
|
Maximum stranded conductor OD
|
φ7 mm | φ10 mm | φ12 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm |
| 12 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm | |
| 18 Bobbin Stranding Cage | 44-334 mm | 44-338 mm | 82-620 mm | |
| Rotate Speed | 6 Bobbin Stranding Cage | 600 r/min | 600 r/min | 400 r/min |
| 12 Bobbin Stranding Cage | 600 r/min | 500 r/min | 300 r/min | |
| 18 Bobbin Stranding Cage | 450 r/min | 400 r/min | 230 r/min | |
| Capstan | Capstan Wheel Diameter | φ600 mm | φ800 mm | φ1000 mm |
|
Maximum Haul-off Force
|
3T | 5T | 5T | |
|
Motor Power
|
22 KW | 30 KW | 37 KW | |
|
Bobbin Size
|
400 mm | 500 mm | 630 mm | |
|
Center Payoff Bobbin
|
400 mm | 500 mm | 630 mm | |
|
Take-up Bobbin
|
1250 mm | 1600 mm | 2000 mm | |
Components
No. Items Quantity
1 Φ 630mm Manual pay-off stand 1 Set
2 Φ 630/6 Bobbins cage 1 Set
3 Wire-stranded mould stand 1 Set
4 Meter counter 1 Set
5 Φ 120mm Double capstan wheels 1 Set
6 Φ 1600mm Column type take-up with traverse 1 Set
7 Transmission system 1 Set
8 Electric control system 1 Set
9 Safe cover 1 Set
