Customizable Cable Manufacturing Machine 630/1+18 For Copper Wire Shielding And Screening
Price:
Negotiable
MOQ:
1 set
Delivery Time:
90 days
Brand:
Beyde
Product Description
Customizable Cable Manufacturing Machine 630/1+18 For Copper Wire Shielding And Screening
1. Application:This machine is mainly used to copper wire shielding.
2. Overview of equipment composition
The equipment is composed of PLC program control+touch screen+variable frequency speed control+pneumatic control. The synchronous performance deviation of the equipment from startup, normal operation, slow shutdown, emergency stop and other states shall not exceed 3% to ensure stable stranding. The electric control system is advanced, easy to operate and reliable.
3.Main Parameter:
- Input wire diameter:Ø0.4－2.0mm(8 wire/ bobbins)
- Max stranding OD:Ø80mm
- Max rotation speed of cage:120r/min
- Stranding cage motor power:55KW(AC)
- Stranding pitch(set one PLC):80-600mm (Stepless adjustable)
- Linear speed 40m/min max
- Haul-off motor power:18.5KW(AC)
- Rotation speed of 600 concentric type taping machine :750r/min
- Motor power of 600 concentrictype taping machine:7.5KW(SERVO)
- Pitch of 600 concentrictype taping machine: 0-200mm (Stepless adjustable)
- Pay-off bobbin size in cage:PND630
- Main Caterpillar Max pulling force:2500kg
- Central pay-off bobbin size:PN1600-PN3150(Customer provide drawing)
- Take-up bobbin size:PN1600-PN3150(Customer provide drawing)
- Machine center high:1000mm
4.Main components:
- Ø3150mmPortal typePay-off
- Well type guide wire rack
- Ø600 concentrictype taping machine

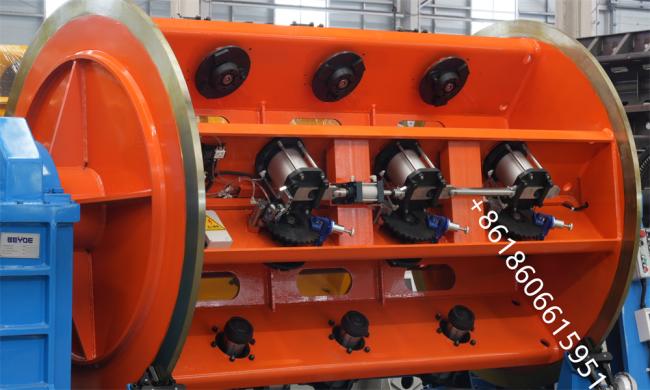

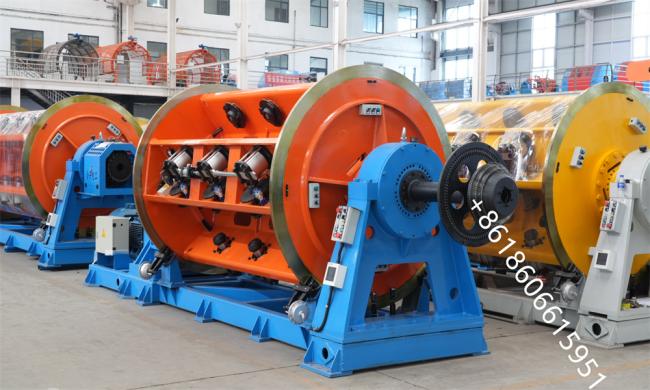

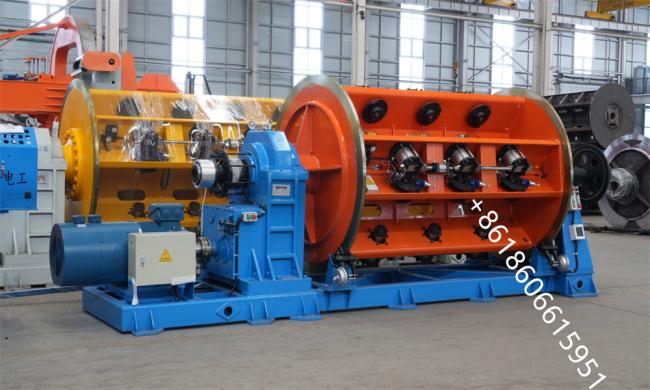

- 12bobbins strand cage
- 12bobbin Concentrated loading bobbin device

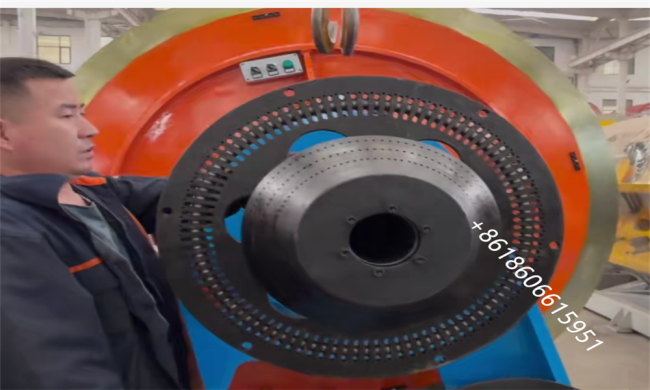

- 96 head Pre-forming head (Integrated with host)
- Close wire die holder
- Ø600 concentrictype taping machine
- Mechanic&Electronic Meter counter
- 2500kgMainPneumatic caterpillar
- Ø3150mmportal type take-up with traverse wire
- Electric control cabinet
- Safety protection fence and cover
5. Electric control system:
- The power supply: three-phase, five wire system: 380V (± 10%) 60Hz total 120 KW
- Frequency converter fault alarm.
- Overload protection and power supply protection of winding and arranging lines.
- Air press lack protection.
- Break wire protection
- Equipped with Ethernet interface for data uploading.
- Alarm fault information can be queried on the touch screen, with alarm fault and production process data storage functions. Historical operation information can be set to require personnel with management permissions to delete.
- Operating system: It can view and modify various parameter settings during the production process in real-time, such as pitch, production speed, current working status, and other information.
6.Safety protection devices
- 12-bobbincage:double-sided wall safety net (porous plate material)
- 5Taping machine: sheet metal push-pull safety cover
- Sheet metal protective cover for couplings, transmission and other parts
7. Operating direction: Equipment operation direction: Right head machine, facing device operation, left release line, right take-up line, or customized
8. Main Brand
| Bearing brand | (SKF/NSK) |
| Low voltage appliance brand | (Schneider) |
| Brand of pneumatic component | (AIRTAC) |
| Brand of main drive motor | (SIEMENS) |
| Brand of take-up motor | (SIEMENS) |
| Frequency conversion controller | (SIEMENS) |
| Touch screen | (Siemens) |
| PLC | (Siemens) |
| Servo motor | (Zhima) |
