Professional JPD2500 Drum Twister Machine For Large Conductor Stranding Sectorial Cables
Professional JPD2500 Drum Twister Machine for Large Conductor Stranding For Sectorial Cables
- Application:
This machine is mainly used for the stranding of large cross-section and long power cables and split conductors, as well as the wrapping of non-metallic tape.
- Main technical parameter:
| 2.1 | Conductor shape | Round and sector,milliken |
| 2.2 | Stranding conductor section | 300mm2 Max |
| 2.3 | Max laying OD | Ø100mm |
| 2.4 | Laying pitch range | 400-5000mm |
| 2.5 | Pay-off rotation speed | 50r/min |
| 2.6 | Drum take-up rotation speed | 50r/min |
| 2.7 | Rotation haul-off linear speed | 50m/min |
| 2.8 | Max haul-off force | 4000kg |
| 2.9 | Non-metallic Taping max rotation speed | 600r/min |
| 2.10 | Non-metallic Taping pitch | 0-200mm(Step-less adjustable) |
| 2.11 | Steel tape armoring max rotation speed | 500r/min |
| 2.12 | Steel tape armoring pitch | 0-200mm(Step-less adjustable) |
| 2.13 | Ø1600mm Rotating Pay-off bobbin size | PN1250-PN1600 |
| 2.14 | Ø2240mm Center Rotating Pay-off bobbin size | PN2000-PN2240 |
| 2.15 | Drum type Take-up bobbin size | PN2000-PN2240 |
| 2.16 | Filling rope pay-off specification | Ø(240-520)× 40 × (240-420)mm |
| Ø800×Ø52×(320-500)mm | ||
| 2.17 | Steel wire armouring pay-off qty | 72 wire |
| 2.18 | Ø1600mm Rotating Pay-off Motor power | 15KW*4 (AC motor) |
| 2.19 | Ø2240mm Rotating center Pay-off Motor power | 30KW (AC motor) |
| 2.20 | Non-metallic Taping Motor power | 11KW(AC motor) |
| 2.21 | Steel tape armoring Motor power | 22KW(AC motor) |
| 2.22 | Rotation caterpillar motor power | 15kw*2 (AC v motor) |
| 2.23 | Drum type Take-up motor power | 45KW(AC motor) |
| 2.24 | Machine center high | 1000mm |
4.The main technical parameters:

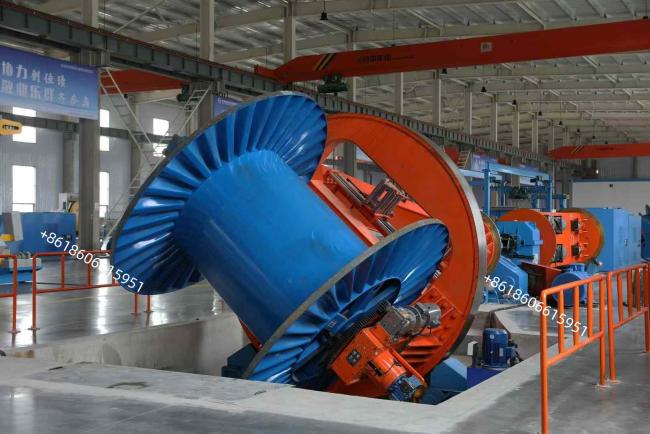

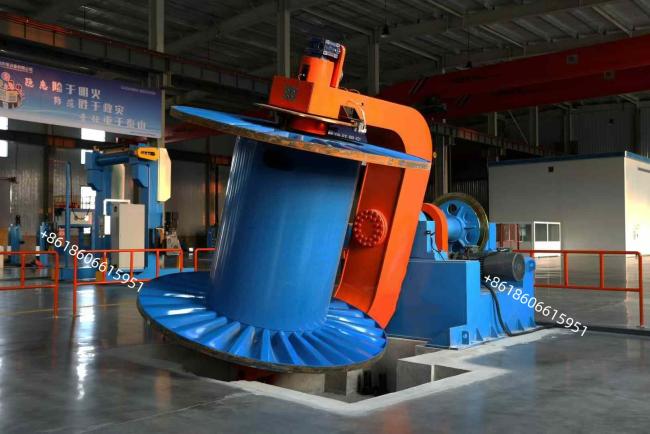

4.1 Ø1600mm Rotation pay-off:
4.1.1. Applicable bobbin: PN1250～PN1600
4.1.2. Applicable bobbin width: 950-1180mm
4.1.3. Max loading load: 6T
4.1.4. Max rotation speed: 50r/min
4.1.5. Motor power: 18.5kW(AC)
4.1.6. Pay-off tension: 10-150kg
4.1.7. Pay-off stand is of fork type and cantilever type, driven by individual motor. It could rotate synchronically with take up, or to be locked, Manual jogging is also available, The motor has a built-in encoder.
4.1.8. Driving mode: driven by an independent motor through a synchronous belt, which can rotate synchronously with the take-up or be fixed and manually controlled.
4.1.9. Tension form: pneumatically controlled and adjustable any time, and the tension can be adjusted arbitrarily in the parking and running states.
4.1.10. Clamping: shaftless electric tightening and loosening bobbin, driven by a separate motor, with self-locking function to prevent the wire drum from being thrown out
4.1.11. Braking method: a flat air press brake
4.1.12. Operation cabinet: Each pay-off rack is equipped with an operation cabinet, which can control jog, rotation, stop, etc.
3. Main Components
| 3.1 | Ø1600mm Rotation pay-off | 4 Units |
| 3.2 | Ø2240mm Center fork rotation pay-off | 1 Units |
| 3.3 | Guide wire stand | 6 Units |
| 3.4 | 3x3 Rollers passing wire stand | 1 Unit |
| 3.5 | 5x5 Rollers passing wire stand | 1 Unit |
| 3.6 | Filling rope pay-off stand | 2 Units |
| 3.7 | 5 Wire Sector collection device | 1 Unit |
| 3.8 | Assembling wire board | 1 Unit |
| 3.9 | Three row closing wire die holder | 1 Unit |
| 3.10 | Ø600 Tangential non-metaillic taping unit | 1 Unit |
| 3.11 | Ø800 Tangential Steel tape armoring unit | 1 Unit |
| 3.12 | 36+36 Steel wire armoring pay-off | 2 Unit |
| 3.13 | 4000kg Rotation pneumatic Caterpillar | 1 Unit |
| 3.14 | 22400mm Drum type take-up and traverse | 1 Unit |
| 3.15 | Ø2240 Hydraulic lifting bobbin platform | 1 Unit |
| 3.16 | Safety fence | 1 Unit |
| 3.17 | Electrical control system | 1 Unit |
Mechanical and electrical accessories
| 6.1 | Bearing brand | HBR |
| 6.2 | Main drive motor | JIANGHUAI |
| 6.3 | Touch screen | SIEMENS |
| 6.4 | PLC | SIEMENS |
| 6.5 | Inverter brand | INOVANCE |
| 6.6 | Low voltage electrical components | SCHNEIDER |
| 6.7 | Pneumatic component | AIRTAC |
7. Document with machine
| 7.1 | Operation and maintenance manual | 1 pc |
| 7.2 | Foundation diagram | 1 pc |
| 7.3 | Overall diagram | 1 pc |
| 7.4 | Electrical drawing | 1 pc |
| 7.5 | Air circuit layout | 1 pc |
| 7.6 | Lubrication diagram | 1 pc |
| 7.7 | Electrical panel diagram | 1 pc |
| 7.8 | AC driver instructions | 1 pc |
| 7.9 | Bearing list | 1 pc |
8. Operating direction: Right hand, i.e. facing the equipment, pay-off on the left and take-up on the right
- Equipment Color:
- Equipment body: RAL5015 sky blue
- Rotating part: RAL2004 pure orange
- Protective cover: RAL2004 pure orange
- Electric control cabinet: RAL7032 pebble gray
10. Cable & wire and wiring work:
- The cable & wire and wiring work inside machine part is supplied by the supplier; the cable & wire and wiring work inside electrical cabinet is supplied by the supplier
