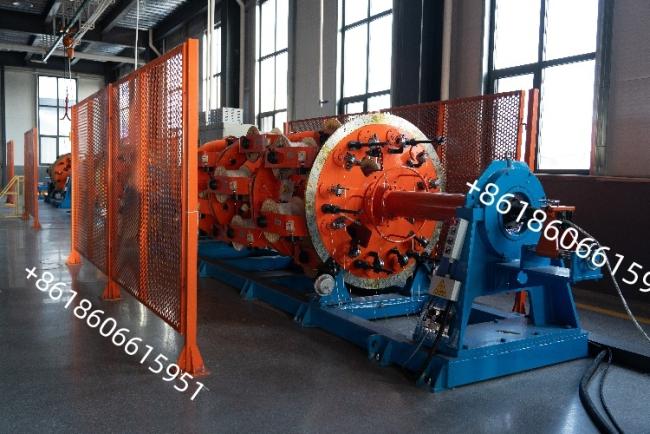

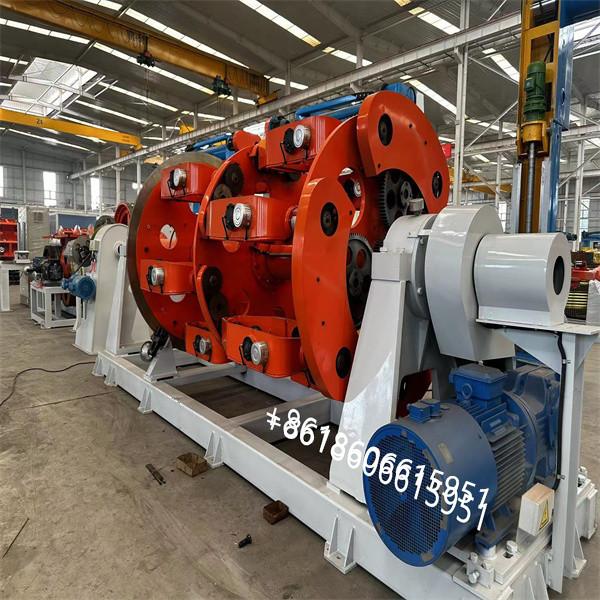

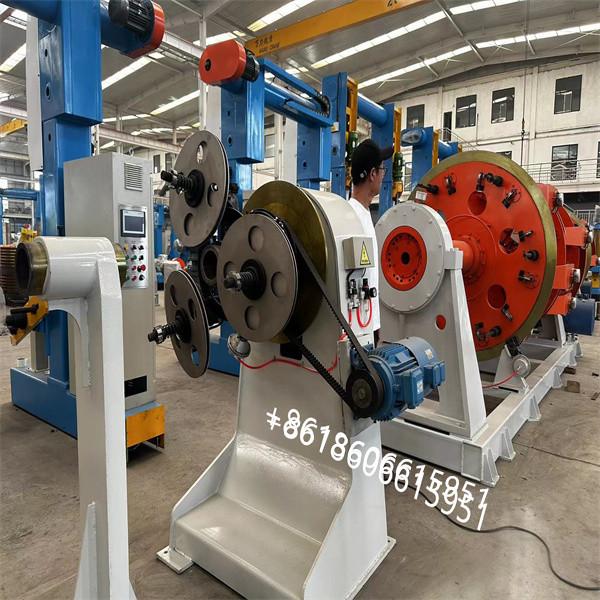

Copper Cable Making Machinery Copper Wire Planetary Stranding Machine with Advanced Tension Control
Copper Wire and Cable Making Machinery Copper Wire Planetary Stranding Machine with Advanced Tension Control
| Model Main Specification | JLY400 | JLY500 | JLY630 |
| Single wire diameter | Φ1.2-Φ5mm | Φ1.5-Φ5mm | Φ2.0-Φ8.0mm |
| Max stranded diameter | Φ50mm | Φ45mm | Φ60mm |
| RPM | 40-94r/min | 33-80r/min | 22-70r/min |
| Stranding pitch | 25-1005mm | 45-1473mm | 76-1330mm |
| Line speed | 39m/min | 50m/min | 48m/min |
| Pay off drum size in cage | PN400mm | PN500mm | PN630mm |
| Central pay off drum size | PN400-630mm | PN400-630mm | PN400-630mm |
| Take up drum size | PN1250-2000mm | PN1600-2000mm | PN1600-2000mm |
Application of the machine
This machine is widely used in a variety of multi-cores control cables and armored. The cross-section of the wire core is 1.5-6mm2.
1. High rigid, high speed, and low inertia.
2.100% Back twist design insure that no abrasion damage while stranding.
3. Most advanced emergency stop device.
4. Various PLC electrics are optional.
5. Constant Bobbin back tension is achieved by a positive device & Single bobbin rotation is electronically sensed for control the required tension. In addition, a magnetic tension control system is optional which is cheaper than the pneumatic mode.
5. Planetary stranding machine is qualified for any wire/cable processing job
