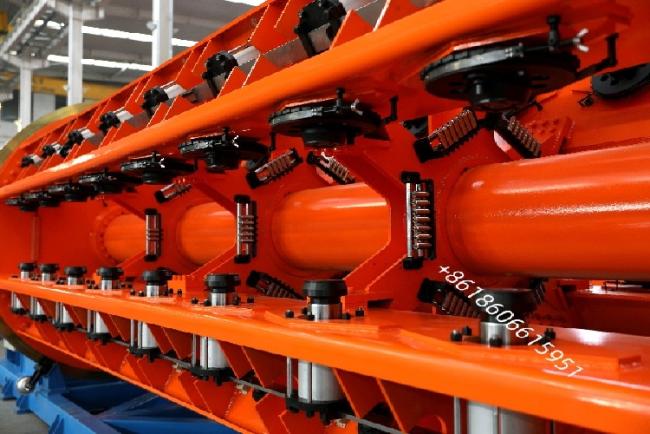

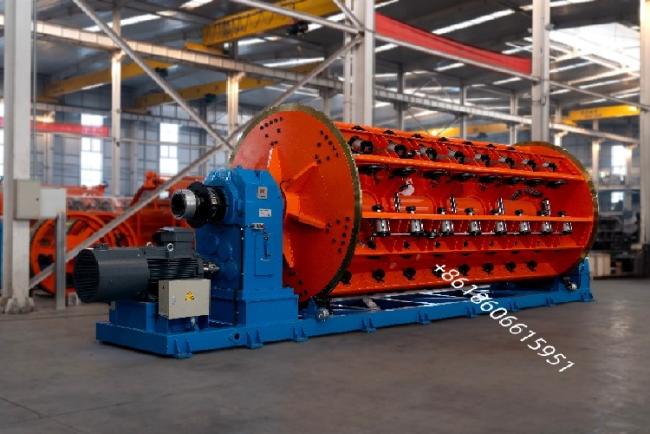

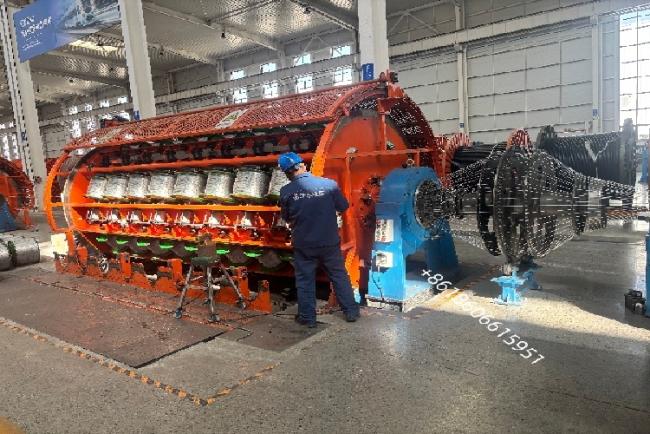

Rigid Frame Copper Wire Screening Machine KRB Steel Wire Armoring Machine​

Application

 The rigid type stranding machine is non back twist stranding. It is suitable for armoring of copper, round, flat aluminum wire,pre-twist conductor and steel wires armoring cables.

Technical Specification

1 Bobbin Size: 400mm,500mm,630mm

2 Bobbin QTY of Singe cage: From 6 bobbin to 48 bobbin

3 Clamping: Pneumatic type clamping, Motor clamping, Manual Clamping

4 Tension control: Hysteresis tension control, Mechanical tension control, Mechanical tension control with feedback, Pneumatic tension control

5 Bobbin Loading: Side-bottom Hydraulic loading, Side-bottom Electrical loading, Side loading

The rigid type stranding machine is non back twist stranding. It is suitable for armoring of copper, round aluminum wire,pre-twist sector conductor and steel wires armoring cables.

Provide side lower and front automatic loading mechanism according to the customer's site and requirements.

Provide aerodynamic resistance and electromagnetic brake to control tension, keep the tension constant according to the requirements.

The cage adopts the ground shaft transmission structure, each cage is driven by an independent motor with the electrical control synchronization.

The machine is provided with MMI+PLC control system for pre-setting stranding pitch, stranding direction, automatic tension compensation control and for speed synchronization with the pulling capstan and the take up unit.

Our rigid stranding machines include functions such as overline protection and overvoltage protection.

As a professional manufacturer of wire&cable stranding machines. BEYDE's well-equipped workshops located in Hejian City, only 2 hours driving, train to Beijing, Tianjin port. with many years rich experience, wide range of machines, BEYDE supplied more than 20 countries abroad, like USA, Russia, Brazil, Spain, Sweden, India, South Africa, Korea and more.
BEYDE supplies all types stranding&twisting machines including Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine,Laying-up machine, drum twister, bow type stranding machine, steel wire armouring machines, copper wire shielding machine, Gantry type pay-off and take-up, taping machines, bobbin&spools and help wire & cable manufacturers lower production cost and ensure quality of final products. From raw material procurement to finished product delivery, every process is carefully tested. We are committed to providing customers with full life cycle services from project consultation, equipment selection, installation and commissioning to after-sales training and spare parts supply to ensure customers no future worries.
