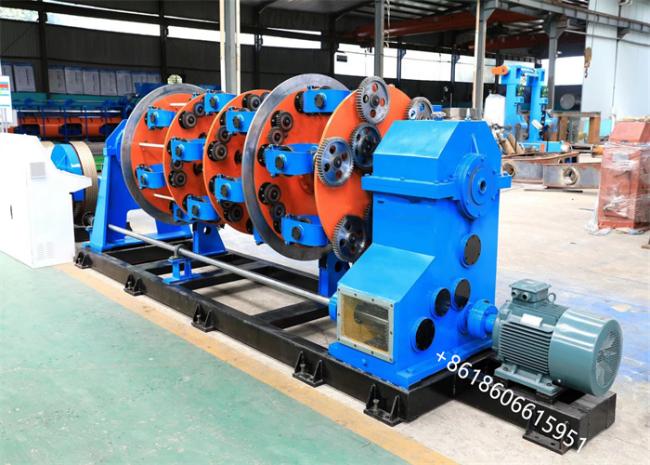

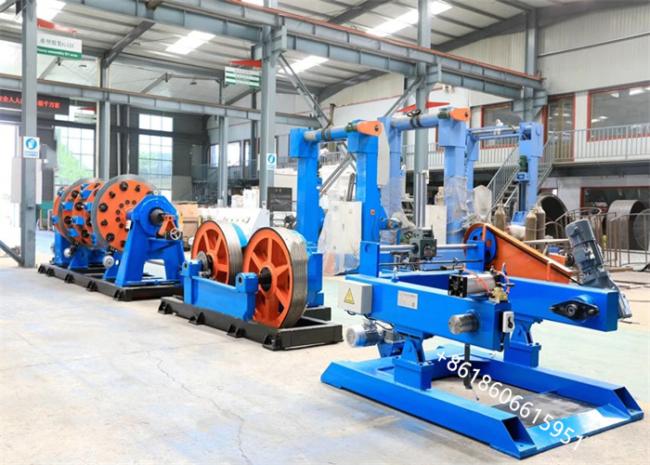

Low Twisting Jly315/1+19 Planetary Closer Spiral Single Strand Rope 6+54+54
Low-Twisting JLY315/1+19 Planetary Closer Spiral Single-Strand Rope 6+54+54
1. Usage
This series is primarily for stranded aluminum-clad steel cables,stainless steel optical fiber loose tubes,optical fiber composite overhead ground wires(POGW),stranded ACSR,stranded bare copper wires,and by this series,a variety of cables and optical cables can be armored or shielded with steel wire.
2. Main Character
1. Back-twist method : planetary mechanism.
2. Bobbin is clamped by disc springs and released by pneumatic device.
3. The machine is widely used, and manipulated conveniently with low-noise.
4. The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.
3. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Diameter of single wire | Copper | 1-1.6 mm | 1-4 mm | 1.2-5 mm | 1.5-5 mm |
| Aluminum | 1.2-2 mm | 1.2-4 mm | 1.4-5 mm | 2.0-5 mm | |
| Maximum stranded conductor OD | 14 mm | 28 mm | 35 mm | 45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 | |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 | |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 | |
| Rotating Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min | |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min | |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T | |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW | |
| Bobbin Size | 315 mm | 400 mm | 500 mm | 630 mm | |
| Center Payoff Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm | |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm | |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm |
1100 mm |
|
