Insulated Wire Plc Planetary Stranding Machine 380v

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 90 days

Brand: Beyde

Product Description

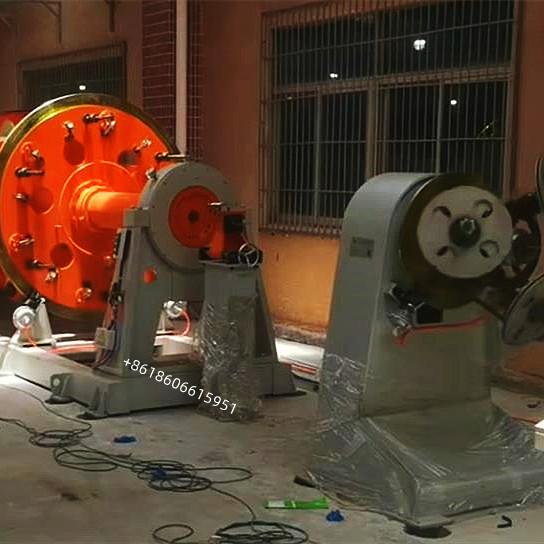

Planetary Strander | BEYDE - Cable Machinery Manufacturer Laying-up Machine

Planetary Laying- up Machine Stranding low voltage power cable machine
Usage
The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.

Features
1. central shaft does not bear the reels .
2. High rigid, high speed and low inertia high speed and low inertia.
3.no abrasion damage when stranding.
4. most advanced emergency stop device.
5. suitable for power cables and high compacted cross linking cables.
6. Siemens PLC control system, operating on touch screen.

ain parameters

Item	Unit	GLK500
Stranding-single wire Dia.	mm	Copper	Ø1.5~4.5
		Aluminum	Ø1.8~5.0
Max. section area	mm2	Copper	500
		Aluminum	630
Cage rotating speed	r/min	63~148
Hauling line speed	m/min	6.87 ~ 52.2
Stranding pitch	mm	47 ~ 825
Capstan Dia.	mm	Ø 2000*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND500
Takeup bobbin size	mm	PN 2500
Machine center height	mm	1000
Main motor power	KW	55

Item	Unit	GLK630
Stranding-single wire Dia.	mm	Copper	Ø 1.5~4.5
Stranding-single wire Dia.	mm	Aluminum	Ø 1.8~5.0
Max. section area	mm2	Copper	300
Max. section area	mm2	Aluminum	400
Cage rotating speed	r/min	6 Bobbins	75~174
		12 Bobbins	67~156
		18 Bobbins	57~133
		24 Bobbins	48~112
		30 Bobbins	43~100
Hauling line speed	m/min	6~45.6
Stranding pitch	mm	34~1041
Capstan Dia.	mm	Ø 2500*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND630
Takeup bobbin size	mm	PN2000
Machine center height	mm	1000
Main motor power	KW	45

Item	Unit	GLK710
Stranding-single wire Dia.	mm	Ø2.2~6.5
Cage rotating speed	r/min	40~156
Hauling line speed	m/min	6~44
Stranding pitch	mm	55 ~ 1050
Capstan Dia.	mm	Ø 2500
Center height of machine	mm	1100
Payoff bobbin size in cage	mm	PND710
Center payoff bobbin size	mm	PN1600
Takeup bobbin size	mm	PN3150
Main motor power	KW	185(DC)
Install power	KW	220
