SINOTRUK has fully upgraded the HOWO model based on its more than ten years of successful operation experience. Based on its
existing advantages and characteristics, as well as by combining, upgrading and reforming MAN-oriented technology and SINOTRUK
technology, the new HOWO product series TX series model will be put on the market in 2020.

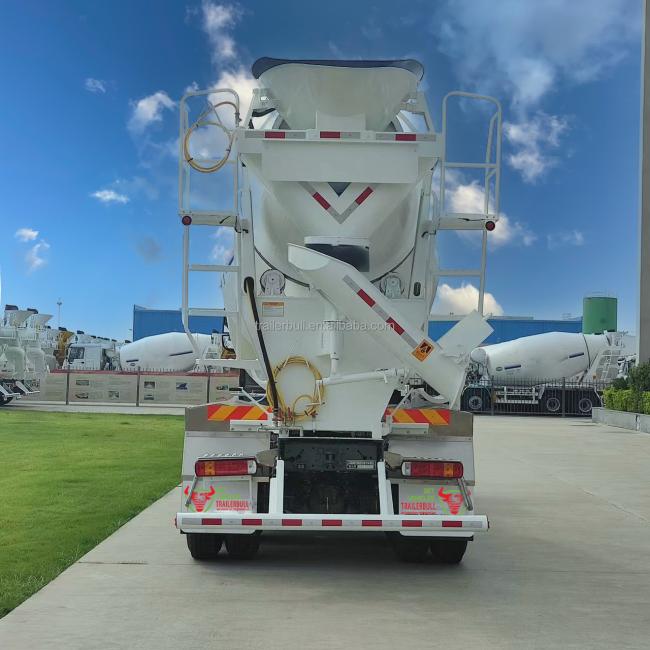

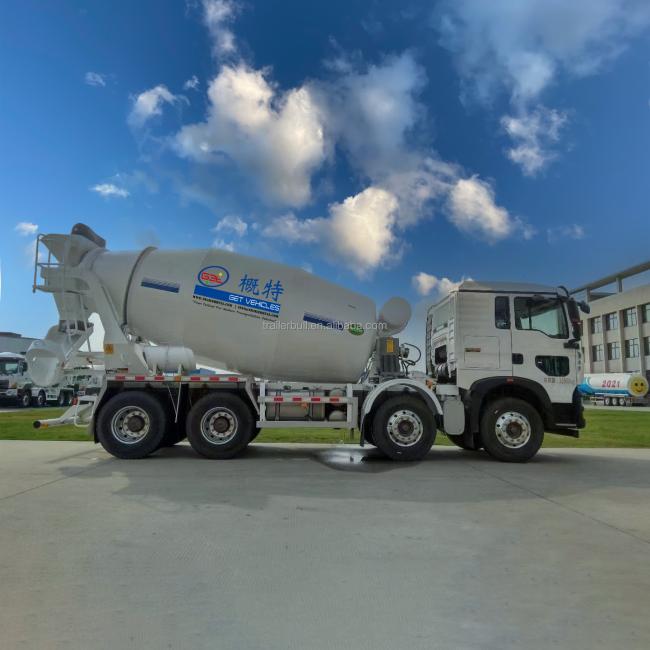

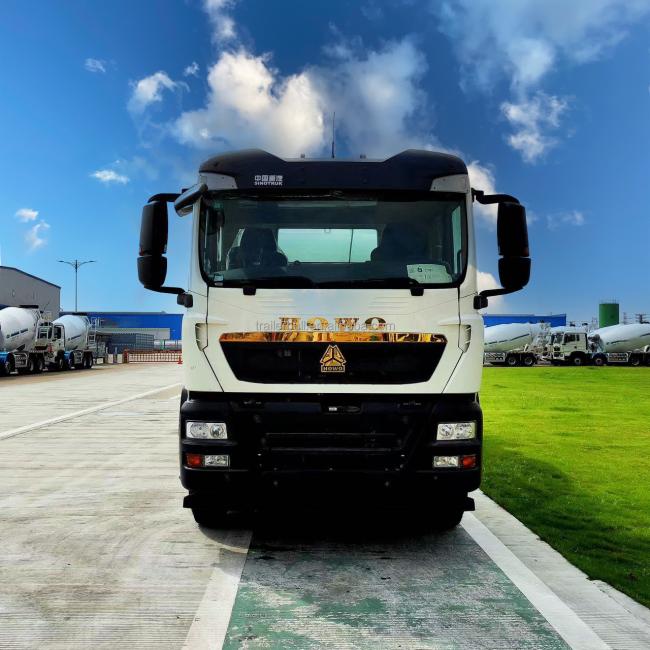

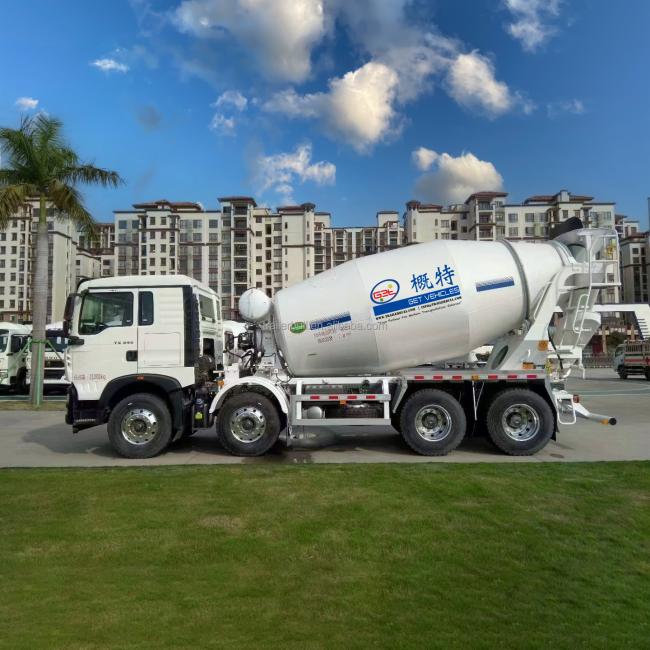

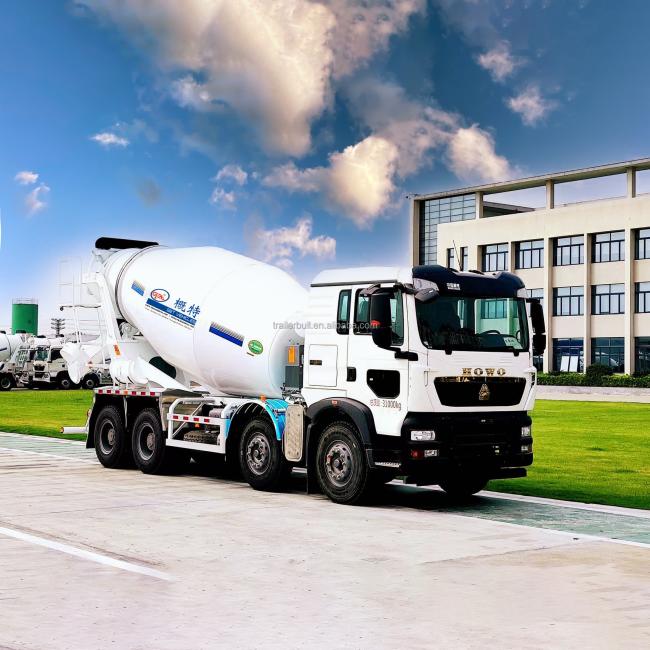

Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Price:
$56,540.00/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
GET VEHICLES | HOWO
Product Description
Product Description
Specification
|
vehicle Type
|
|
Concrete Mixer Truck
|
|
|
Drive type
|
|
8x4
|
|
|
Dimension(L×W ×H)(unloaded)
|
|
9960×2520×3965
|
|
|
Mix round cubage (m3)
|
|
10
|
|
|
Rotary speed of the drum(r/min)
|
|
0-18
|
|
|
Input speed(m3 /min)
|
|
≥3
|
|
|
Output speed(m3 /min)
|
|
≥3
|
|
|
The rate of remaining
|
|
≤1%
|
|
|
Hydraulic system
|
|
Pump/ Motor/Retarder IMPORT PARTS
|
|
|
Approaching angle/Departure angle(°)
|
|
19/16
|
|
|
Overhang(front/rear) (mm)
|
|
1500/2260
|
|
|
Wheel base (mm)
|
|
1800+3025+1400
|
|
|
Max speed(km/h)
|
|
90
|
|
|
Curb weight(kg)
|
|
13430
|
|
|
Loading Weight(kg)
|
|
18270
|
|
|
Engine
|
Model
|
MC07H.35-60/WP8.350E61A,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly
injection |
|
|
(Steyr technology)
|
Make
|
SINOTRUK
|
|
|
|
Fuel type
|
Diesel
|
|
|
|
Power, max(kw/rpm)
|
257/2200
|
|
|
|
Emission
|
EURO V/IV
|
|
|
Fuel tanker capacity(L)
|
|
300
|
|
|
Transmission
|
Model
|
HW15710L,10 forward&2 reverse10
|
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
|
(emergency brake)
|
|
|
|
|
Auxiliary brake
|
engine exhaust brake
|
|
|
Steering system
|
Model
|
ZF8098
|
|
|
Front axle
|
cast steel I-shaped front axle VGD71
|
|
|
|

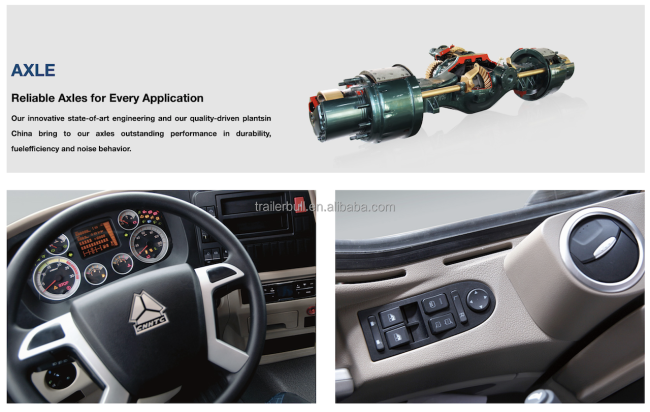

Rear axle
|
MCJ11 double reduction tandem axles with differential locks between wheels and axles, ratio: 5.29
|
|
|
|
Tire
|
12.00R20
|
|
|
|
Electrics
|
Battery
|
2X12V/165Ah
|
|
|
|
Alternator
|
28V-1500kw
|
|
|
|
Operating voltage
|
24V, negative grounded
|
|
|
|
Starter
|
7.5Kw/24V
|
|
|

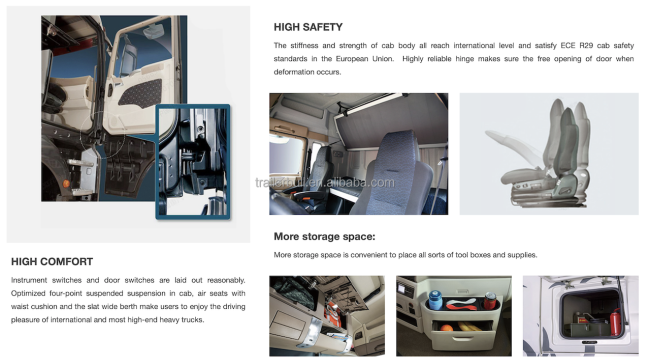

Cab
|
TX-M(525MM single bunk),TX-F(749MM single bunk), all-steel forward control,55ºhydraulically tiltable to the front,2- arm
windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
|

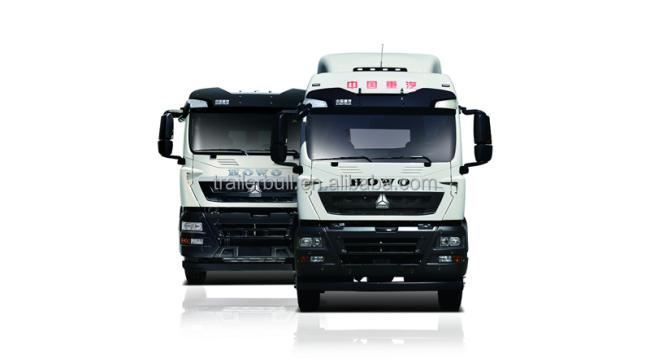

HERITAGE OF THE CLASSIC
100% OF NEW EXPERIENCE
100% OF NEW EXPERIENCE

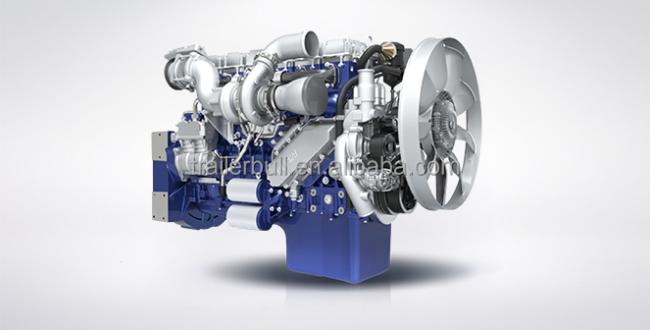

ENGINE
High reliability,Surging Power,Low Consumption
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.

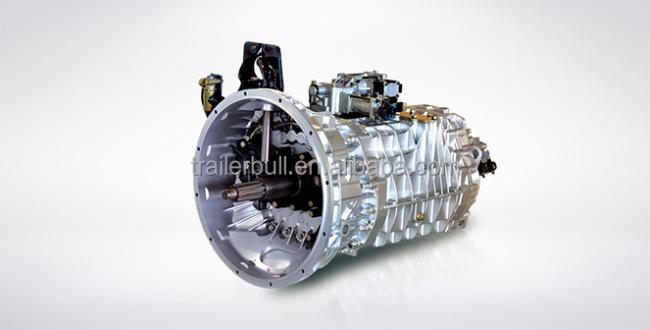

TRANSMISSION
Classic, mature and reliable
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.
|
MAIN SPECIFICATION OF 10 CBM MIXER
|
|
|
||
|
The material of the Agitator is the mix steel
|
|
BW300TP
|
||
|
Thickness of the tank body (mm)
|
End plate cover
|
8
|
||
|
|
Front Conical parts
|
5
|
||
|
|
Rear Conical parts
|
5
|
||
|
|
Cylindrical parts
|
5
|
||
|
|
Drum Bottom
|
5
|
||
|
over length (mm)
|
|
5250
|
||
|
Max. Diameter (mm)
|
|
2360
|
||
|
Mixing Tanker Volume (m3)
|
|
10
|
||
|
Draght angle(°)
|
|
11
|
||
|
Rotation speed (rpm)
|
|
1-12
|
||
|
Feeding speed (m3/min)
|
|
≥3
|
||
|
Discharging speed (m3/min)
|
|
≥2
|
||
|
Surplus rate (%)
|
|
≤0.5
|
||
|
Water tank volume (L)
|
|
450
|
||
|
reduction gears
|
|
TMG 51.2/PMP6.5
|
||
|
Hydraulic Pump
|
|
SUNNY 90 /PMH P90
|
||
|
Hydraulic Motor
|
|
SUNNY 90 /PMH P90
|
||
Packing & Delivery
BULK VESSEL , ROL-ROL
