Aluminum Structural Refrigeration Box Semi Trailer for Fresh Food and Meat Delivery
Price:
$57,400.00/units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
GET Cold Chain | GET VEHICLES
Product Description
Product Overview
GET Vehicles Box body semi-trailers
Thanks to the modular system, our box body semi-trailers can be individually configured for a wide range of applications. Low total operating costs make the box body semi-trailer highly economical. It offers maximum freight security, ensures the safe handling of temperature-controlled freight and short turnaround times at the ramp.
Your Benefits
Modular system for individual trailer configuration, e.g. simplified load securing with multifunctional floor, double-decker system and load securing rails.
Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
Convenient temperature printer as a supplement to the standard digital temperature recorder
Ease of cleaning, due to liquid-tight welded floor pan and flush-fitting attachments for optimum hygiene in the trailer.

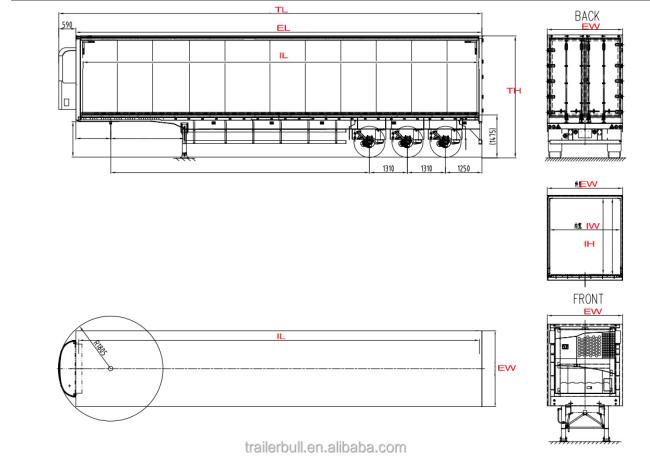

Main Parameters
Type | Refrigerated Box Body Semi Trailer |
Body | Aluminum Structural PUR Foaming Box Body |
Internal body length ( IL) | 114.7 m |
Internal body height* (IH) | 2,350-3,050mm |
Intenal body width* (IW) | 2,460 or 2,490mm |
Pallet spaces | 33 / 36 / 41Euro pallets or 26 ISO pallets |
Chassis | Carbon Steel |
Insulated & Refrierated Van
2.Insulation | ||
Front wall | 101.6mm | |
Side wall | 63.5mm | |
Roof | 76.2mm | |
Floor | 63.5mm | |
Door | 76.2mm | |
3.Van Configuration | ||
Front Wall Outer Plate | 1.0mm pre-painted white aluminum sheet | |
Side wall outer plate | 1.0mm pre-painted white aluminum sheet | |
Roof | Whole aluminum sheet | |
Rear door outer plate | 1.0mm pre-painted white aluminum sheet | |
Front wall inner Plate | 1.5mm thermoplastic sheet | |
Side wall inner plate | 1.5mm thermoplastic sheet | |
Roof inner plate | 1.5mm thermoplastic sheet | |
Rear door inner plate | 1.5mm thermoplastic sheet | |
Sub-floor | 1.0mm thermoplastic sheet | |
Protection scuff | 300mm aluminum scuff | |
Floor | 35mm extruded aluminum duct floor | |
Floor Isolation reinforcemen | composite material | |
Rear door type | double door | |
Rear door hinges | aluminum hinges | |
Lockers | galvanize lockers, 2 per door, 4 in total | |
Rear door frame | Stainless steel sand electrolytic oxidation | |
Bumpers | Big size bumpers（one on both side) | |
Rear door handles | one on left side | |
Rear Door Options
Single Panel Narrow Opening
2-Panel Narrow Opening
2 Panel Full Opening
3 Panel Full Opening
4 Panel Full Opening
Overhead Rear Door
Side & Special Door Optional
A good alternative to partial loads with multi-temperature transport with a partition. The side door enables the trailer to be partially unloaded and provides access to individual MultiTemp chilled zones.
3 Panel Full Opening
4 Panel Full Opening
Overhead Rear Door
Temperature-controlled transport
Cooling machine model | ||
Thermo King SLXI 400-30 --Factory provides and installs battery、fuel tank and cooling machine air duct； --Factory provides aluminum front wall bulkhead(front bulkhead punch a breather hole),THACO installs it； --Factory provides cooling mahcine protection pole， factory installs it； | Carrier Vector 1550 --Factory provides and installs battery、fuel tank and cooling machine air duct； --Factory provides aluminum front wall bulkhead(front bulkhead punch a breather hole),THACO installs it； --Factory provides cooling mahcine protection pole， factory installs it； | |
Air chute system
Efficient cooling, due to optimised air distribution. Three flexible cooling ducts provide for the required distribution of cold air. If partition walls are used, several temperature zones can be produced without additional handling.
Cold tarpaulin
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Mobile partition
When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.
Additional roof evaporator
The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.
Strip curtain
Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.
Cooling unit
The MonoTemp and MultiTemp versions of the cooling unit from Carrier or Thermoking delivers optimum cost-effectiveness. Precise temperature management, thanks to sensitive control, low fuel consumption and long maintenance intervals.
Single-Temperature Refrigeration Units
A complete line of single-temperature units for long haul and delivery applications.
Multi-Temperature Trailer Units
Precedent® multi-temp takes the premier trailer platform in the industry and optimizes it for food distribution.
Heating Units
Dependable heat for trailer and intermodal applications.
Profiles Options
Customized Rear Door
Tell us what you need: Wh it is wing doors with a 270° opening angle and double espagnolette locks or roller shutters for rapid loading in tight space
Customized Side Door
Customized Size Side door for easy discharging. Side Wall Embedded to keep the Strengthen
Customized Floor Cover
Aluminum Checked Mat for Anti-Skid T Rail For Air-Cycle and Easy Water Washing.
Strip curtain
The optional strip curtain provides the rear of the body with an additional means of closure and prevents the immediate loss of cool air when the rear door is open.
Cargo Control System
Smart & customized cargo Loading control system
Cargo Versatile Shelving
Offers a wide variety of cargo shelving from stainless steel to aluminum alloy
Hydraulic Taillift
Aluminium alloy or steel platform hydraulic tail lift 12/24V Type 1T ,1.5T,2T Model are available
Multi-Temperature Partition
Multi-temperature purpose longitudinally movable, insulated transverse partition wall
STEEL STRUCTURE AND TRAILER CHASSIS SYSTEM
4.Chassis Configuration | |
Landing leg | JOST E100 ；crank on the right, the distance between lending leg and ground is more than 320mm on the normal state |
Landing leg installation parts | carbon steel |
Traction Pin | Bolt assembly type, 2 "traction pin |
Frame | Carbon frame, KTL electrophoresis + powder spraying |
Suspension | Air Spring Supension + front Axle Lift |
Alxe | FUWA 13T -2040 Drum Brake |
Tyre | 385/65R22.5 |
Rim | 9.5*22.5 |
Brake System | WABCO |
Rear protection | carbon steel hot galvanizing |
Side protection | STEEL |
Spare Tyre Carrier | Two |
Spare Wheel | None |
Tool Box | STEEL |
5.Lamp and wire harness system | |
Wire harness system | Integrated wiring harness system，24V |
Front clearance lamp | 2pcs，white，LED，24V |
Side Marker Lamps | 10pcs，5 on both side，amber，LED,24V |
Rear clearance lamp | 2pcs，red，LED，24V |
Turn light | 2pcs，amber，LED,24V |
Brake compound lamp | 2pcs，red，LED，24V |
Back-up light | 1pc，white，LED，24V |
Rear fog lamp | 1pc，red，LED，24V |
License lamp | 1pc，red，LED，24V |
Interior lamp | 4pcs LED 24V interior lamp，flushed installation with dark line and control switch (the switch position is 1.5m high at the right side of the rear end of the box) |
FAQ
What is a refrigerator/Refrigerated truck trailer ?
A refrigerator/Refrigerated truck trailer is a van or truck designed to carry perishable freight at specific temperatures. Like
refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units. The first successful mechanically refrigerated trucks were introduced by the ice cream industry in about 1925.There were around 4 million refrigerated road vehicles in use in 2010 worldwide
refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units. The first successful mechanically refrigerated trucks were introduced by the ice cream industry in about 1925.There were around 4 million refrigerated road vehicles in use in 2010 worldwide
What’s the material of your refrigerated truck body?
We can produce FRP (Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless-Steel Material for the refrigerated truck body.
The Core Material can be PU, XPS.
The Core Material can be PU, XPS.
If want the price, what should offer us the information?
You need offer us the material, size (LxWxH and the thickness of the panel) and quantity of the truck body as the basic
information.
information.
What is the CKD and CBU means?
CKD means completely knocked down. That means offer all the parts of the truck body (Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you must do some works, but it can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
Have the price include the Refrigeration units ?
The Price shows have not included the refrigeration units .The Refrigeration units in the specification is just for reference of the capacity, You can freely choose Thermoking , carrier or other brand from your local or us.
How long life of your truck body?
It depends how will use it. Normally, the life is about 15~20 years
