1.5-2.5mm FRP / GRP Skin Special Slide-On Refrigeration Truck Box Body for TOYOTA Pickup

Name: 1.5-2.5mm FRP / GRP Skin Special Slide-On Refrigeration Truck Box Body for TOYOTA Pickup
Brand: GET INDUSTRY & VEHICLES CO.,LTD

Price Negotiable

Price: $180.00/square meters 1-4 square meters

MOQ: Negotiable

Delivery Time: Negotiable

Brand: GET COLD CHAIN | GET VEHICLES

Product Description

Product Paramenters

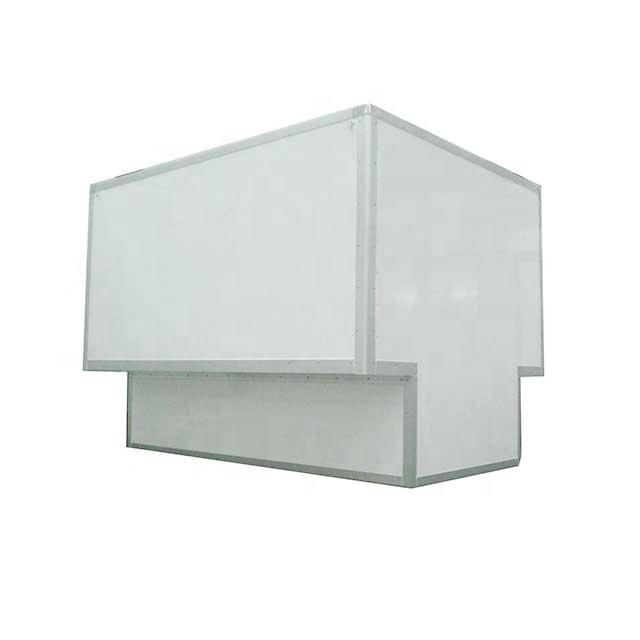

What is a Flatbed Truck Camper?

Truck campers mounted on pickup trucks are the most popular. A unit referred to as a slide-in, or cab-over is lowered or slid into the bed of the pickup then secured in place using tie-downs and turnbuckles. Pickup campers can be mounted on trucks as small as half-ton models, also known as light-duty pickups, such as the Ford F-150, Ram 1500, Chevrolet Silverado 1500, GMC Sierra 1500, Nissan Titan and Toyota Tundra. These trucks are rated to carry loads up 1,000 lbs. making them suitable for small slide-ins. Larger camper units require a three-quarter or one-ton pickup. Flatbed truck campers are mounted on trucks with a flatbed. And as the name suggests, they are built with no fixed sides, tailgate or roof. Tie-downs are typically located along the side of the trailer. Some people remove the truck bed from their pickup truck and replace it with a flatbed. Some flatbed truck and campers can range up to 53 feet long, accommodating a larger, more roomy camper body, although most camper bodies are 6.5 to 11.5 feet in length. The resulting vehicle often looks much like a Class C RV. The difference being that the camper portion can be lifted off, allowing the vehicle underneath to revert to use as a truck.

EXPEDITION BOX/CAMPER WITH ALL-PLASTIC FRP BOX _FOR EXPEDITION OR TRAVEL
1. MODEL:				Expedition Box
ALL-PLASTIC FRP BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our All-plastic Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. can also be refitted to be the RV motorhome , expedition TRUCK BODY or Camper box with inside Furniture layout.
2. GENERAL
K .Value for the Composite Box			0.295 W/㎡ ℃
Max. Overall Length	48 ft	14,750 mm	0~14750mm can choose
Max. Overall Width	10 ft	3,200 mm	0~ 3200 mm can choose
Max. Overall Height	10 ft	3,200 mm	0~3200 mm can choose
Max. Floor Thinckness	4 .13 inch	105 mm	45-105mm can choose
Side Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Front Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Rear Door Panel	3 .31 inch	84 mm	45-105mm can choose
Roof Wall	4 .13 inch	105 mm	45-105mm can choose
3. Box Structure
super Structure	self-supporting body, withoug cross bars , insde and outside skin made of glassfibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties. Without metallic carrier elements = withou direct heat conductivity The body are watertight the plastic elements are flam resistant
SHAPES	Standard Square Shape , OPTIONS: Big Departure Angle Design
Surface	The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval
4. Installation:
It is very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the all-closed sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies ckd we provide have included all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, approx.1.5 hours for one box, with a set time at least 8 h at +20 ℃
CKD Panel Kits	1. Prepare the chassis 2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts 3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least 8 h at +20 ℃ . 4. Install the required options 5. Finishing
CBU Box	1.Prepare the chassis 2. Mount the BOX tog with subframes on the chassis 3. Install the required options 4. Finishing
5. Aluminum Profiles :
The used aluminum profile andonized silver , heat treated , harden metal which is made 6063 alloys,to wear resistance and strength to the box.
External Angle	Extruded Angle 100 X 150 X 3mm,Made Of Aluminum Include Front , Rear, Top And Lower Round Corners. To Protect The Corner And The Side Of The Van.
External wrapping edge	Made of aluminum alloy to protect the side edge of the van,vertical in the front is half round model, horizontal side is 90 degree angle model.
6. Camper profiles options:
Entry Door options	Standard :Caravan Door :EVD-1750H x 622 W
		Caravan Door : EVD-1810 H x 600 W (mm)
		Caravan Door : EVD-1822 H x 600 W (mm)
Main Character	Installation	clip with sheet metal
		Wall Thickness	30-36,37-41,42-45 mm
		Frame	High Quality aluminum alloy
		Panel	Laminated Aluminum sheet with powder coated and insulation material
		Lock	2-point locking system made in Germany, M1 Test
		Hinges	Safety Alumium Hinges for motor vehicles
		Window	double glazing acrylic from europe E-Mark
		Flyscreen	Aluminum frame with black gauze
		Others	ABS inner shell with abat vent wastebin and solid handle

WINDOWS options	Caravan Window 300 H x 500 W (mm)
		Caravan Window 450 H x 500 W (mm)
		Caravan Window 450 H x 610 W (mm)
		Caravan Window 450 H x 900 W (mm)
		Caravan Window 450 H x 1100 W (mm)
		Caravan Window 500 H x 900 W (mm)
		Caravan Window 500 H x 1200 W (mm)
		Caravan Window 550 H x 700 W (mm)
		Caravan Window 550 H x 900 W (mm)
		Caravan Window 600 H x 1250 W (mm)
Main Character	Window Frame	Powder Coated High Qualtiy Aluminum alloy
		Frame Color	White , Black Silver Grey,or customized
		Glass	Grey Double Glazing Acrylic panel , UV resistance, Certified by Europe ECE
		Blind Panel	Composed from high strength fiberglass mesh and sunlight reflective blind
		Open	Telescopic strut stays open at 10 and 35 defrees for 300mm high windows while all other sized stay at 20,40 and 60 degrees
		Main Function	Open, close ventilate, insulate, provide privacy, allow sunlight in, prevent insects , and good water seal. It can ast as emergency exit, when the screen and blind are unlocked and window open , Simple Structure, easy installation and operation, durable and reliable with many available sized.
		Main Applications	Recreation vehicles windows, suitable for the three wall thickness ranges 24-34,34-44, 44-54mm. The inner frames of windows will vary based on the wall thickness range. So it is necessary to specify the wall thickness when placing order
7. Why Choose a Flatbed Truck Camper?
1. Off-Road Capabilities: Truck campers in general, both the pickup and flatbed based models, are favorites with owners who plan to take their rigs off-road, do a lot of boondocking, or just enjoy going where more “delicate” motorhomes wouldn’t dare. The conditions that would destroy a typical motorhome, or at least leave it waiting for a tow. 2. Can Tow A Trailer: Truck campers, with their more powerful engines, also are great for towing boats, horse trailers, or utility trailers loaded with motorcycles, ATVs, jet skis, snowmobiles or other “toys” that today’s adventure seekers want to bring along on vacation. 3. Easy to Drive: Truck campers are generally smaller than big motorhomes or fifth-wheel combinations. They have a tighter turning radius and are easier to park since they usually fit in a regular parking space. Gas mileage is likely to be a bit better as well. And the units are easier to store and maintain. 4. Registration and Insurance Savings: Another, often overlooked, advantage of a truck camper is the savings in insurance, registration, and licensing fees. Many, if not most, states consider the camper body itself to be cargo, instead of a typical RV that has to be registered as a separate vehicle. All owners have to do is maintain the license and registration on the truck itself. The same goes for insurance, although some companies will offer a special rider for the truck camper, usually at low cost. 5. Tax Advantages: There may be a tax break involved as well. The IRS waives the $25,000 limit on expensing any vehicle “equipped with a cargo area (either open or enclosed by a cap) of at least 6 feet in interior length that is not readily accessible from the passenger compartment.”
6. More Space: Since flatbed truck campers don’t have to fit into a pickup truck bed, they have additional storage space for a water heater, water tanks, extra batteries, and propane as well as more spacious living quarters. Some even have storage boxes mounted at the back of the camper. They are secured to the truck bed itself, often with pins or bolts, without cutouts around the wheel wells and the sides of the truck bed. This lower center of gravity makes them more stable, as well, allowing heavy items like water, propane, and batteries to sit lower in the overall design. Some flatbed trucks also have a crew cab so a couple more adults can ride along too. 7. Multiple Uses: You can also remove the camper and use your flatbed truck for work or other activities. Therefore, your flatbed truck can be used in a variety of ways. Truck campers have some “cons” as well. They aren’t ideal for people that need accessible features, due to the higher clearance, and many find that the interior is cramped compared to a big Class A of the sort preferred by full-timers. While pickup campers have traditionally dominated the truck camper field, flatbed campers have become increasingly popular in recent years. The slide-out design necessarily causes the pickup camper to be narrow on the bottom to fit into the truck bed, then balloon out over the truck sides. This design not only limits storage and living space; it may create a top-heavy rig and affect stability.
FAQ: -Can you pre-cut openings for windows and doors? We can offer this service with cost as we have embeded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embeded strengthen parts can not make . So if it will work in really bad expedition, you'd better let us pre-cut opennings for windows and doors. -Can you do departure angles? Yes, we have two size of the box shape, one is the standard square shape , the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need. -Can you design subframes? We have the service of this, but you need supply the full chassis layout to us in advance. -Can I use different windows and doors than what’s listed on your specification? Yes. However, we highly recommend our windows and doors as they work in perfect balance with our camper bodies. –Can I order a camper body with an alcove? Yes. Please ask us for our alcove quoting template. –What’s included in the shipment? CKD type with All panels cut to size (other than departure angle), CBU type with assembled box per your requirements. –Can you help with the interior layout? No. We are solely a camper body supplier, not a full scale outfitter/design office.

STANDARD COMPOSITE PANEL KITS

Length 0-14750mm

Width 0-3200mm

Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body side and roof wall.

2. RV and Expedition side and Roof Wall.

3. Mobile Cold Room Side Walls

FLOOR PANEL KITS

Length 0-14750mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body Floor.
2. RV and Expedition Floor Wall.
3. Mobile Cold Room Floor Wall

MEAT HANGER ROOF

Length 0-14750mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Refrigerated Meat hanger truck body roof wall.
2. Mobile Meat hanger Cold Room roof wall

SIDE DOOR / WINDOWS EMBEDDED REFORCEMENT

Length 0-3000mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body side Door
2. RV and Expedition box Windows and Entry Doors
3. Mobile Cold Room entry Door.

Manufacturing Technique

GERMANY WET-IN WET TECHNOLOGY

Completely imported advanced technology and equipment from Kogel Fahrzeugwerke AG,Germany with its technicians to produce the sandwich panels of refrigerated & insulated truck with WET-IN-WET method and high pressure, vacuum technology.Now we are the only one in Asia get this full Technology and innovated .

PAVE MATERIAL IN THE MOULD

All the panel after paved all the layers in the mode, it will be push to the Original Germany Press Machine with heat and Vacuum to quicken the react between fiber Glass felt polyurethane glue. All the panel is finished in one time to be an Sealed Assembly.

CHEMICAL COMPOSITE PROCESS

The special press machine can meet various requirements of refrigerated & insulated bodies. The dimension of panel can be chosen at the follow range: Length 0-14750mm Width 0-3200mm Thickness 27-135mm

Our Advantages

FREON-FREE POLYURETHANE FOAM

CAPACITY:40-42 KG/ m3

ANTI-PRRSSURE: 0.25-0.30MPa

K value: 0.021w/m.k

APERTURE RATE: 90%-95%

BEST TWO-COMPONENT STRUCTURAL GLUE

a polyurethane glue, A, B components Imported from Germany (Henkel) Tensile strength ≥17MPa Resistant to low Temperature, moisture and aging

ORIGINAL GERMAN MACHINE

Original Germany Press Machine with heat and Vacuum to quicken the react between fiber Glass felt polyurethane glue. All the panel is finished in one time to be a Sealed Assembly.

ADVANTAGE CHARACTERS

1. Light in tare weight: Reduce self-weight 30% than traditional metal box, increase 30% of effective Payload.

2. Excellent seal performance: dust proof & rainproof etc.

3. Better insulation: K value less than 0.3w/㎡k.

4. Long life: 3 times long tan traditional metal box , around 10 years.

5. Green& Environment prevention: non-Corrosion, Non-Chemical pollution, free maintenance;

6. Floor Can meet forklift’s operation,Ceiling can let the Meat hooks fix, bearing capacity up to 2 tons / m.

7. High Strength, anti-knock and anti-steal. ANTI-PRESSURE:>180MPa ANTI-CURVE: >220MPa CUT STRENGTH: 24.6MPa

8. Easy to assembly and repair at site only with glues and FRP felts.

Installation Instructions

Distinguish the different Panels

Distinguish the different panels for different walls, Floor,Roof, Side walls (2 sets), Front wall, Rear Wall, and pre-install for their position.

Install the panels per instruction

Install the panels with glues one by one, from floor to front wall, then the side wall , then the roof , at last put the rear wall with tail door.

Clamp with F-shape fixture

After all the walls been installed with glue, clamp the box with F-Shape Fixture to let the Composite glue Hard , and then clean the surface and the joint edges, then a box finished.
