Air Craft Feed Truck Body Strength Lightweight All Plastic FRP Composite Sandwich Panel

Price Negotiable

Price: $2,000.00 - $15,000.00/units

MOQ: 5 units

Delivery Time: Negotiable

Brand: GET VEHICLES

Product Description

Product Paramenters

ALL-PLASTIC FRP BOX

ALL-PLASTIC FRP BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our All-plastic Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. can also be refitted to be the RV motorhome , expedition TRUCK BODY or Camper box with inside Furniture layout.

AIRCRAFT FEED TRUCK BODY WITH ALL-PLASTIC FRP BOX _TRUCK BODY FOR AIRCRACFT FEED TRUCKS
1. MODEL:				AIRCRAFT FEED TRUCK BODY
ALL-PLASTIC FRP BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our All-plastic Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. can also be refitted to be the RV MOTORHOME , expedition TRUCK BODY or Camper box with inside Furniture layout.
2. SPECIAL REQUIREMENTS
REAR DOOR	AUTOMATIC ROLL UP REAR DOOR
FRONT DOOR	AUTOMATIC ROLL UP REAR DOOR
STEPS	STEPS TO THE PLANE DOOR FOR THE CART OR HAND FORLIFT EQUIPMENTS
STRENGTHED FLOOR	SPECIAL EMBEDDED FLOOR WITH SUPER STRENGTH DESIGN FOR THE SCISSOR HYDRAULIC SYSTEM INSTALLATION
3. GENERAL
K .Value for the Composite Box			0.295 W/㎡ ℃
Max. Overall Length	48 ft	14,750 mm	0~14750mm can choose
Max. Overall Width	10 ft	3,200 mm	0~ 3200 mm can choose
Max. Overall Height	10 ft	3,200 mm	0~3200 mm can choose
Max. Floor Thinckness	4 .13 inch	105 mm	45-105mm can choose
Side Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Front Wall Thickness	. inch		ROLL UP DOOR
Rear Door Panel	. inch		ROLL UP DOOR
Roof Wall	4 .13 inch	105 mm	45-105mm can choose
4. Box Structure
super Structure	self-supporting body, without cross bars , inside and outside skin made of glass fibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties. Without metallic carrier elements = without direct heat conductivity The body are water tight the plastic elements are flam resistant
Rear Wall	ROLL UP DOOR
Portal	stainless Steel
Surface	The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval
5. Installation:
It is very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the all-plastic sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies ckd we provide have included all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, you can assemble them by yourself without purchasing any material. Generally, 3-4 workers can assemble 5-6 bodies everyday. Moreover, at the beginning we will assign our engineers to supply you some technical guidance.
CKD Panel Kits	1. Prepare the chassis 2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts 3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least 8 h at +20 ℃ . 4. Install the required options 5. Finishing
CBU Box	1.Prepare the chassis 2. Mount the BOX tog with subframes on the chassis 3. Install the required options 4. Finishing
6. Aluminum Profiles :
The used aluminum profile andonized silver , heat treated , harden metal which is made 6063 alloys,to wear resistance and strength to the box.
External Angle	Extruded Angle 100 X 150 X 3mm,Made Of Aluminum Include Front , Rear, Top And Lower Round Corners. To Protect The Corner And The Side Of The Van.
Interior wrapping edge	Made of aluminum only the top side to arrange the wire of the light.
External wrapping edge	Made of aluminum alloy to protect the side edge of the van,vertical in the front is half round model, horizontal side is 90 degree angle model.
7. Box profiles options:
Rear Doors	Tri-Wing rear door
		Roll up rear door
		Single-open side door
		Double-open side door
Curtains for doors	Side door curtains
Curtains for doors		Rear door curtains
Floor profiles	M-coat floor-composite type
		Alu. Checked plate floor 3mm -composite type
		Stainless steel plate floor 1.5mm -composite type
		Side air duct - alu.u channel vertical direction
		Kick plate-aluminum 300*2mm-composite type
Aluminum Profiles
Cargo profiles	Cargo fix track
		Side door steps
		Evaporator proctor
		Moveable compartment system ( box >5000mm can choose)
Meat carcass hanger system	Meat hang box design 3,4,5, 6 lines of sliding rail
Meat carcass hanger system		Meat hooks
8. Temperature control
Refrigeration units	Refrigeration units: thermoking or Carrier with standby
Temperature sensor	Temperature sensors for medicine two constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.
Temperature sensor		Temperature sensors for normal carogs: one constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.
9. Hydraulic tail plate voltage: cantilever type 12/24v dc
1t model	Capacity:1000kgs
		height: ≤1300mm
		weight: 425kg (steel)
		standard platform widthxheight: 1800*1650 mm
1.5t model	Capacity:1500kgs
		height: ≤1300mm
		weight: 620kg (steel)
		standard platform widthxheight: 2300*1800 mm
2t model	Capacity:2000kgs
		height: ≤1300mm
		weight: 620kg (steel)
		standard platform widthxheight: 2300*1800 mm

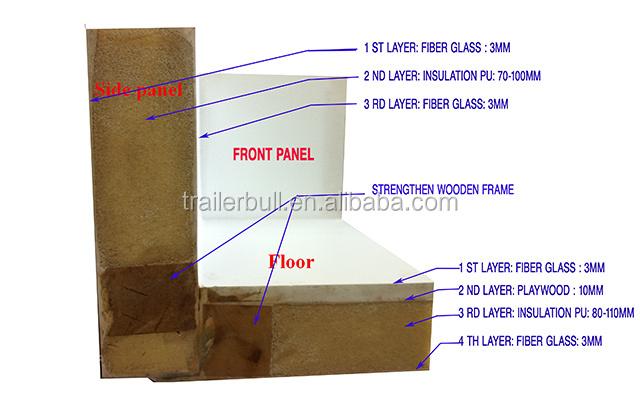

Wall Structures

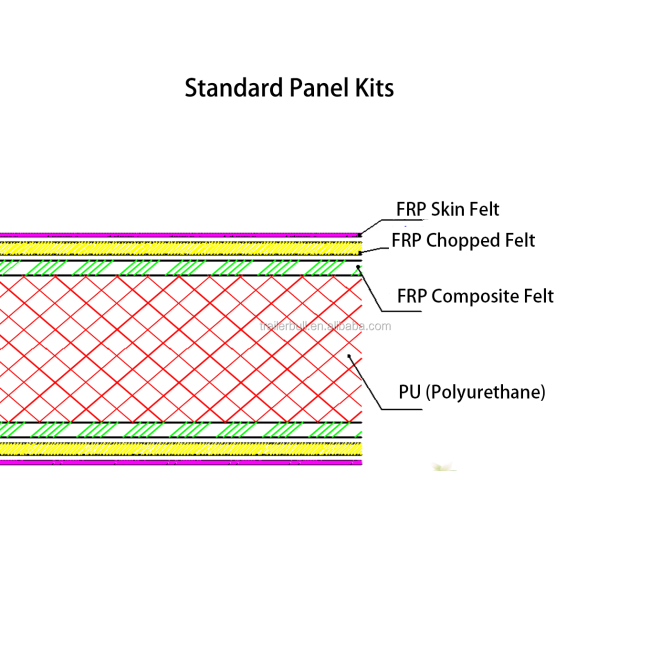

STANDARD COMPOSITE PANEL KITS

Length 0-14750mm

Width 0-3200mm

Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body side and roof wall.

2. RV and Expedition side and Roof Wall.

3. Mobile Cold Room Side Walls

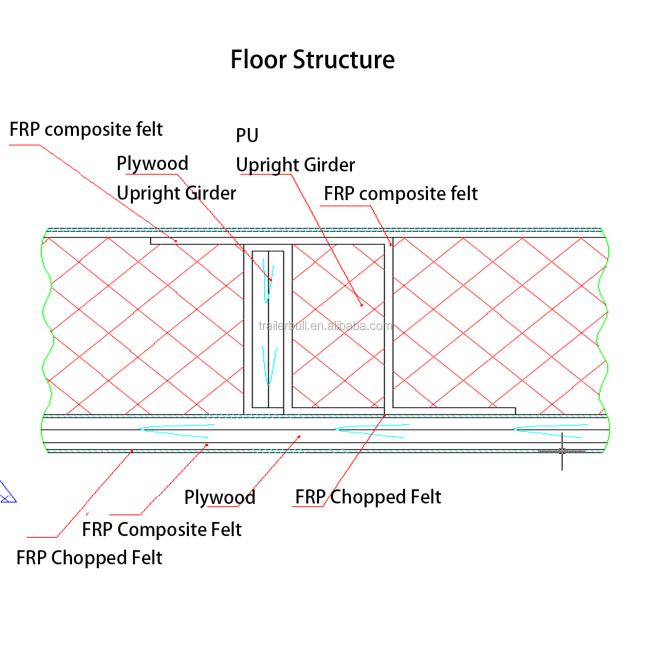

FLOOR PANEL KITS

Length 0-14750mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body Floor.
2. RV and Expedition Floor Wall.
3. Mobile Cold Room Floor Wall

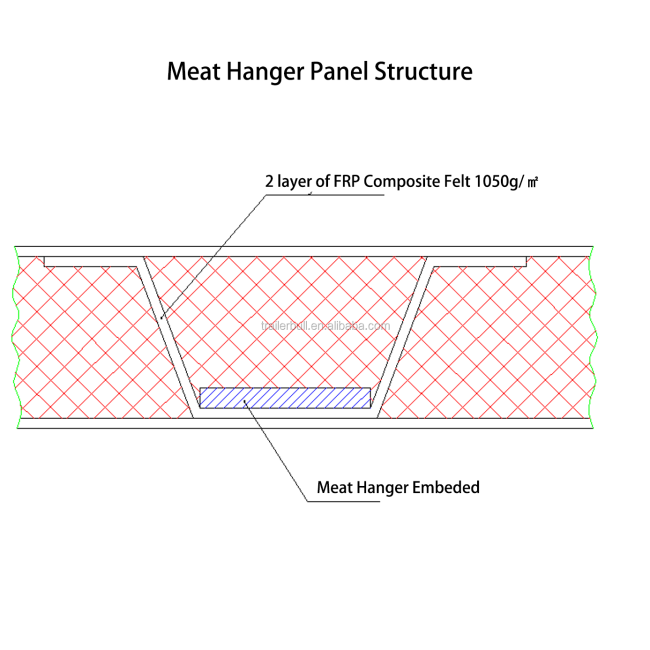

MEAT HANGER ROOF

Length 0-14750mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Refrigerated Meat hanger truck body roof wall.
2. Mobile Meat hanger Cold Room roof wall

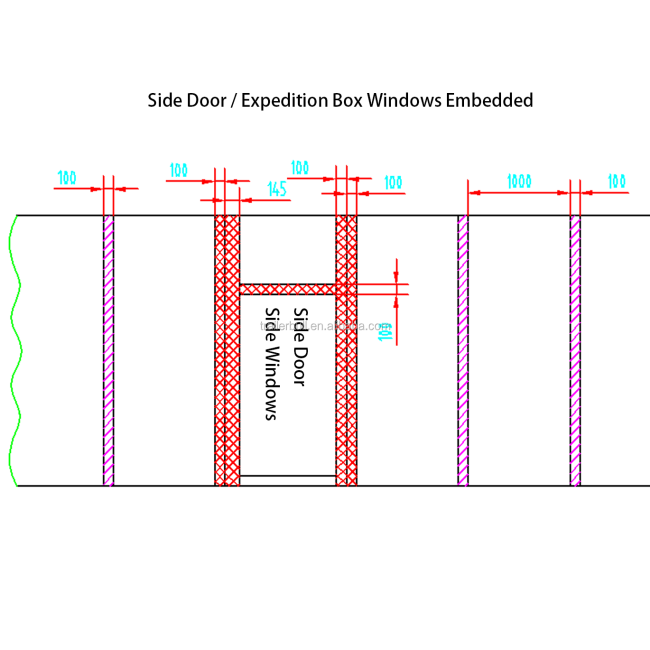

SIDE DOOR / WINDOWS EMBEDDED REFORCEMENT

Length 0-3000mm

Width 0-3200mm
Thickness 27-135mm

USAGE RANGE:

1. Insulated & refrigerated truck body side Door
2. RV and Expedition box Windows and Entry Doors
3. Mobile Cold Room entry Door.

Manufacturing Technique

GERMANY WET-IN WET TECHNOLOGY

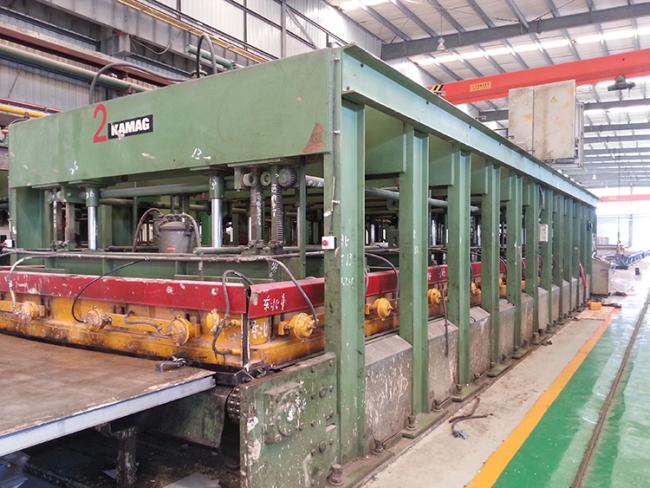

Completely imported advanced technology and equipment from Kogel Fahrzeugwerke AG,Germany with its technicians to produce the sandwich panels of refrigerated & insulated truck with WET-IN-WET method and high pressure, vacuum technology.Now we are the only one in Asia get this full Technology and innovated .

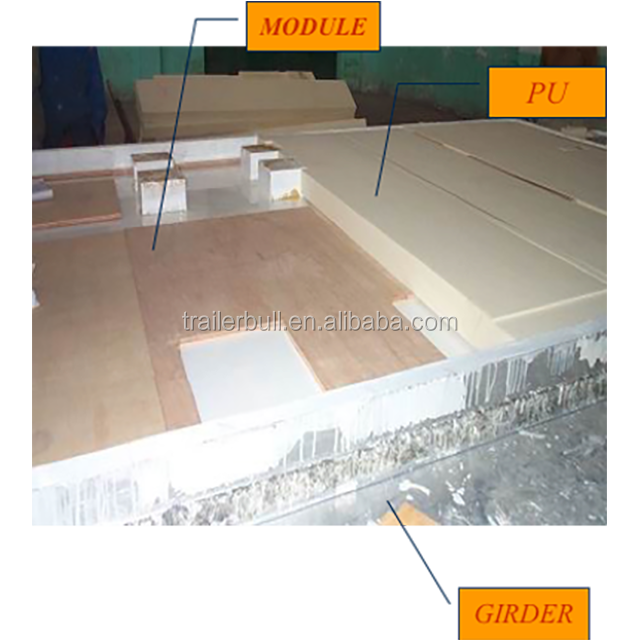

PAVE MATERIAL IN THE MOULD

All the panel after paved all the layers in the mode, it will be push to the Original Germany Press Machine with heat and Vacuum to quicken the react between fiber Glass felt polyurethane glue. All the panel is finished in one time to be an Sealed Assembly.

CHEMICAL COMPOSITE PROCESS

The special press machine can meet various requirements of refrigerated & insulated bodies. The dimension of panel can be chosen at the follow range: Length 0-14750mm Width 0-3200mm Thickness 27-135mm

Our Advantages

FREON-FREE POLYURETHANE FOAM

CAPACITY:40-42 KG/ m3

ANTI-PRRSSURE: 0.25-0.30MPa

K value: 0.021w/m.k

APERTURE RATE: 90%-95%

BEST TWO-COMPONENT STRUCTURAL GLUE

a polyurethane glue, A, B components Imported from Germany (Henkel) Tensile strength ≥17MPa Resistant to low Temperature, moisture and aging

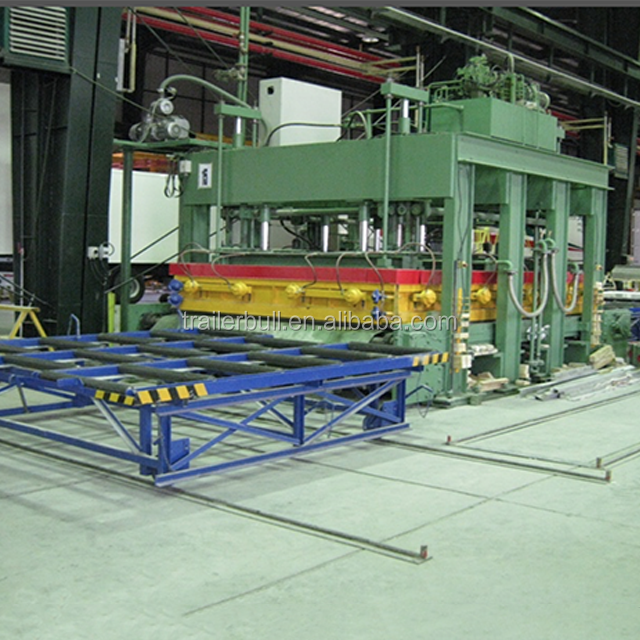

ORIGINAL GERMAN MACHINE

Original Germany Press Machine with heat and Vacuum to quicken the react between fiber Glass felt polyurethane glue. All the panel is finished in one time to be a Sealed Assembly.

ADVANTAGE CHARACTERS

1. Light in tare weight: Reduce self-weight 30% than traditional metal box, increase 30% of effective Payload.

2. Excellent seal performance: dust proof & rainproof etc.

3. Better insulation: K value less than 0.3w/㎡k.

4. Long life: 3 times long tan traditional metal box , around 10 years.

5. Green& Environment prevention: non-Corrosion, Non-Chemical pollution, free maintenance;

6. Floor Can meet forklift’s operation,Ceiling can let the Meat hooks fix, bearing capacity up to 2 tons / m.

7. High Strength, anti-knock and anti-steal. ANTI-PRESSURE:>180MPa ANTI-CURVE: >220MPa CUT STRENGTH: 24.6MPa

8. Easy to assembly and repair at site only with glues and FRP felts.

Installation Instructions

Distinguish the different Panels

Distinguish the different panels for different walls, Floor,Roof, Side walls (2 sets), Front wall, Rear Wall, and pre-install for their position.

Install the panels per instruction

Install the panels with glues one by one, from floor to front wall, then the side wall , then the roof , at last put the rear wall with tail door.

Clamp with F-shape fixture

After all the walls been installed with glue, clamp the box with F-Shape Fixture to let the Composite glue Hard , and then clean the surface and the joint edges, then a box finished.
