FUWA BPW Axle 40ft Container Transport Flatbed Semi Trailer with Air Suspension Optional
Price:
$5,000.00 - $15,000.00/units
MOQ:
3 units
Delivery Time:
Negotiable
Brand:
GET VEHICLES
Product Description

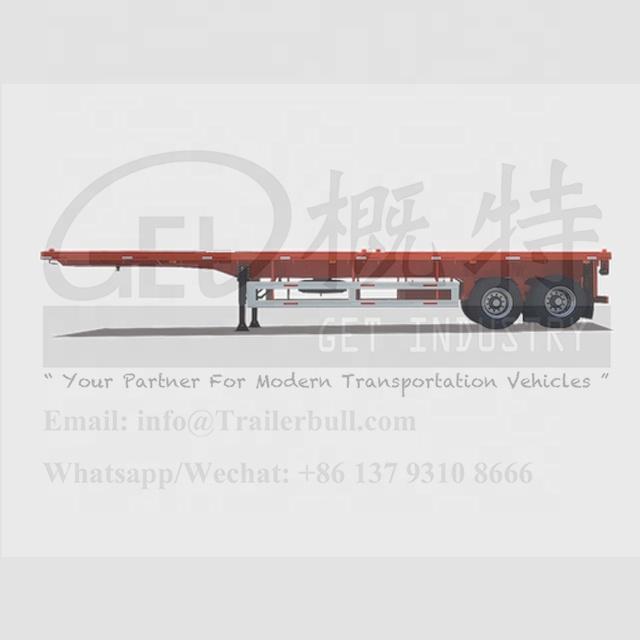

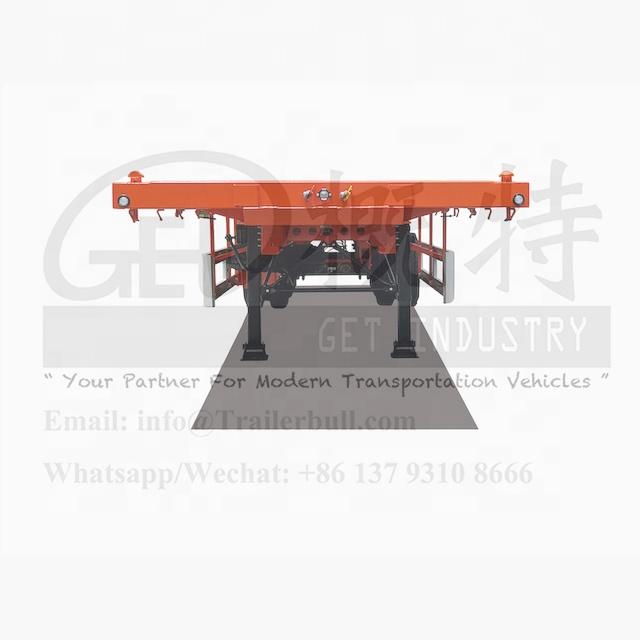

Details Images
Product Paramenters
Flat Bed Truck Trailers
Flat Bed Semi-trailers belongs to the Terminal Logistic Equipment Can be made for 20 feet and 40 feet or 45 feet or other special dimension container's transportation,With Plat Loading forms Can also belongs to the Dry Logistic equipment for normal cargos. From 2 axles to 4 axles or more , with capacity from 20T to 80T to fit all the bad working conditions in all over the world. Especially with bogie Suspension system can work at Hills Road. Flat Bed Semi-Trailer can also work tog with the inland cargo box to be an Dry Logistics box semi-trailer, with a freezer to be a Cold Chain Logistics Refrigerated semi-trailer for fresh or frozen cargos, with an Tankerer to be a Energy LogisticsTanker Monoblock Tankerer semi-trailer, With Side Pillars can be a log transport vehicles for huge or small logs. Totally , Flat Bed Semi-trailers is a another friendly trailer friends , can make friends with most of the cargo Holders and can refit for many situation and logistic demands.
2 AXLE 40 FEET FLATBED SEMI TRAILER | ||||||
1. MODEL: | GET9302TJZP | |||||
This Flat bed semi trailer is designed for transporting a 40’ ISO container and two 20ft ISO Container meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications. | ||||||
2. GENERAL | ||||||
Overall Length | 41 ft | 12,390 mm | ||||
Overall Width | 8 ft | 2,490 mm | ||||
Overall Height | 5 ft | 1,550 mm | ||||
Fifth Wheel Height | 4 ft | 1,200 mm | ||||
Kingpin Location | 4 ft | 1,150 mm | From the rear face of the front bolster | |||
Landing Gear Location | 8 ft | 2,420 mm | From the kingpin center | |||
Axle Spread | 4 ft | 1,310 mm | ||||
Tandem Location | 26 ft | 7,900 mm | From Kingpin to Front Suspension Hanger | |||
Tare Weight | 15,440 Ibm | 7,000. kg | ||||
Payload | 66,140 Ibm | 30,000. kg | ||||
3. STEEL STRUCTURE AND COMPONENTS | ||||||
Main beam | Deep: 450 mm (17.7") Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345) | |||||
Flanges | Upper Flanges: 14mm (1/2 "), Lower Flanges: 16mm (2/3 ") High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345) | |||||
Flatbed Floor | 1/8" (3mm) Thickness ASTM A572 grade 50 Checked Steel Plate Options: 1/5" ( 5mm) | |||||
Upper coupler | 1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard | |||||
Front Bolster | ASTM A572 grade 50 steel U form channel with 7'' wide x 6'' high x 5/16 thick open section, 3/8'' top plate | |||||
Rear Bolster | ASTM A572 grade 50 steel U form channel with 7'' wide x 7'' high x 5/16 thick open section, 3/8'' top plate | |||||
Rear Bumper | 100x100mm (4” x 4” ) square tube step with taper “H” section vertical member | |||||
Bar is welded to uprights and main beam. | ||||||
Twist lock | 8 Sets | 1x40ft Container and 2x20ft Container | ||||
Landing gear | 25T ( 55,000 lbs) capacity, 2-speed 19” travel with low “T” shoes | |||||
Crank handle is located on the driver’s side of the chassis. | ||||||
Suspension | mechanical tandem suspension with 3-leaf springs. Options: Air Suspension , Bogie Suspension | |||||
Axles | 150mm (6") Square axles with 13T (28,660lb) capacity, 1840mm (72.5” ) track, 420x 180mm (16.5”X7”) brake; TIMKEN bearing/seal, 37 spline, HALDEX 6.0” automatic slack adjusters, hub internally vented; 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options) Brake Type: Drum Brake ; Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF | |||||
Lubricant | Mobilith SHC007 synthetic grease lubricant with metal hubcap | |||||
Wheels | 22.5 x 8.25 hub-piloted wheels | |||||
Tires | 11R22.5-14PR tubeless type | |||||
Brake System | Dual air brake system, WABCO/HALDEX relay emergency valve, OPTIONS: ABS brake system | |||||
Phillips glad hand 12-0061 and 12-0081 and T30/30 stroke brake chamber | ||||||
3/8” blue air tube for control and 3/8” red for supply, 40L air tanks, meet FMVSS 121 | ||||||
Electrical | OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. The proof design is used for 4” LED lighting. | |||||
Painting | Abrasive blast of all metal surfaces – not less than SA-2.5 to achieve clean bare steel Surface will be coated with marine paint of minimum 70% Zinc- Rich primer and true acrylic aliphatic urethane topcoat, color optional, total thickness not less than 80μm after dry membrane | |||||
MISC | GET standard marking, document holder, conspicuity tape, 24”x27” black rubber mud flaps | |||||
Option | Hubodometer, PSI tire inflation system | |||||
Manufacturing Technique
CUSTOMIZED DESIGN
Based on full understanding and analysis about transportation environment of various regions, refer to the millions of trailers’
producing experience and customer’s private condition, we design all the trailers privately to different customers..
producing experience and customer’s private condition, we design all the trailers privately to different customers..
TBEST STEEL CONSTRUCTION
Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other
fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.
fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.
AXLE SYSTEM
High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.
SUSPENSION SYSTEM
High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition
TIRES AND RIMS
High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
from STEEL to ALUMINUM.
from STEEL to ALUMINUM.
SAFETY CONTROL SYSTEM
World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.
Company Profile
Manufacturing Products Ranges:
1. Terminal Logistics Truck Trailers:
From Mafi Trailer, Container Chassis and Skeleton Semi-trailers to Flatbed, Drop Side Semi-Trailer to delivery containers full loaded worldwide cargos to create an international value for a better urban life.
2. Energy Logistics Tankers
From Steel and Aluminum Tanker Trucks Transport the fossil fuel and The Stainless Steel Tankers for Fresh Juice and milk to support your daily City life to The Green energies Pressure Vessel for LPG, CNG, LNG and their Storage Tankers for Bottling Station to protect the environment, and create environmental values for a better Earth Future.
3. Cold Chain Logistics Trucks
From Lab Used Ultralow Temperature Cold Room and Prefabricated Modular Walk-in Cold Room to the huge Cold Storage and food processing factory to the Insulated and Refrigerated Composite Trucks with Thermoking and Carrier freezing Units for the Fresh Vegetable and frozen food, Storage and Transportation to supply a Health and Rich Tables for our better Urban Life.
4. Cargo Logistics Vehicles
From Drop-Side Trailers, Curtain-Side Trailers deliver the bulk cargos and Low Bed Semi-Trailer for the construction or heavy industry machines to The Tipper Truck and Dump Trailers deliver the Construction materials for our city infrastructure construction to build a warm living home.
5. Customized Vehicles
With our highest Technology Teams 200 Engineers ‘s full time support, we have the super power to proposal the customized Special Vehicles to solve your special Demands, Like We did Sugar Cane Trailers for Kenya and Ethiopia; Cotton Loader semi-trailer with wing covers, and the Logging Draw Bar Trailers for small Logs and Logging Trailer For Huge Logs and Car Carrier Trucks.Manufacturing Products Ranges:
1. Terminal Logistics Truck Trailers:
From Mafi Trailer, Container Chassis and Skeleton Semi-trailers to Flatbed, Drop Side Semi-Trailer to delivery containers full loaded worldwide cargos to create an international value for a better urban life.
2. Energy Logistics Tankers
From Steel and Aluminum Tanker Trucks Transport the fossil fuel and The Stainless Steel Tankers for Fresh Juice and milk to support your daily City life to The Green energies Pressure Vessel for LPG, CNG, LNG and their Storage Tankers for Bottling Station to protect the environment, and create environmental values for a better Earth Future.
3. Cold Chain Logistics Trucks
From Lab Used Ultralow Temperature Cold Room and Prefabricated Modular Walk-in Cold Room to the huge Cold Storage and food processing factory to the Insulated and Refrigerated Composite Trucks with Thermoking and Carrier freezing Units for the Fresh Vegetable and frozen food, Storage and Transportation to supply a Health and Rich Tables for our better Urban Life.
4. Cargo Logistics Vehicles
From Drop-Side Trailers, Curtain-Side Trailers deliver the bulk cargos and Low Bed Semi-Trailer for the construction or heavy industry machines to The Tipper Truck and Dump Trailers deliver the Construction materials for our city infrastructure construction to build a warm living home.
5. Customized Vehicles
With our highest Technology Teams 200 Engineers ‘s full time support, we have the super power to proposal the customized Special Vehicles to solve your special Demands, Like We did Sugar Cane Trailers for Kenya and Ethiopia; Cotton Loader semi-trailer with wing covers, and the Logging Draw Bar Trailers for small Logs and Logging Trailer For Huge Logs and Car Carrier Trucks.Manufacturing Products Ranges:

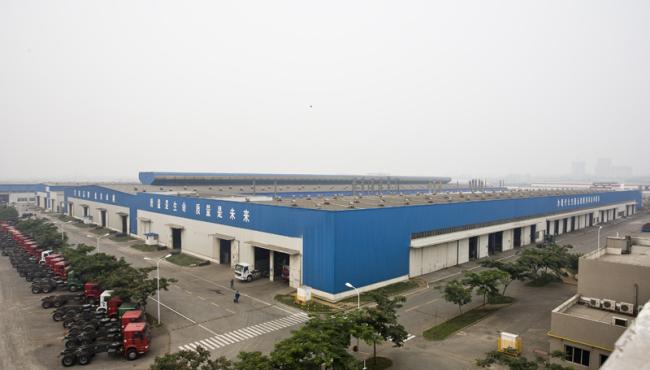

Production Workshop
Packaging Delivery
Honorary Certificate
Customer Visiting
Container Truck Trailers
From Mafi Trailer, Container Chassis and Skeleton Semi-trailers to Flatbed, Drop Side Semi-Trailer to delivery containers full loaded worldwide cargos to create an international value for a better urban life.Terminal Logistics Truck Trailers:
