Self-Propelled/Trailer Rvs DC Caravan Door for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Technical Parameters
| Color | White, black,silver grey,or customizable. |
| Frame &Panel | Powder coated high quality aluminum alloy. |
| Glass | Grey, single glazing acrylic panel, UV resistance. |
| Security mesh | Stainless 304 mesh8x11. |
| Flyscreen | High strength fiberglass mesh. |
| Vent | Labyrinth vent to prevent dust coming in. |
| Door lock | 3-points electromotive pulling lock. |
| Structure | Outer door and security door can be separated or joined tog. |
| Optional accessory | Decoration rubber seal,DC Blind. Optional accessory needs to be ordered separately. |
Specifications
| Type H x W | Overall (H+24)x(W+24) | Cut hole (MAX) (H+3)x(W+3) | Weight |
| mm | mm | Kg | |
| GET.DC-1623x622 | 1647x646 | 1626x625 | 19.0 |
| GET.DC-1750x622 | 1774x646 | 1753x625 | 20.5 |
| GET.DC-1822x622 | 1846x646 | 1825x625 | 21.0 |
1. Option 1 to 3 must be specified when placing order.
2. Option 4 should be specified, otherwise the door is suitable for being installed on the Left side of caravan.
3. Option 5-6 is for special usage doors, if not specified, normal door equipped with standard acrylic, laminated aluminum.
Specification and model
| DC | Product model |
| H W | Height from door fitting surface Width from door fitting surface |
| 2TR 4R 2TS | 2 Top Round corners door 4 Round corners door Square corners door |
| L R | Left hinge door Right hinge door |
| LS RS | Installed on the Left side of caravan, suitable for Right rudder caravan. Installed on the Right side of caravan, suitable for Left rudder caravan |
| WHITE BLACK SILVER GREY | Panel: Color |
| FP | Full laminated aluminum Panel, no acrylic. |
| NV | No Vent . |
Optional accessories

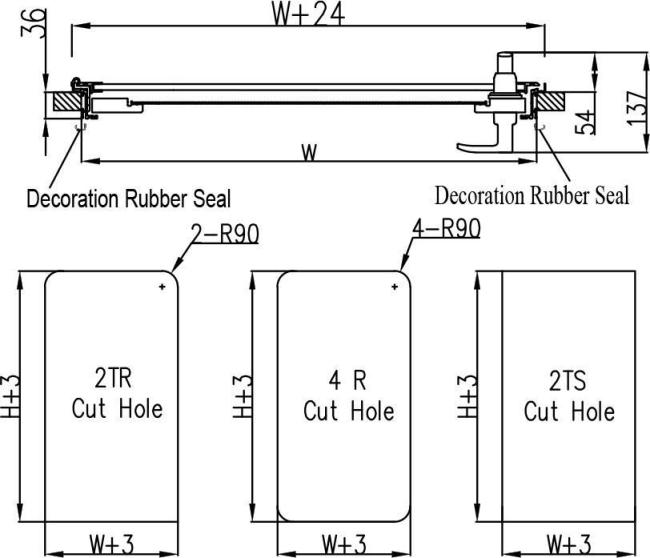

Technical Drawing
