Meat Roof Hanging Refrigerated Truck Body
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
GET VEHICLES | COLD CHAIN BOX Refrigeration Truck body ,Thanks to the modular system, our box body can be individually configured for a wide range of applications. Logistics challenges are rising with consumers' more exacting requirements. The GET COOL truck box body is a high-performance truck with box body designed to meet individual requirements, which fits all well-known truck manufacturers' chassis.
| Meat Roof Hanging Refrigeration Truck Box with Sliding Rails and SS304 Hooks for Fresh Meat Carcass Transportation | |||
| MODEL: | GET.6KDX.XRG | ||
| FRP-Pie Panel BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our FRP-Pie Panel Kits Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ºC to 15ºC. can also be refitted to be the RV MOTORHOME , expedition TRUCK BODY or Camper box with inside Furniture layout. As this box is Original German Technology , with wet-in wet process made, all the surface FRP are made with the rude Fibre glass material with an chemical process, so all the panels is sealed wtih the FRP, and made the panel as an whole like a pie. so we called FRP-Pie Modular Panel. |
|||
| SPECIAL REQUIREMENTS | |||

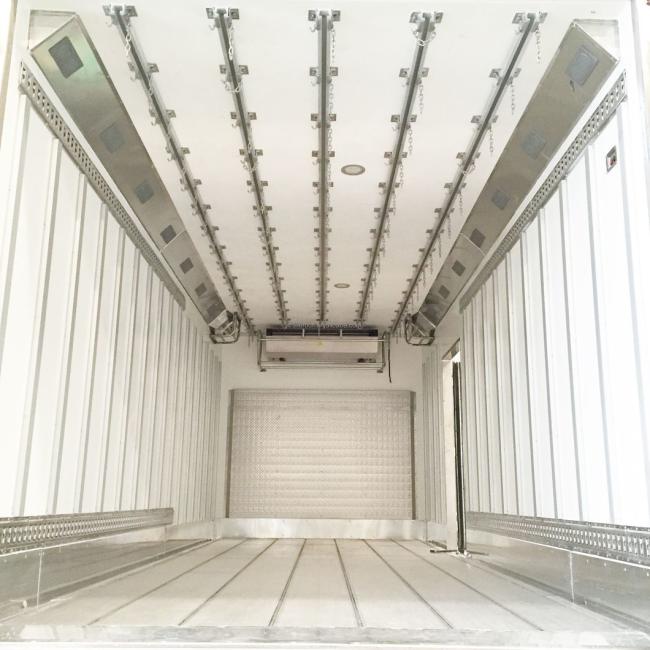

| Meat carcass hanging system | 1. meat hanger box design with 3,4,5, 6 lines of sliding rail in the roof 2. meat carcass hanger hooks with stainless steel . |
||
| Meat carcass hanging Roof | Special embedded meat carcass hanger roof panel with capacity of 4t/m to guarranty the static and dynamic capacity. | ||

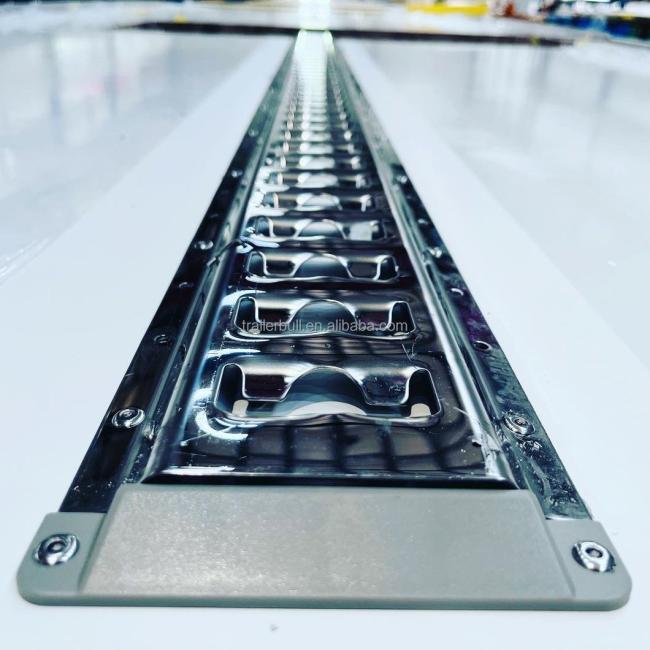

| Anchoring Rail and Hook Holder | The completely recessed anchor rail offers optimum load-securing through the complete load length. Anchoring rail and holder to keep the hanging meat not slide and shake too much during the truck running. |
||
| GENERAL PARAMETERS | |||
| K .Value for the Composite Box | 0.295 W/m2 ºC | ||
| Max. Overall Length | 48 ft | 14,750 mm | 0~14750mm can Customize |
| Max. Overall Width | 10 ft | 3,200 mm | 0~ 3200 mm can Customize |
| Max. Overall Height | 10 ft | 3,200 mm | 0~3200 mm can Customize |
| Max. Floor Thinckness | 4 .13 inch | 105 mm | Special Embeded |
| Side Wall Thickness | 3 .31 inch | 84 mm | Special Embeded |
| Front Wall Thickness | 4 .13 inch | 105 mm | Special Embeded |
| Rear Door Panel | 3 .31 inch | 84 mm | Special Embeded |
| Roof Wall | 4 .13 inch | 105 mm | Special Embeded with 4T/m capacity |
| FRP 2mm/PUR:40kg/m³±2 FRP Panels (Excluding Floor) | |||||||
| Panel Details | Wall types | Thickness | Structure( Inter.Skin + Insulation+Exter. Skin) | Remark | |||
| Side Wall Panel | 80.00mm | FDA "Approvable" CFRP + XPS + FRP | |||||
| Front Wall Panel | 80.00mm | FDA "Approvable" CFRP + XPS + FRP | With Refrigeration Units Installation Embedded Beam | ||||
| Rear Wall Panel | 80.00mm | FDA "Approvable" CFRP + XPS + FRP | with Door Hinger Installation Embedded Strengthen | ||||
| Roof Wall Panel | 90.00mm | FDA "Approvable" CFRP (Interior) + XPS + Anti UV FRP (exterior) | |||||
| Floor Panel | 80.00mm | Aluminum Air Duct (Interior)+PUR (injection Foaming 45kg/m³)+FRP | With Cross Beam Embedded | ||||
| Standard: Floor with Alu.Duct for America Market Best Cold Air Circle |
 |
 |
 |

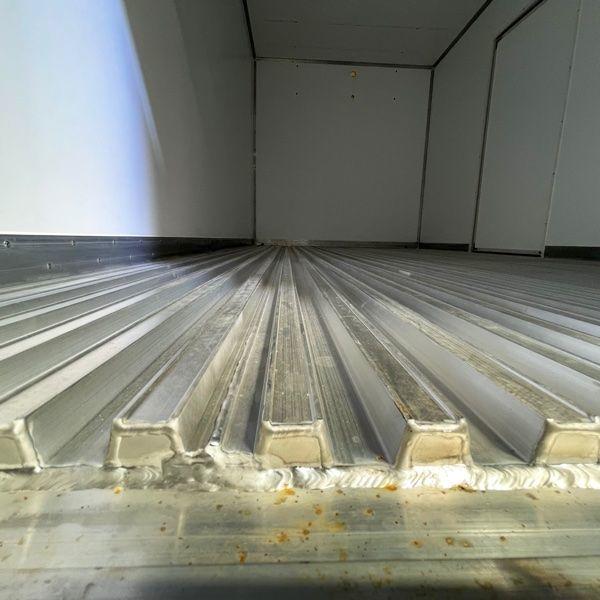

Standard Floor : Aluminum Duct
(H=15mm,20mm,35mm,50mm)

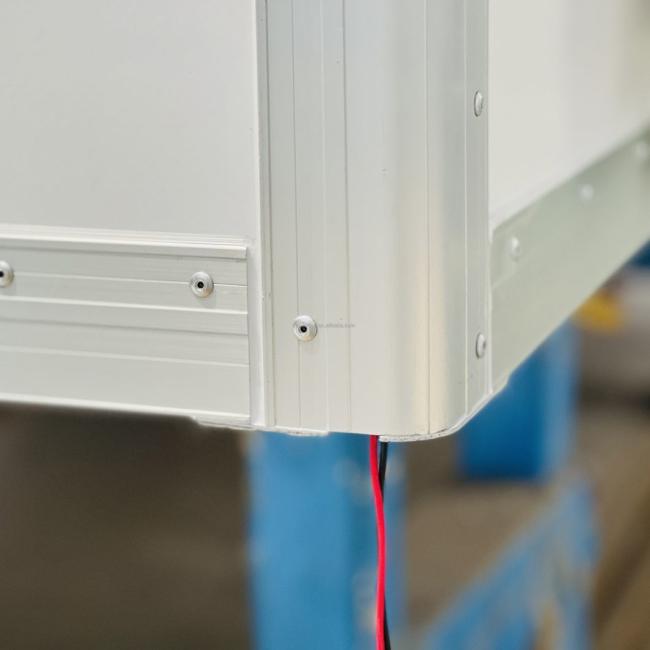

Aluminum Extrusion
90 Degree Aluminum Extrusion, L shap or Round Corner Choice
Cargo Fix Racks
Stainless Steel material for cargo fix installed on the side wall interior.
What is refrigerated truck box body?
Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.
Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers' request and designing request.

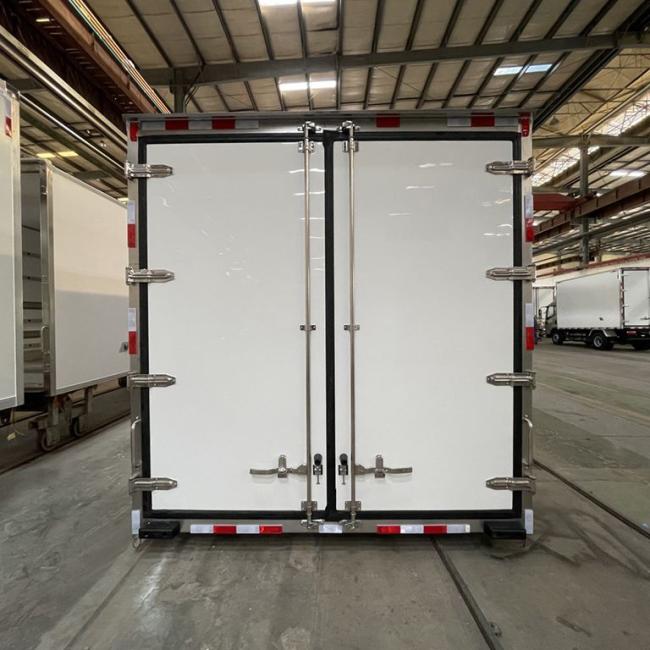

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.
Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers' request and designing request.
The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.
What's the material of your refrigerated truck body?
We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.
If want the price, what should offer us the information?
You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.
basic information.
What is the CKD and CBU means ?
CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
How long life of your truck body?
It depends how will use it. Normally, the life is about 15~20 years
