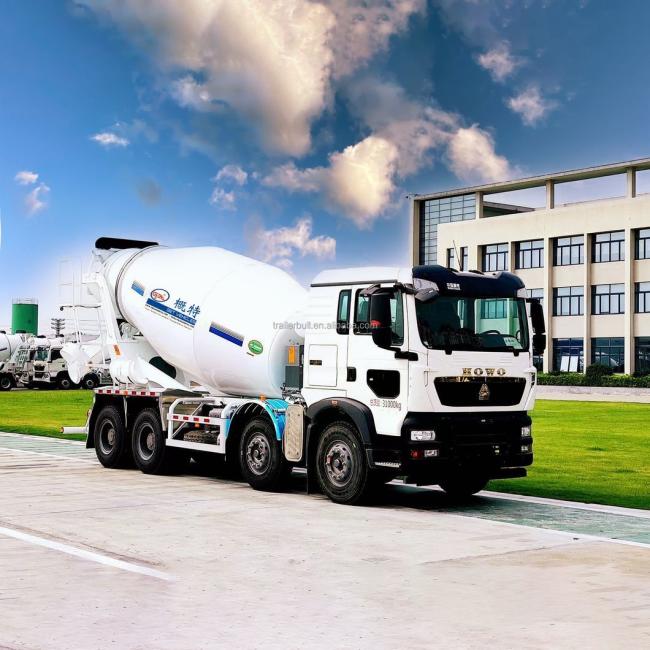

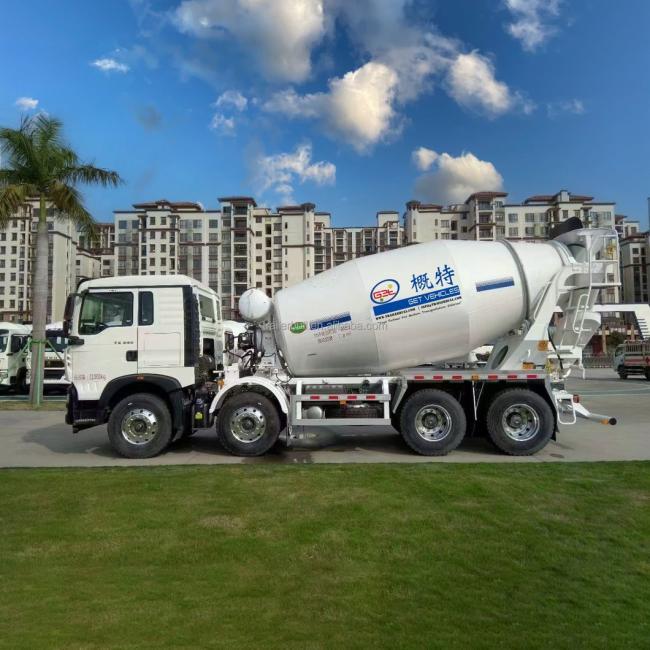

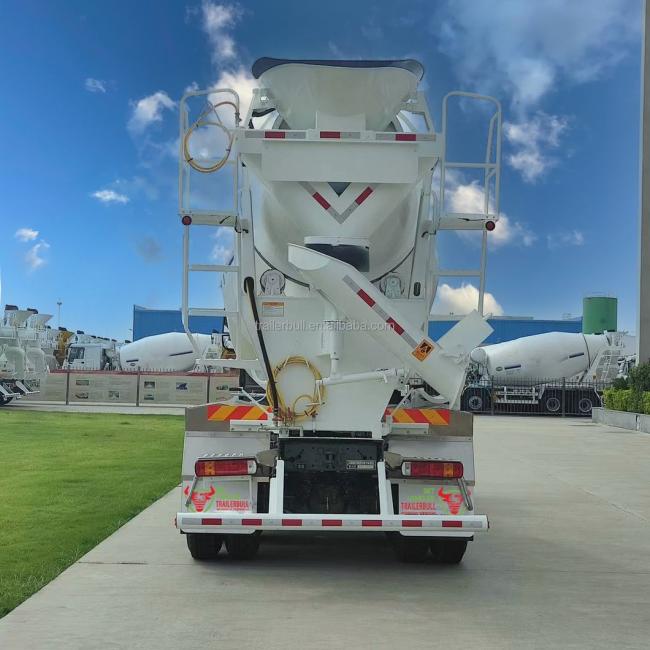

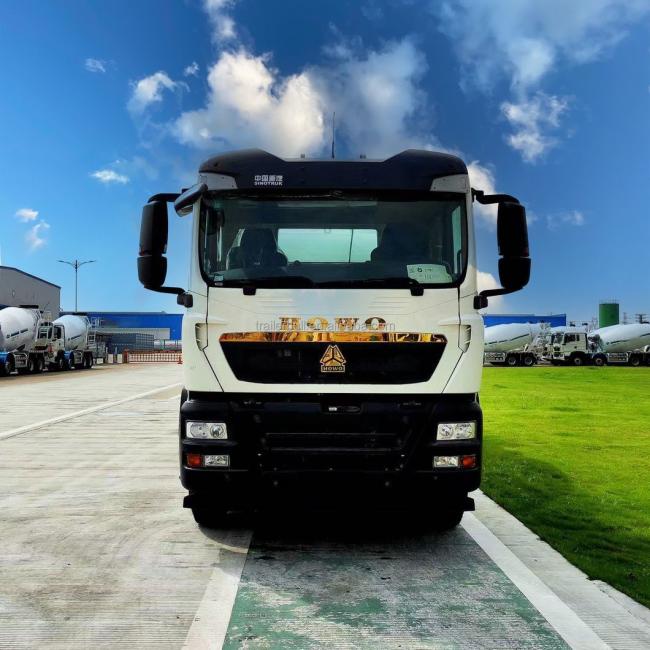

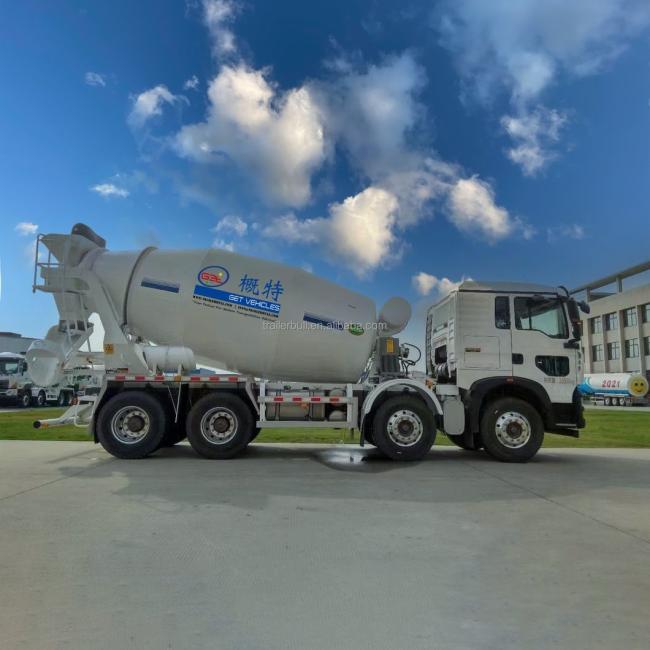

10cbm 350HP Diesel Concrete Mixer Truck With Sinotruk HOWO Tx 8X4 Heavy Duty Truck Chassis
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
|
vehicle Type
|
|
Concrete Mixer Truck
|
|
|
Drive type
|
|
8x4
|
|
|
Dimension(L×W ×H)unloaded
|
|
9960×2520×3965
|
|
|
Mix round cubage (m3)
|
|
10
|
|
|
Rotary speed of the drumr/min
|
|
0-18
|
|
|
Input speedm3 /min
|
|
≥3
|
|
|
Output speedm3 /min
|
|
≥3
|
|
|
The rate of remaining
|
|
≤1%
|
|
|
Hydraulic system
|
|
Pump/ Motor/Retarder IMPORT PARTS
|
|
|
Approaching angle/Departure angle°
|
|
19/16
|
|
|
Overhang(front/rear) (mm)
|
|
1500/2260
|
|
|
Wheel base (mm)
|
|
1800+3025+1400
|
|
|
Max speedkm/h
|
|
90
|
|
|
Curb weightkg
|
|
13430
|
|
|
Loading Weightkg
|
|
18270
|
|
|
Engine
|
Model
|
MC07H.35-60/WP8.350E61Awater-cooledfour strokes6 cylinders in line with water coolingturbocharged and inter-cooling, directly
injection |
|
|
(Steyr technology)
|
Make
|
SINOTRUK
|
|
|
|
Fuel type
|
Diesel
|
|
|
|
Power, maxkw/rpm
|
257/2200
|
|
|
|
Emission
|
EURO V/IV
|
|
|
Fuel tanker capacityL
|
|
300
|
|
|
Transmission
|
Model
|
HW15710L10 forward&2 reverse10
|
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
|
(emergency brake)
|
|
|
|
|
Auxiliary brake
|
engine exhaust brake
|
|
|
Steering system
|
Model
|
ZF8098
|
|
|
Front axle
|
cast steel I-shaped front axle VGD71
|
|
|
|

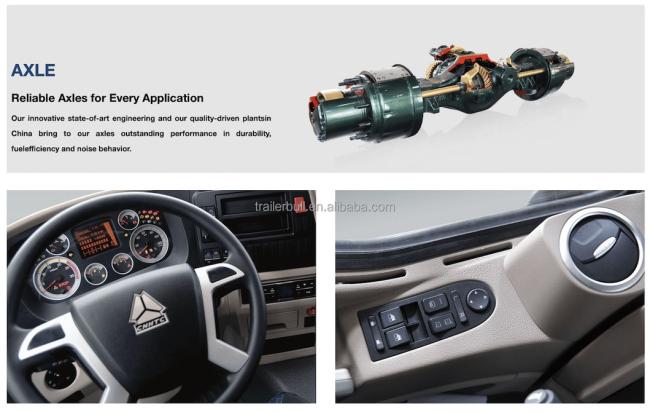

Rear axle
|
MCJ11 double reduction tandem axles with differential locks between wheels and axles, ratio: 5.29
|
|
|
|
Tire
|
12.00R20
|
|
|
|
Electrics
|
Battery
|
2X12V/165Ah
|
|
|
|
Alternator
|
28V-1500kw
|
|
|
|
Operating voltage
|
24V, negative grounded
|
|
|
|
Starter
|
7.5Kw/24V
|
|
|
Cab
|
TX-M(525MM single bunk),TX-F(749MM single bunk), all-steel forward control,55ºhydraulically tiltable to the front,2- arm
windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
|

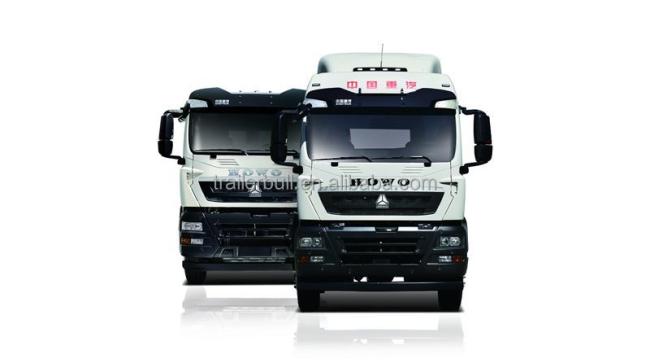

HERITAGE OF THE CLASSIC
100% OF NEW EXPERIENCE
100% OF NEW EXPERIENCE
SINOTRUK has fully upgraded the HOWO model based on its more than ten years of successful operation experience. Based on its
existing advantages and characteristics, as well as by combining, upgrading and reforming MAN-oriented technology and SINOTRUK
technology, the new HOWO product series TX series model will be put on the market in 2020.
existing advantages and characteristics, as well as by combining, upgrading and reforming MAN-oriented technology and SINOTRUK
technology, the new HOWO product series TX series model will be put on the market in 2020.

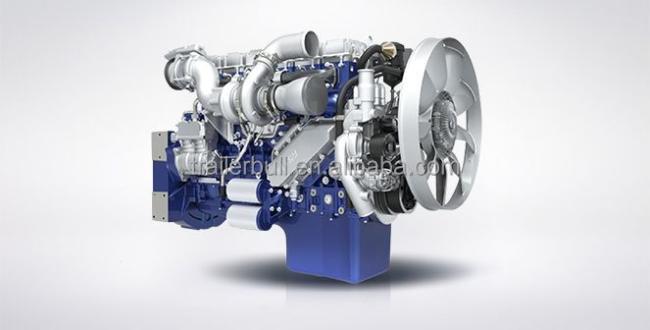

ENGINE
High reliabilitySurging PowerLow Consumption
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.

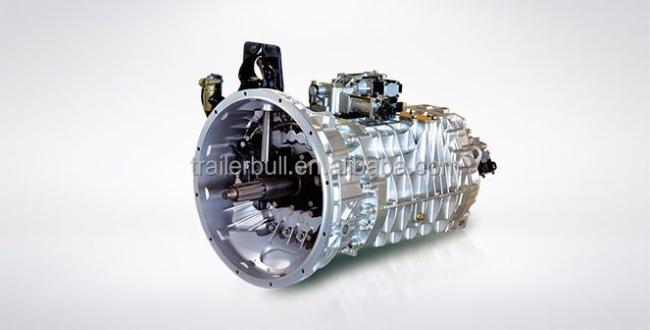

TRANSMISSION
Classic, mature and reliable
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.
|
MAIN SPECIFICATION OF 10 CBM MIXER
|
|
|
||
|
The material of the Agitator is the mix steel
|
|
BW300TP
|
||
|
Thickness of the tank body mm
|
End plate cover
|
8
|
||
|
|
Front Conical parts
|
5
|
||
|
|
Rear Conical parts
|
5
|
||
|
|
Cylindrical parts
|
5
|
||
|
|
Drum Bottom
|
5
|
||
|
over length mm
|
|
5250
|
||
|
Max. Diameter mm
|
|
2360
|
||
|
Mixing Tanker Volume m3
|
|
10
|
||
|
Draght angle°
|
|
11
|
||
|
Rotation speed rpm
|
|
1-12
|
||
|
Feeding speed m3/min
|
|
≥3
|
||
|
Discharging speed m3/min
|
|
≥2
|
||
|
Surplus rate %
|
|
≤0.5
|
||
|
Water tank volume L
|
|
450
|
||
|
reduction gears
|
|
TMG 51.2/PMP6.5
|
||
|
Hydraulic Pump
|
|
SUNNY 90 /PMH P90
|
||
|
Hydraulic Motor
|
|
SUNNY 90 /PMH P90
|
||
BULK VESSEL , ROL-ROL
