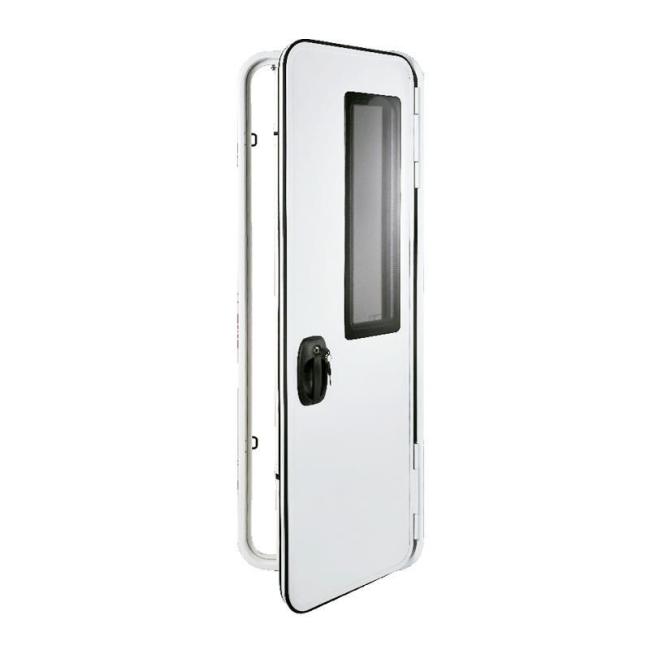

Self-Propelled/Trailer Rvs Evd Motorhome Door for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features:
The door has ventilation, light transmission, anti-mosquito, sound insulation, heat insulation and good waterproof properties. The exterior door and security door can be combined or separated.
Technical Parameters
| Frame | High quality aluminum alloy . |
| Panel | Laminated aluminum sheet with powder coated and insulation material. |
| Window | Double glazing acrylic from Europe. E-mark. |
| Flyscreen | RAL9001 ASA frame with black gauze. |
| Hinges | Safty Aluminum hinges for motor vehiches. |
| Lock | 2-point locking system made in Europe,M1 tested. |
| Others | ABS inner shell with abat vent wastebin and solid handle. |
| Installation | Clip with sheet metal Installation. Suitable for 30-36, 37-41, 42-45mm thick walls. |
Specifications
| Type H x W |
Cut hole (MAX) (H+3) x (W+3) |
Flyscreen door (H+60)x(W+73) |
| mm | mm | |
| GET.EVD-1810x600 | 1813x603-R85 | 1870x673 |
Type Description
| EVD | Product model |
| H W |
Height from door fitting surface Width from door fitting surface |
| L R |
Left hinge. Right hinge. |
| IR | Interface remote control. |
Technical Drawing
