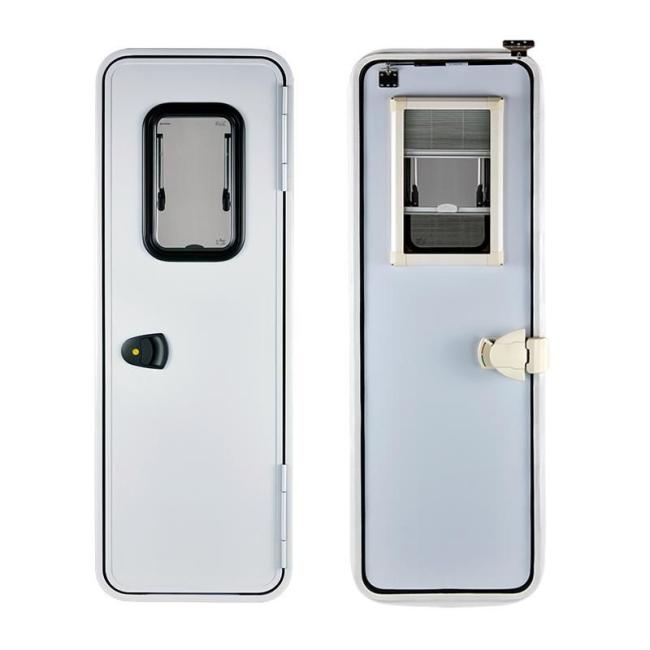

Self-Propelled/Trailer Rvs Evd1-EV Motorhome Door for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features:
European-made single-point double bolt lock, passed EU M1 safety test. High-strength aluminum alloy profiles, double-glazed sliding windows.
Technical Parameters
| Frame | High quality aluminum alloy. |
| Panel | Laminated aluminum sheet with powder coated and insulation material. |
| Window | Double glazing acrylic windows. |
| Lock | 1-point locking system, made in Europe, M1 tested. |
| Hinges | Safty Aluminum hinges for motor vehiches. |
| Installation | suitable for wall thickness 30~36mm,37~41mm,42~45mm. |
Specifications
| Type H x W |
Cutout(MAX) (H+3)x(W+3) |
| mm | |
| GET.EVD1-1810x600 | 1813x603-R90 |
| GET.EVD1(TR)-1600x622 | 1603x625-R625 |
| GET.EVD1(TR)-1300x622 | 1303x625-R625 |
Type Description
| EVD1 EVD1(TR) |
1-Point lock door 1-Point lock round door |
| H W |
Height from door fitting surface Width from door fitting surface |
| L R |
Hinge at Left Hinge at Right |
| EV | EV window |
Technical Drawing
