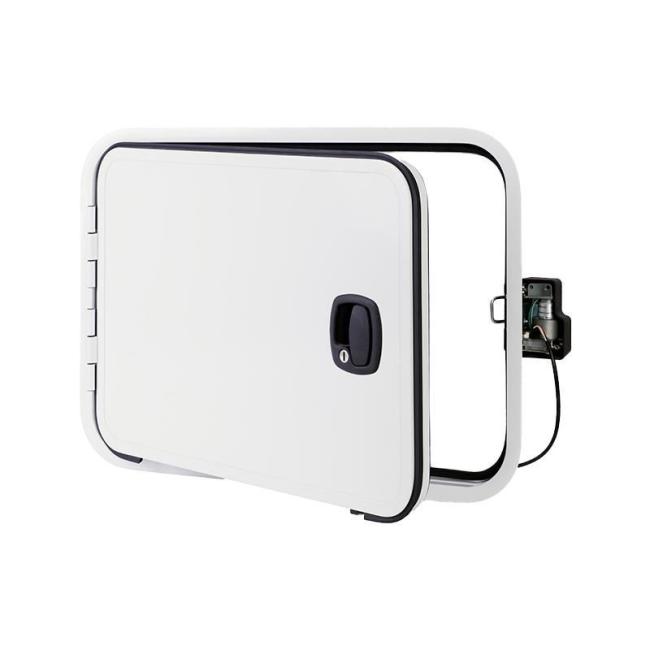

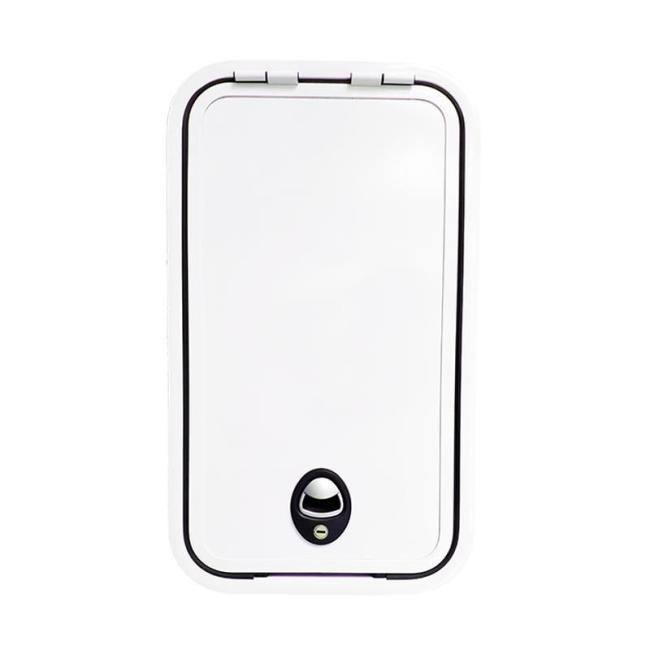

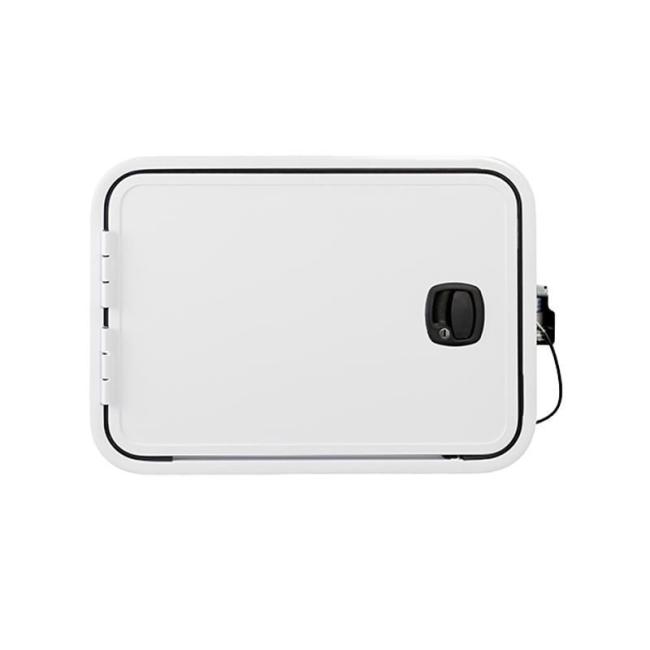

Self-Propelled/Trailer Rvs Aluminum Alloy SD006 Service & Boot Door for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
![Self-Propelled/Trailer Rvs Aluminum Alloy SD006 Service & Boot Door for RV Truck Camper Motorhomes DIY]()
![Self-Propelled/Trailer Rvs Aluminum Alloy SD006 Service & Boot Door for RV Truck Camper Motorhomes DIY]()
![Self-Propelled/Trailer Rvs Aluminum Alloy SD006 Service & Boot Door for RV Truck Camper Motorhomes DIY]()
Technical Parameters
| Color | Powder coated White/black/silvergrey or customizable. |
| Frame | High quality aluminum alloy. |
| Panel | Laminated aluminum sheet with powder coated and insulation material. |
| Hinge | Aluminum alloy hinge. |
| Lock | Self-tight mechanical lock (One lock if dimension ≤ 700 at lock side. ) |
| Functions | Fine exterior, esay installation, durable, reliable, and suitable for rough cut hole, open 180 degree. Gas struts are optional (H ≥ 400). |
| Installation | Clip with sheet metal Installation. Standard wall thickness 24-29, 30-36, 37-40, note when place orders. |
Specifications
by size::(H-48)x (W-48)| Type H x W | Cutout(MAX) (H+3)x (W+3) |
| mm | |
| GET.SD006-300x300 | 303x303 |
| GET.SD006-300x400 | 303x403 |
| GET.SD006-300x500 | 303x503 |
| GET.SD006-300x600 | 303x603 |
| GET.SD006-300x700 | 303x703 |
| GET.SD006-300x900 | 303x903 |
| GET.SD006-400x400 | 403x403 |
| GET.SD006-400x500 | 403x503 |
| GET.SD006-400x600 | 403x603 |
| GET.SD006-400x700 | 403x703 |
| GET.SD006-400x800 | 403x803 |
| GET.SD006-400x900 | 403x903 |
| GET.SD006-400x1000 | 403x1003 |
| GET.SD006-400x1200 | 403x1203 |
| GET.SD006-500x500 | 503x503 |
| GET.SD006-500x600 | 503x603 |
| GET.SD006-500x700 | 503x703 |
| GET.SD006-500x800 | 503x803 |
| GET.SD006-500x900 | 503x903 |
| GET.SD006-500x1000 | 503x1003 |
| GET.SD006-500x1100 | 503x1103 |
| GET.SD006-500x1300 | 503x1303 |
| GET.SD006-600x600 | 603x603 |
| GET.SD006-600x700 | 603x703 |
| GET.SD006-600x800 | 603x803 |
| GET.SD006-600x900 | 603x903 |
| GET.SD006-600x1000 | 603x1003 |
| GET.SD006-700x700 | 703x703 |
| GET.SD006-700x800 | 703x803 |
| GET.SD006-700x900 | 703x903 |
| GET.SD006-700x1000 | 703x1003 |
| GET.SD006-700x1100 | 703x1103 |
| GET.SD006-800x800 | 803x803 |
| GET.SD006-800x900 | 803x903 |
| GET.SD006-800x1000 | 803x1003 |
| GET.SD006-800x1300 | 803x1303 |
| GET.SD006-900x1000 | 903x1003 |
| GET.SD006-1000x1000 | 1003x1003 |
| GET.SD006-1400x1400 | 1403x1403 |
Type Description
| SD006 | Type |
| H W | Height from door fitting surface Width from door fitting surface |
| T B L R | ndicates that the hinges are located at the top of the hatch respectively. Indicates that the hinges are located at the bottom of the hatch respectively. Indicates that the hinges are located at the left of the hatch respectively. Indicates that the hinges are located at the right of the hatch respectively. |
| NG G | Indicates respectively without gas spring Indicates respectively without with gas spring |
| WH/BL/GR | Respectively indicating the color is white/black/ silver gray |
Stands for the size of window fitting surface 500x800mm, hinges at top, with air struts and white color.
Technical drawing
