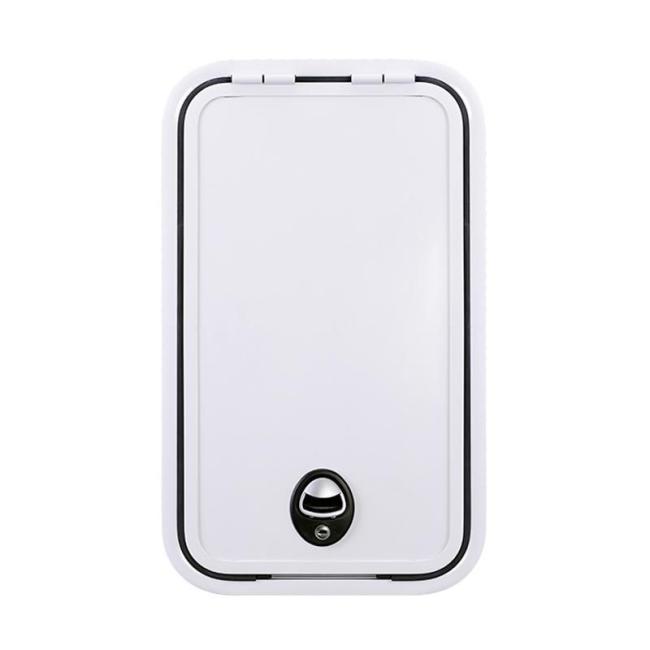

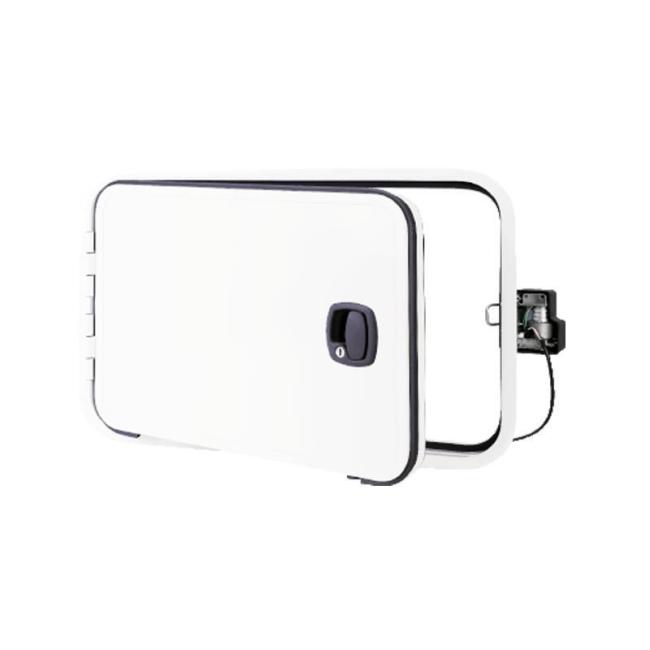

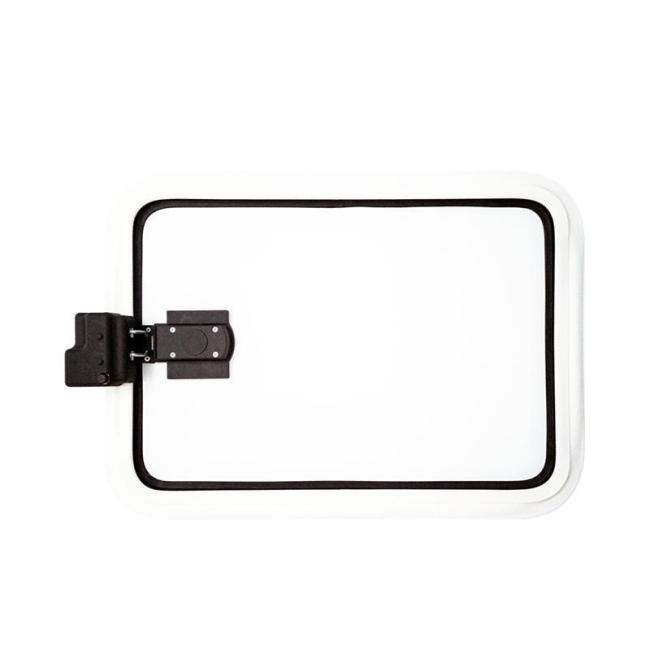

Self-Propelled/Trailer Rvs Aluminum Alloy SD008 Service & Boot Door for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Technical Parameters
| Color | Powder coated White/black/silver grey |
| Frame | High quality aluminum alloy. |
| Panel | Laminated aluminum sheet with powder coated and insulation material. |
| Hinge | Aluminum alloy hinge. |
| Lock | ACS electric magnetic lock (One lock if dimension ≤ 700 at lock side. ) |
| Main Functions | Protrude 7mm from the wall. The way to open door: Key, Switch button, Mobile APP , Remote controller, etc. |
| Installation | Clip with sheet metal Installation. Wall thickness: 31- 36, 37-38, must be specified when place order. |
Specifications
| Type H x W |
Cutout(MAX) (H+3)x (W+3) |
| mm | |
| GET.SD008-300x300 | 303x303 |
| GET.SD008-300x400 | 303x403 |
| GET.SD008-300x500 | 303x503 |
| GET.SD008-300x600 | 303x603 |
| GET.SD008-300x700 | 303x703 |
| GET.SD008-300x900 | 303x903 |
| GET.SD008-400x400 | 403x403 |
| GET.SD008-400x500 | 403x503 |
| GET.SD008-400x600 | 403x603 |
| GET.SD008-400x700 | 403x703 |
| GET.SD008-400x800 | 403x803 |
| GET.SD008-400x900 | 403x903 |
| GET.SD008-400x1000 | 403x1003 |
| GET.SD008-400x1200 | 403x1203 |
| GET.SD008-500x500 | 503x503 |
| GET.SD008-500x600 | 503x603 |
| GET.SD008-500x700 | 503x703 |
| GET.SD008-500x800 | 503x803 |
| GET.SD008-500x900 | 503x903 |
| GET.SD008-500x1000 | 503x1003 |
| GET.SD008-500x1100 | 503x1103 |
| GET.SD008-500x1300 | 503x1303 |
| GET.SD008-600x600 | 603x603 |
| GET.SD008-600x700 | 603x703 |
| GET.SD008-600x800 | 603x803 |
| GET.SD008-600x900 | 603x903 |
| GET.SD008-600x1000 | 603x1003 |
| GET.SD008-700x700 | 703x703 |
| GET.SD008-700x800 | 703x803 |
| GET.SD008-700x900 | 703x903 |
| GET.SD008-700x1000 | 703x1003 |
| GET.SD008-700x1100 | 703x1103 |
| GET.SD008-800x800 | 803x803 |
| GET.SD008-800x900 | 803x903 |
| GET.SD008-800x1000 | 803x1003 |
| GET.SD008-800x1300 | 803x1303 |
| GET.SD008-900x1000 | 903x1003 |
| GET.SD008-1000x1000 | 1003x1003 |
| GET.SD008-1400x1400 | 1403x1403 |
Type Description
| SD008 | Type |
| H W |
Height from door fitting surface Width from door fitting surface |
| T L R |
Indicates that the hinges are located at the top of the hatch respectively. Indicates that the hinges are located at the left of the hatch respectively. Indicates that the hinges are located at the right of the hatch respectively. |
| WH/BL/GR | Respectively indicating the color is white/black/ silver gray |

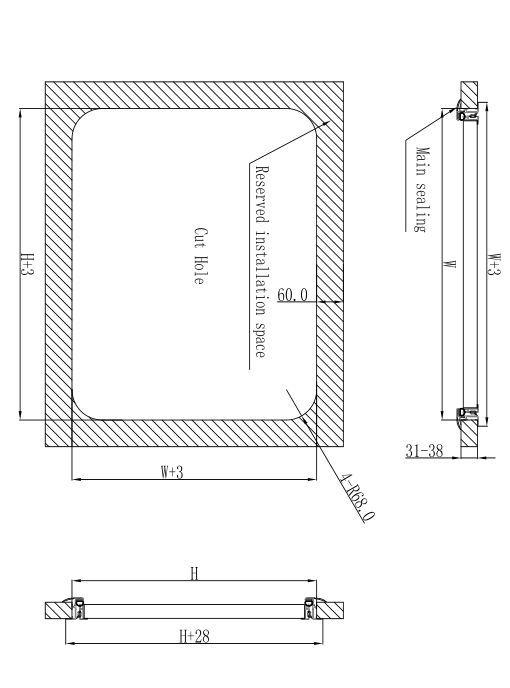

Technical drawing
