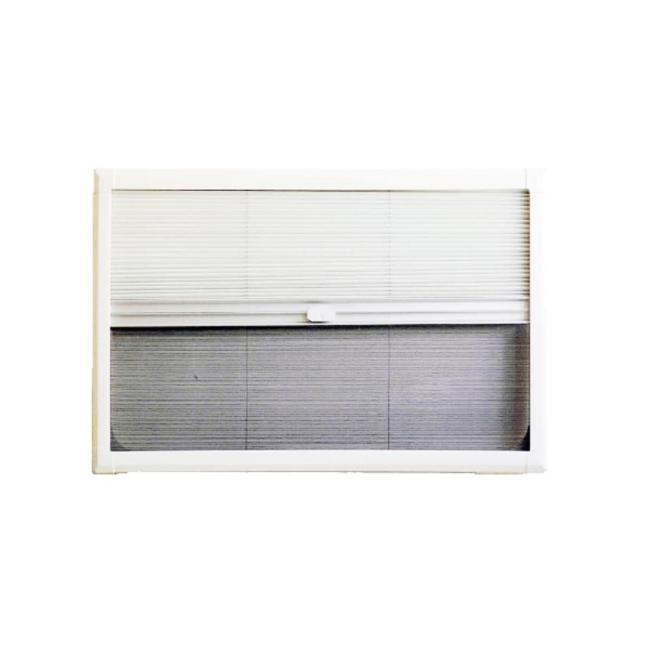

Self-Propelled/Trailer Rvs Eurovision3 Curved Window (Outer Flat and Inner Formed) for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features
The window has a radius of R5000mm which is suitable for curved wall RV. Open,close,ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can be used as emergency exit, when the screen and blind are unlocked and window open.Simple structure, easy installation and operation, durable and reliable.
Technical Parameters
| frame | Powder coated high quality aluminum alloy with radius R=5000. |
| color | White, black,silver grey,or customizable. |
| Glass | Dark grey, double glazing curved acrylics with radius R=5000, UV resistance,certified by Europe ECE standards. Outer pane flat, inner pane formed. |
| Blind panel | Composed from high strength fiberglass mesh and sunlight reflective blind, curved EVBF2 frame with radius R=5000. |
| Open | Telescopic strut stays open at 10 and 35 degrees for 300mm high windows while all other sizes stay at 20, 40 and 60 degrees (see diagram below) |
| Installation | suitable for four wall thickness ranges 24-34, 35-44, 45-54, 48-58mm. The inner frames of windows will vary based on the wall thickness range. So it is necessary to specify the wall thickness when placing order. |
Specifications
| Type H x W | Blind (H+75)x (W+42) | Cut hole (H+3)x (W+3) | Weight |
| mm | mm | Kg | |
| GET.EV3-300x500 | 375x542 | 303x503 | 4.5 |
| GET.EV3-550x700 | 625x742 | 553x703 | 7.5 |
| GET.EV3-500x900 | 575x942 | 503x903 | 8.5 |
| GET.EV3-500x1200 | 575x1242 | 503x1203 | 10.8 |
Technical drawing
