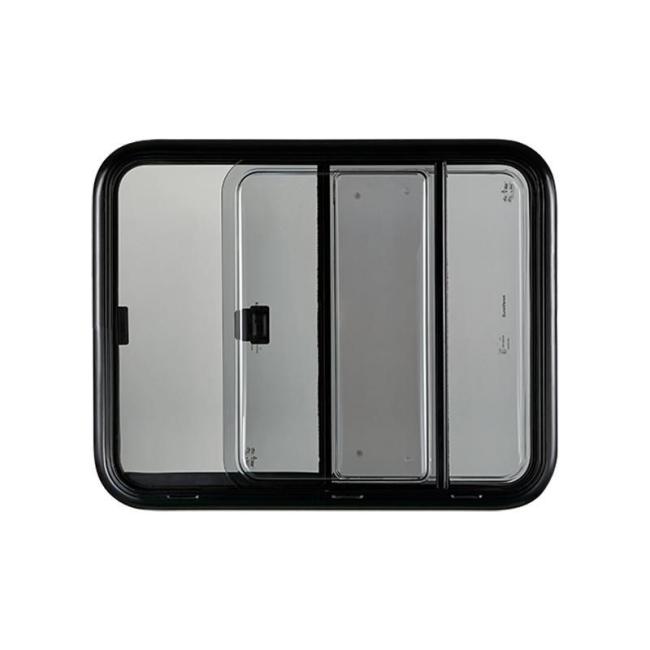

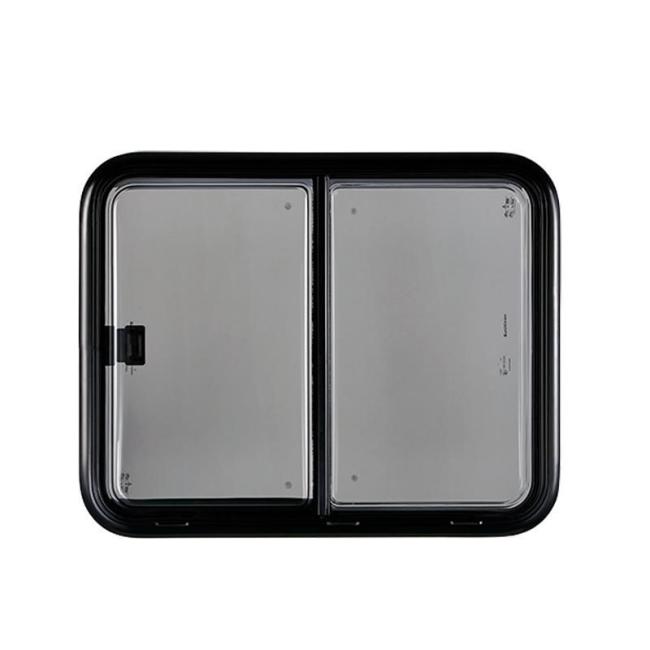

Self-Propelled/Trailer Rvs Ws20c1 Double Glazed Sliding Window for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features
Open, close, ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as emergency exit, when the screen and blind are unlocked and window open. Simple structure, easy installation and operation, durable and reliable with many available sizes.
Technical Parameters
| Frame | Powder coated high quality aluminum alloy. |
| Frame Color | White, black, silver grey, or customizable. |
| Glass | Grey, double glazing acrylic panel, UV resistance, certified by Europe ECE standards |
| Blind Panel | Composed from high strength fiberglass mesh, and sunlight reflective blind. |
| Open | Open by sliding one panel to opposite direction. |
| Installation | suitable for three wall thickness ranges 24-34, 35-44, 45-54mm. |
Specifications
| Type H x W |
Overall (H+28)x (W+28) |
Cut hole (H+3)x (W+3) |
Weight Kg |
| mm | mm | Kg | |
| GET.WS20C1-300x500 | 328x528 | 303x503 | 5.2 |
| GET.WS20C1-300x900 | 328x928 | 303x903 | 8.3 |
| GET.WS20C1-350x600 | 378x628 | 353x603 | 6.8 |
| GET.WS20C1-450x800 | 478x828 | 453x803 | 9.4 |
| GET.WS20C1-450x1100 | 478x1128 | 453x1103 | 12.3 |
| GET.WS20C1-550x700 | 578x728 | 553x703 | 9.4 |
| GET.WS20C1-550x900 | 578x928 | 553x903 | 12.3 |
| GET.WS20C1-550x1100 | 578x1128 | 553x1103 | 13.9 |
Note: 1.The overall size and weight contain blind panel.
2. Left and right windows are different. Please note that when place orders.
Type Description
| WS20C1 | Type |
| H x W | Height from door fitting surface Width from door fitting surface |
| L R |
Left window Right window |
| WH BL GR |
White Black silver grey |
Technical drawing
