Self-Propelled/Trailer Rvs Triple Panoramic Front Window for RV Truck Camper Motorhomes DIY
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features

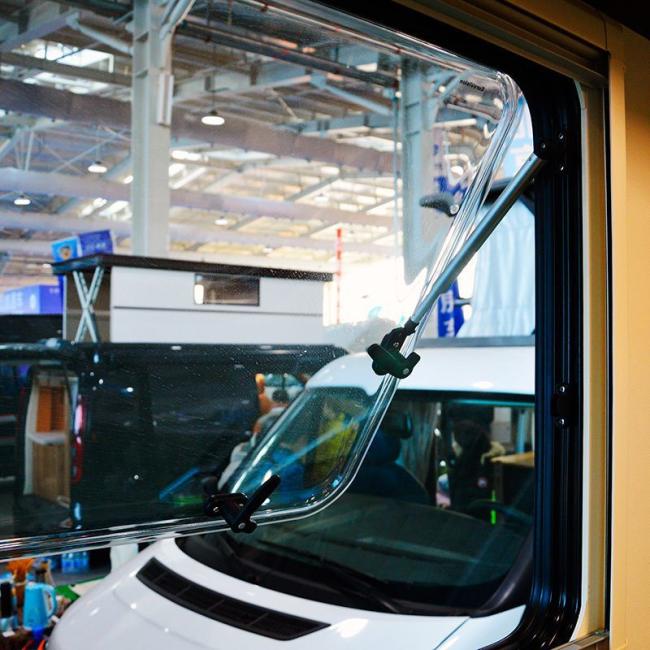

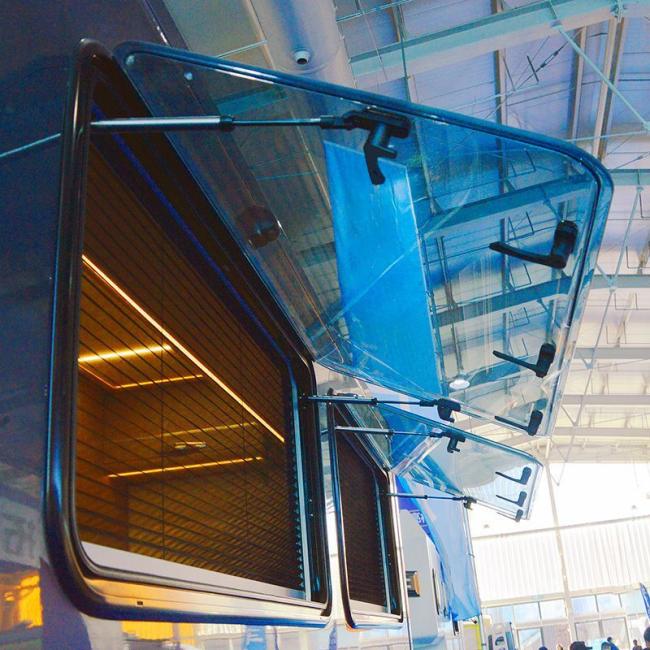

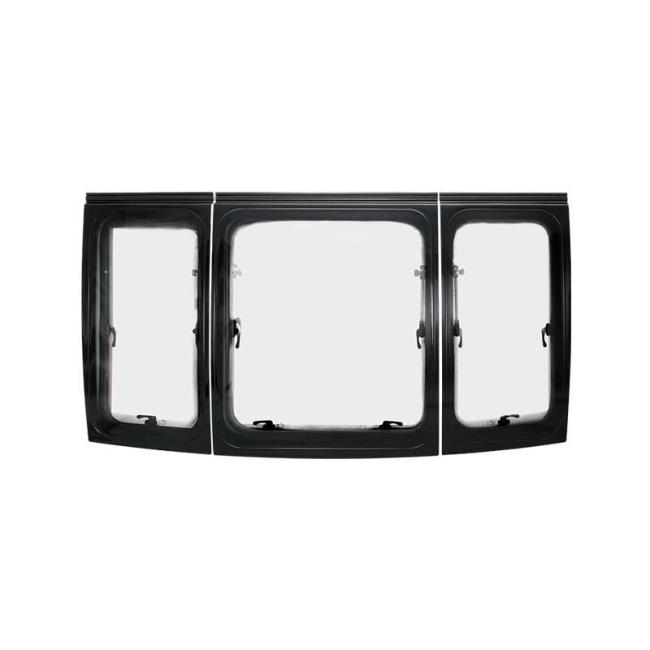

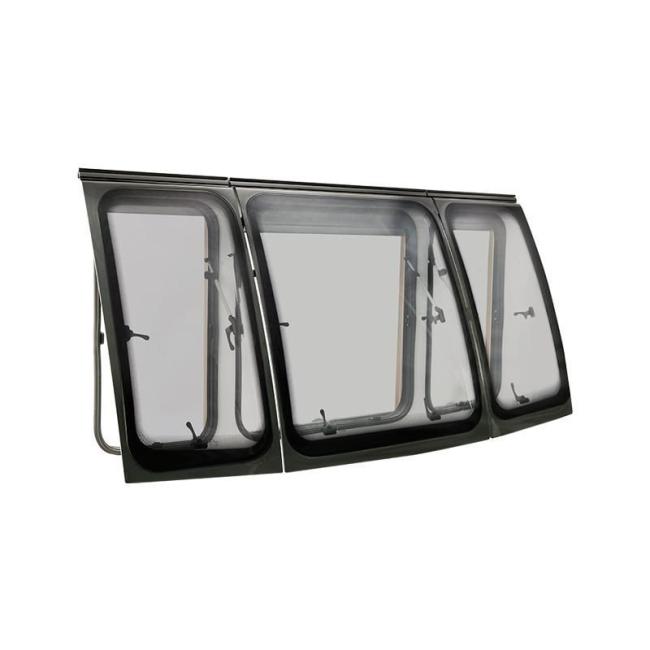

FW3 window is composed three single windows: left,middle and right windows. Frameless design and clever configuration make it looks like one window, but in function,the three windows can be opened and closed individually at your will.The dark grey acrylic color makes it more privacy. It fits with two-step struts, and EVBF2 blind and flyscreen which has the funtions of shading, insect control and ventilation.Its unique features are beautiful appearance, large lighting area, double hollow acrylics for sound and heat insulation, UV resistance and good waterproof performance.
Technical Parameters
| Installation | Its curved shape is suitable for curved front wall with wall thickness 31-32mm, 36-37mm. Its mounting surface is flat, so the mounting is very easy with very good water sealing. |
Specifications
| Type H x W | Acrylic size (H+153) x (W+93) | Cut hole H x W | Weight |
| mm | mm | Kg | |
| GET.FW3L-798x395 | 908x498 | 798x395 | 5.5 |
| GET.FW3M-805x770 | 992x858 | 805x770 | 9.3 |
| GET.FW3R-798x395 | 980x498 | 798x395 | 5.5 |
Technical drawing
