RV Truck Camper Motorhomes DIY Self Propelled / Trailer Rvs FHD Fuel Filler Door
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Features

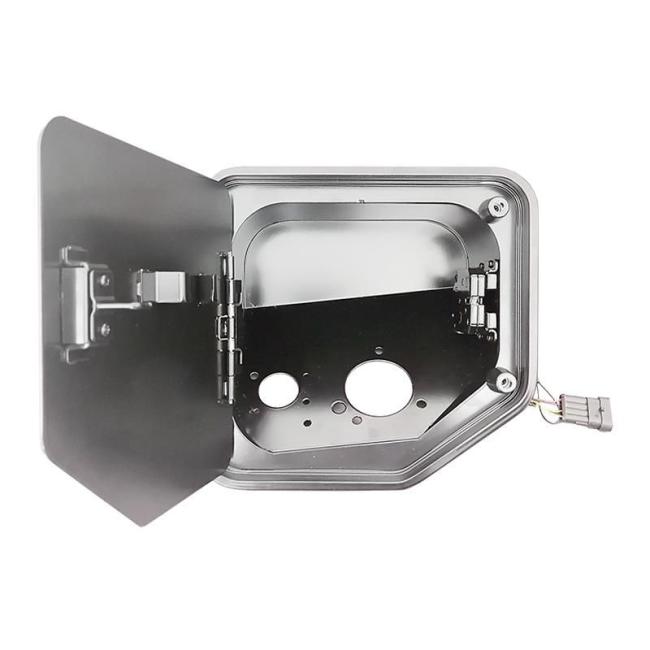

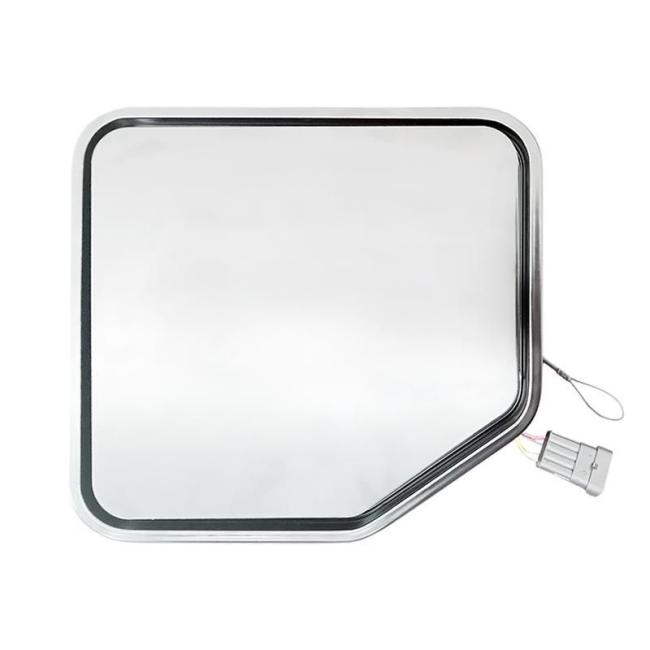

The Fuel Filler Door is a sophisticated component designed for convenience and security. Featuring a locking mechanism for outer door protection, the addition of a torsion spring on the hinge shaft enables the outer door to effortlessly spring open upon power activation. With a panel height just 6mm above the body, this door seamlessly integrates into the vehicle's exterior. The extended waterproof plug connector ensures easy installation and removal, adding to the practicality and user-friendly nature of this innovative design.
Technical Parameters
| Material | High strength aluminum alloy |

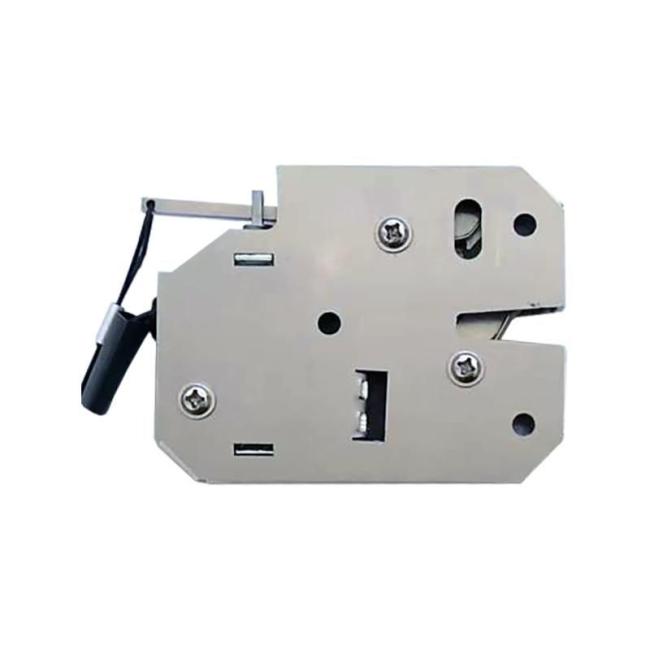

| Lock | DC-12V stainless steel electromagnetic lock, built-in micro switch, signal conduction when locked, signal disconnects when unlocking, the main control system monitors the lock status according to the signal status, with a manual pull rope to unlock. |
| Open | 100° |
Specifications
| Type H x W |
Overall (H+12) x (W+12) |
Cut hole (H+3) x (W+3) |
Weight |
| mm | mm | Kg | |
| GET.FHD-256x271 | 268x283 | 259x274 | 1.5 |
Type Description
| FHD | Type |
| H x W | Height from door fitting surface Width from door fitting surface |
| WH BL |
White Black |

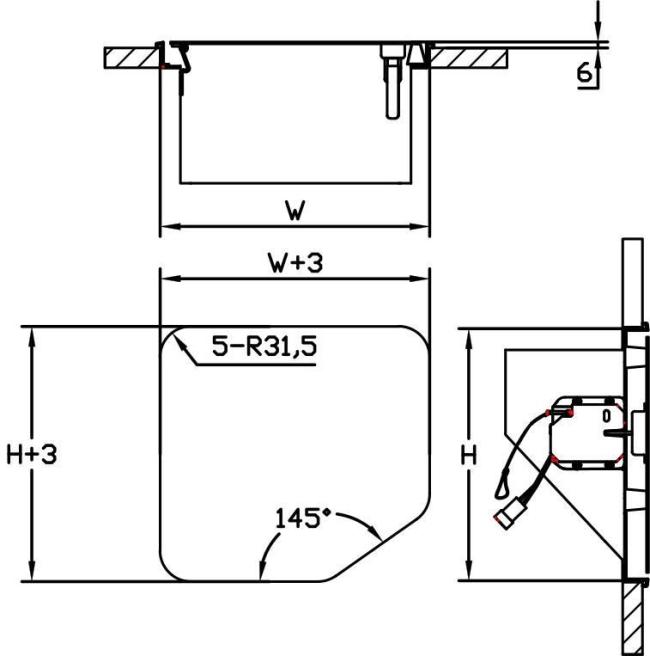

Technical drawing
