20ft Pressure Vessel LPG Storage Tanks / Carbon Steel LPG Transport Tank
Price:
Negotiable
MOQ:
2 units
Delivery Time:
45 working days
Brand:
GET
Product Description

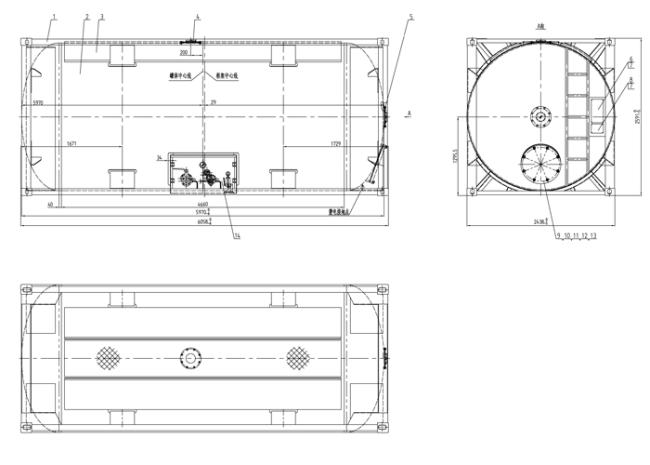

20ft Pressure Vessel tanker container for LPG
| 20ft Pressure Vessel tanker container for LPG | |||
| overall outside dimension(mm) | Length | 6058 | |
| Width | 2438 | ||
| Height (unload) | 2591 | ||
| Outside dimension of Tanker body(mm) | Length | 5970 | |
| Tanker Body Capacity(L) | 25000 | ||
| GVW(kg) | 19450 | ||
| Dead weight(kg) | 8950 | ||
| Rated payload(kg) | 10500 | ||
| Tanker Filling Ratio | 0.95 | ||
| Leakage Test Pressure | 1.8 Mpa | ||
| Design Pressuer | 1.8 Mpa | ||
| Desgin Temperature (℃) | 55 | ||
| Inner Tanker Material | 16MnDr | ||
| Corrosion Allowance | 1.0mm | ||
| Heat Treatment Method | PWHT | ||
| Hydraulix Test Pressure | 2.7 Mpa | ||
| Inner Tanker Mass | 6740 kgs | ||
| Urgency Switch Valve | Type | QGJY43F-2.5 | |
| Norminal Pressure | PN2.5Mpa | ||
| Norminal Diameter | Gas Phase | DN25mm | |
| Liquid Phase | DN50mm | ||
| Operation Way | Hydraulix Control | ||
| Closing Time | ≤10 Sec | ||
| Melting Switch Temperature | 75±5 ℃ | ||
| Liquid Location Meter | Type | UQZ-06 | |
| Model | Float Ball Type | ||
| Nominal Pressure | PN2.5Mpa | ||
| Surverying Range | 0-2400mm | ||
| Precision | 2.5 Grade | ||
| Safety Valve | Type | A412F-2.5 | |
| Model | Inner Full lift | ||
| Nominal Pressure | PN2.5Mpa | ||
| Norminal Diameter | DN80mm | ||
| Opening Pressure | 1.89 Mpa | ||
| Closing Pressure | ≥ 1.7 Mpa | ||
| Complete Opening Pressure | ≤ 1.98 Mpa | ||
| Load and Discharge System | Valve Type | CQA41F-25P | |
| Norminal Pressure | Pn2.5Mpa | ||
| Joint Model | Quick Joint | ||
| Gas Phase Pipe | DN25mm | ||
| Liquid Phase Pipe | DN50mm | ||
