GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves
Price:
Negotiable
MOQ:
5
Delivery Time:
10 WORKING DAYS
Brand:
GET
Product Description
| Bottom Valves-Emergency Valves | GET | H804B-80/100 | |||
| Technical Data | |||||
| Emergency Valves Norminal Diameter | 3" | ||||
| Emergency Valves Working Pressure | 0.6MPa | ||||
| Emergency Valves Material | 304 Stainless Steel | ||||
| Emergency Valves Open Method | MECHANICAL | ||||
| Emergency Valves Temperature Trange | -20~+70℃ | ||||
| Description of Emergency Valves | |||||
| Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. When pipeline or valve is broken sddenly, it will keep the tanker still tightly sealed to avoid the fuel leaking out to improce the safety during transportation. The main body is made of 304 Stainless Steel under the precision die casting with the advantage of simple structure , longer service life, easy servicing, etc. It can be made of 326 Stainless Steel if need, but Please inform us before order. | |||||
| Benefit and features of Emergency Valves | |||||

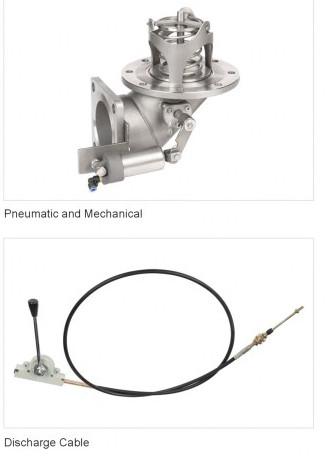

| 1. it is suitable for Chemicals transportation. 2. Temperature Range: -20℃~+150℃ 3. Discharge Cable Controller To do the mechanical Control 4. To Install the Cylinder To make it into Pneumatic Control |
|||||

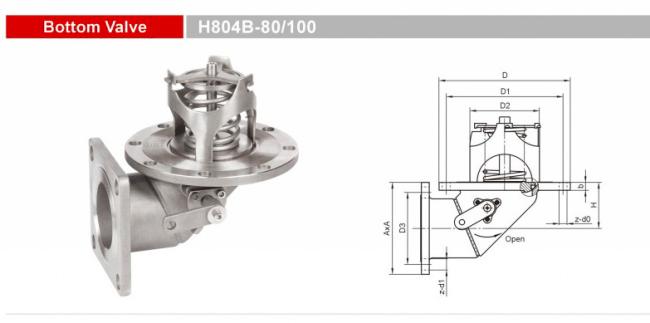

| Main Size Data of Bottom Valves-Emergency Valves | |||||||||||||
| Name | Model | A | D | D1 | D2 | D3 | H | b | z-d0 | z-d1 | Diameter | Pressure | |
| BOTTOM VALVE | GET | H804B-80 | 144 | ϕ200 | ϕ178 | ϕ105 | ϕ160 | 72 | 12 | 8-ϕ14 | 4-ϕ17 | 3" | 0.6MPa |
| GET | G804B-100 | 155 | ϕ220 | ϕ190 | ϕ130 | ϕ170 | 90 | 14 | 8-ϕ14 | 4-ϕ17 | 4" | 0.6MPa | |
