Blue Color Truck Spare Parts Non Driving Axle Disk Brake Axle Series 11-13T
Price:
Negotiable
MOQ:
5
Delivery Time:
10 WORKING DAYS
Brand:
GET
Product Description

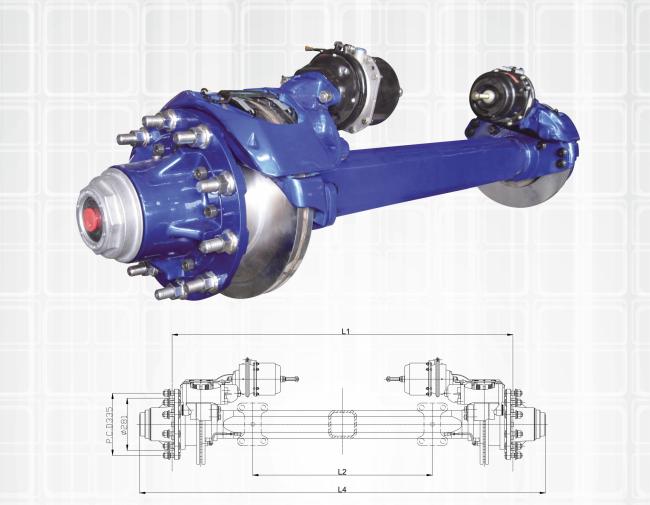

Truck Trailer Axles , Non-driving axle , Disk Brake Axle Series 11-13T
| Truck Trailer Axles , Non-driving axle , Disk Brake Axle Series 11-13T | |||||||
| Type of axles | Disk Brake Axle | ||||||
| Disk Brake Axle Capacity: | 11T-13T | ||||||
| Track of Disk Brake Axle | 1840MM/1820mm | ||||||
| Disk Brake Axle Beam: | □127□150〇 127〇 146 | ||||||
| Disk Brake Axle Beam Thickness: | 12-16mm | ||||||
| Disk Brake Axle Optional : ABS | |||||||
| Our Disk Brake Axle is made of high intensity alloy steel with excellent performance: | |||||||
| Features: 1. Unique one-piece, special heat-treated low-alloy steel axle beam offer more stability greater capacity and lighter weight. It is a world-class technology. 2. Integral P type swage straight spindle or tapered spindle with induction-hardened bearing journals -----provide superior fatigue capability. 3.Spider Camshaft and anchor pin bores are machined with reference to the spindle after the welding operation ---increase stability and braking performance 4.XEM OR Q GP brake kits with heavy duty brake return spring. 5. High performance premium non-asbestos brake linings-----extend service life. 6. Improved seal at camshafts-----protect the brake drums from the grease lubricant more safety 7.New 100% tight fit hub cap with additional O ring-----provide optimum seal performance. 8.Grease lubricant is supplied by SHELL and EXXON MOBIL. 9.Axles meet USA FMVSS-121 requirements and Australian ADR 38. |
|||||||
| Model | 105(km/h) Max. Capacity (kg) | Brake Seriesφ x Width (mm) | Track TR (mm) | Spring Seat Installation LM (mm) | Axle Beam (mm) | Studs (mm) | P.C.D | PILOT HOLE DIAMETER | Total Length LP (mm) | Recommended Wheel | |
| GET | 12K11D | 12,000 | 430×45 | 1820 | 950 | □127 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 13F11D | 13,000 | 430×45 | 1840 | 940 | □150 | 10-M22x1.5 ISO | 335 | 281 | 2190 | 8.25-22.5/7.5-22.5 |
| GET | 12Y11D | 12,000 | 430×45 | 1820 | 950 | 〇 127 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 12R11D | 14,000 | 430×45 | 1820 | 950 | 〇 146 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 12K11DB | 14,000 | 434×45 | 1820 | 950 | □127 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 13F11DB | 13,000 | 434×45 | 1840 | 940 | □150 | 10-M22x1.5 ISO | 335 | 281 | 2190 | 8.25-22.5/7.5-22.5 |
| GET | 12Y11DB | 12,000 | 434×45 | 1820 | 950 | 〇 127 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 12R11DB | 12000 | 434×45 | 1820 | 950 | 〇 146 | 10-M22x1.5 ISO | 335 | 281 | 2175 | 8.25-22.5/7.5-22.5 |
| GET | 10YU20D | 10,000 | 377×45 | 1820 | 950 | 〇 127 | 10-M22x1.5 ISO | 335 | 221 | 2050 | 7.5V-20 |
