Thermal Controller Mini Bimetallic Thermostat Switch JUC-31F 250V 2A 130 Degree
Mini Bimetallic Thermostat Thermal Controller Switch JUC-31F 250V 2A 0 To 130 Degree
| Electrical Rating | AC250V / 5A;AC250V 10A; AC125V / 8A |
| Action Temperature range | 0~130℃ (one step for every 5°C) |
| Recovery and action temperature difference | Operating temperature decrease by 15-45°C |
| Temperature deviation | ±3°C / ±5°C / ±7°C |
| Circuit resistance | ≤50mΩ (Initial value) |
| Insulation resistance | ≥100mΩ (DC500V Normal State) |
| Dielectric Strength | AC50Hz 1500V / min, no breakdown blinding (Normal State) |
| Life cycle | 10000 times |
| Contact type | D for Normally closed & H for Normally open |
| Delivery time | 7 to 15 working days |
| MOQ | 1000PCS |
| Payment method | TT or negotiate payment term |
| Delivery time | 7 to 15 working days |
| MOQ | 500PCS |
| Scope of application | JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection. |
1. JUC-31F thermostat’s Principle and structure
The product is a sensor of belonging to touch-type plastic Snap temperature thermostat ,the adoption of international TO220/Y220 standard package ,the product has high reliability ,sensitive and accurate ,small size ,light weight ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification
2. JUC-31F thermal protector’s Specification
2.1. Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
2.2. Contact type : D for normally closed type; H for normally open type
2.3. Temperature
|
Operating temperature/°C |
Recovery temperature/°C(lower than Operating temperature) |
Error |
Testing way (Speed of temperature rise and fall) |
|
0~99 |
5~35 |
±3°C |
1°C/min |
|
100~130 |
7~40 |
±5°C |
2.4. Overheating temperature:250 degrees
2.5. Contact resistance: less than 50mΩ
2.6. Insulation resistance : more than 100 mΩ
2.7. Dielectric withstand voltage: more than 1500V
2.8. Product life: more than 10000 times
2.9. Weight:1.7 g
2.10. Action temperature deviations:+-5 degrees

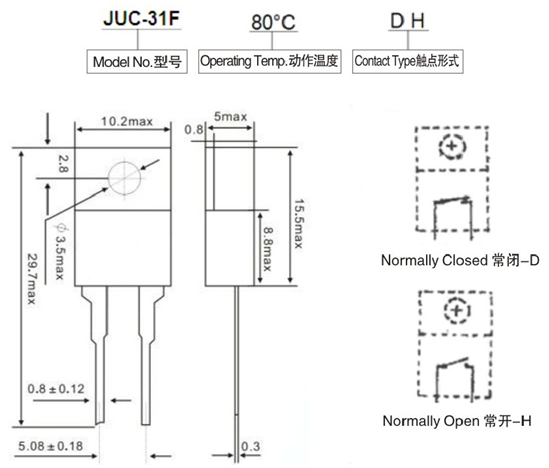

3. The drawing of JUC-31F
4. JUC-31F min temperature protector’s Application
JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection..
