RS-03 250V 10A 16A Thermal Cut Off Switch For Electric Fan Heaters

Price Negotiable

Price: $0.18/pieces 1000-4999 pieces

MOQ: 1000 pieces

Delivery Time: Negotiable

Brand: HENGHAO

Product Description

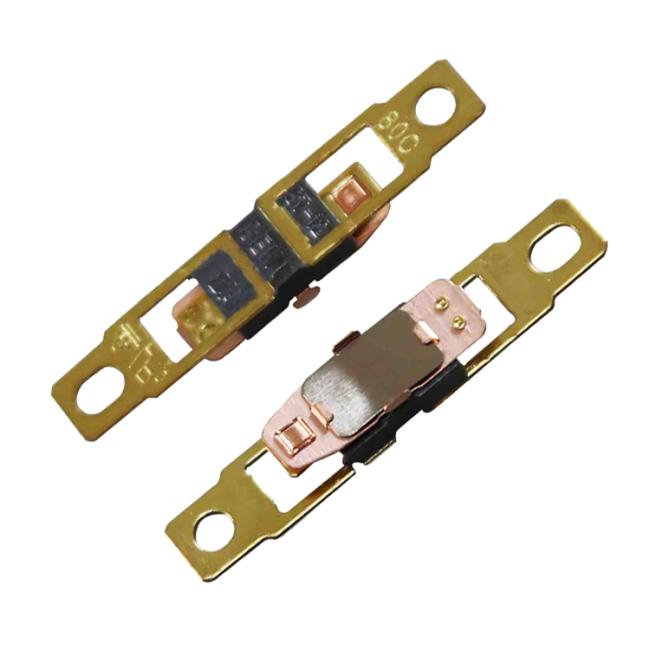

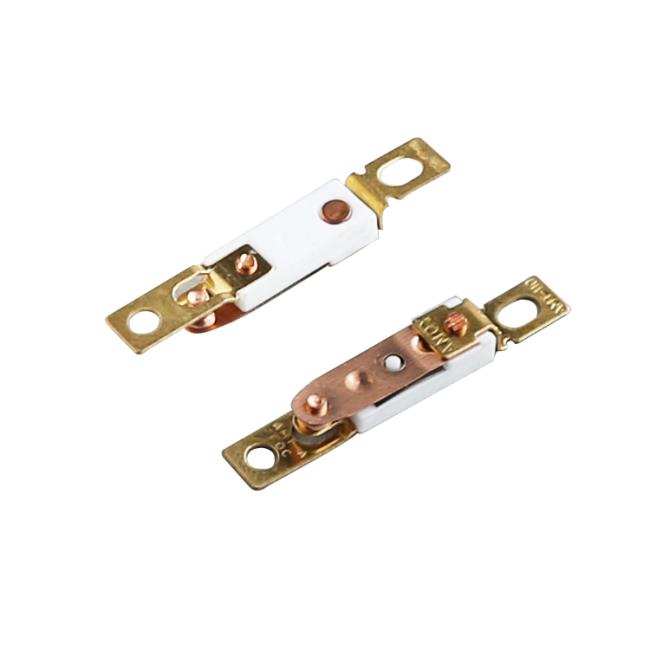

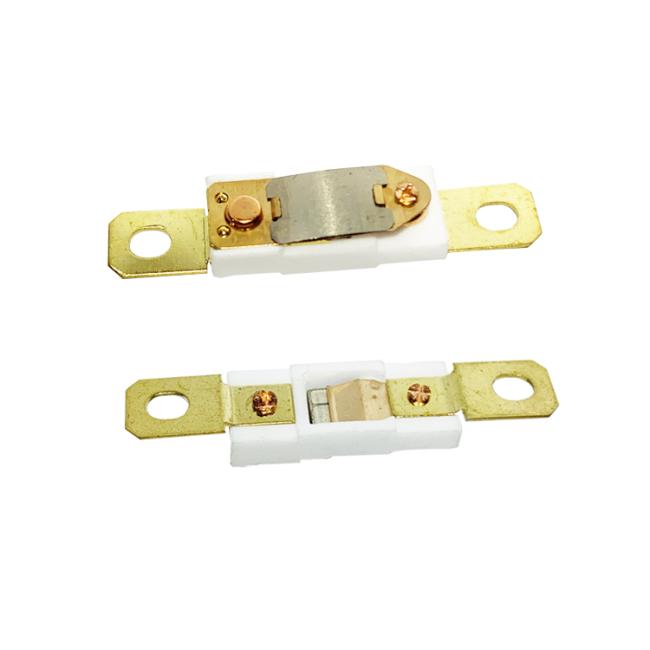

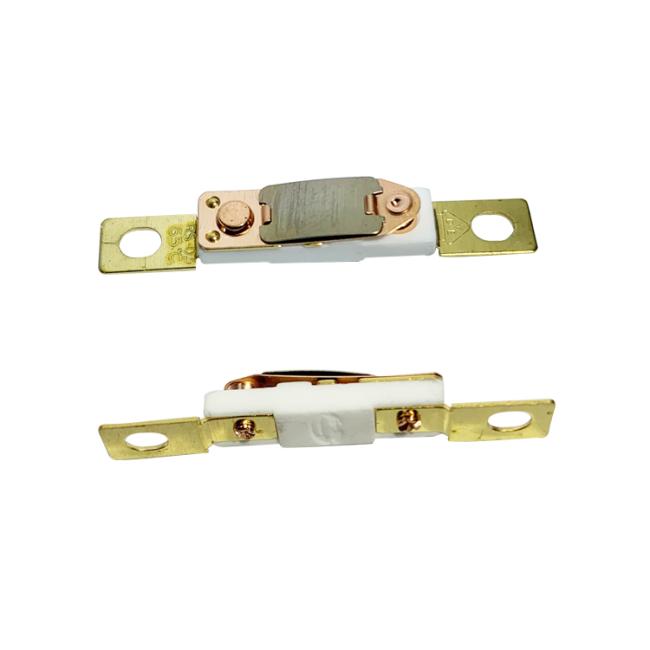

Temperature Controller Thermal Cut-Off Switch RS-03 250V 10A 16A For Electric Fan Heaters

Bimetallic Thermostat Controller Thermal Cut-off Switch Ksd301 250V 10A 16A 0 to 250 Degree with TUV CQC UL ROHS

Electrical Rating	AC-250V 10A; AC-125V 16A
Action Temperature range	45~160℃ (one step for every 5°C)
Recovery and action temperature difference	operating temperature decrease by 15-45°C
Temperature deviation	±3°C / ±5°C / ±7°C
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	≥100mΩ (DC500V Normal State)
Dielectric Strength	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	10000 times
Contact type	Normally closed
MOQ	1000PCS
Delivery time	7 to 15 working days
payment method	TT or negotiate payment term
Scope of application	RS03 thermostat is applicable to the thermal radiation control on various electric heating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc.

1. RS-03 thermal protector’s Principle and structure

RS-03 snap action thermostat is small-size bimetal thermostat series with a metal cap, which belongs to thermal relays ’family. The main principle is that one function of bimetal discs snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, then caused on of off of the circuit finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, longer working life and less radio interference.

2. RS-03 thermostat’s Specification

2.1.Electrical rating and current: AC-250V 10A; AC-125V 16A

2.2.Normally Closed, automatically reset

2.3.Operating temperature range: 40-160°C (one step for every 5°C )

2.4.Temperature tolerance: ±3°C±5°C

2.5.Reset Temperature range: operating temperature decrease by 15~45°C

2.6.Contact Closure resistance: ≤50mΩ

2.7.Insulation resistance: ≥100mΩ

2.8.Life cycles: 10000 times

3. Additional Table: Rated open temperature & Reset Temperature table

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
45±5℃	25~38℃	105±5℃	55~95℃
50±5℃	30~45℃	110±5℃	60~100℃
55±5℃	35~50℃	115±5℃	60~105℃
60±5℃	35~55℃	120±5℃	65~110℃
65±5℃	35~60℃	125±5℃	65~115℃
70±5℃	40~65℃	130±5℃	70~120℃
75±5℃	40~65℃	135±5℃	70~125℃
80±5℃	45~70℃	140±5℃	75~130℃
85±5℃	45~75℃	145±5℃	75~135℃
90±5℃	50~80℃	150±5℃	80~140℃
95±5℃	50~85℃	155±5℃	80~145℃
100±5℃	55~90℃	160±5℃	85~150℃
The specification can also be manufactured as request. ,Reset temperature lists only for reference

4. RS03 thermal protector’s Application

RS03 thermostat is applicable to the thermal radiation control on various electric heating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc.

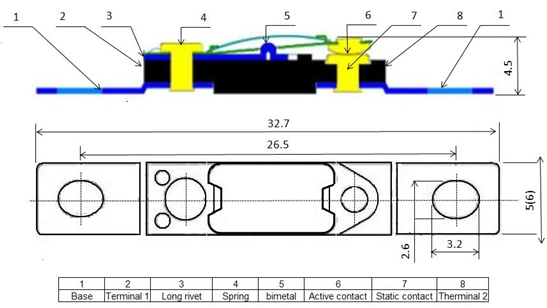

5. RS03 temperature switch’s Product Drawing
