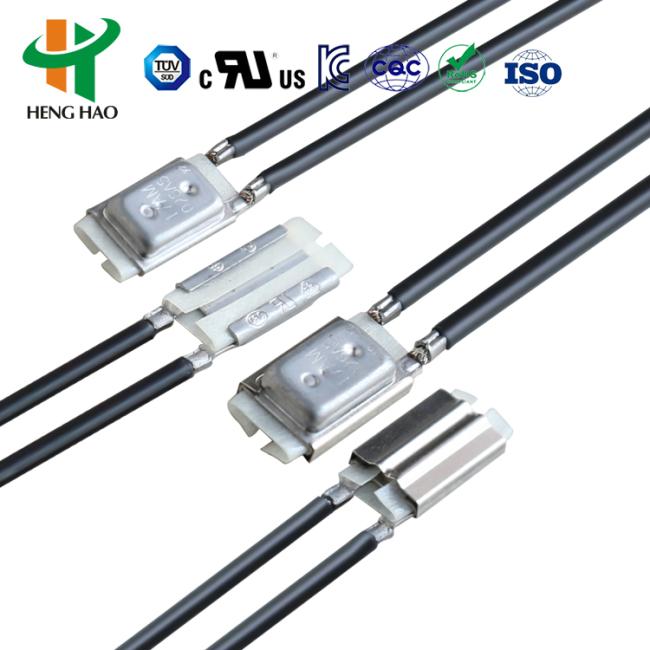

17AM035A5 Thermal Protector Auto Reset Thermal Fuse With Normally Closed And Normally Open Contacts For Manual Reset Applications

Product Overview

The 17AM thermal protector is an excess-current protector with compact design, offering quick and accurate action. It can be customized with different types of leads according to customer requirements.

• AC-125V 15A; AC-250V 10A, DC-16V 20A

• Contact life cycles: AC-125V 15A, AC-250V 10A >10,000 cycles; AC-125V 5A >100,000 cycles
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C/±3°C/±5°C
• Reset temperature: 10-45°C below trip temperature
• Working times: Over 10,000 cycles

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip temperature in °C code
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type

The 17AM thermal protector is suitable for various applications including:

• Motors and transformers
• Fluorescent lamp commutators
• Laminators and lighting equipment
• Cover sealing machines
• Household appliances

This product has UL, CQC, VDE and RoHS certification approval.

The manual reset thermostat uses bimetallic strip temperature sensing components. When temperature reaches the action range, it quickly disconnects. The contact remains open until manually reset by pushing the reset button after temperature declines by approximately 20°C.
