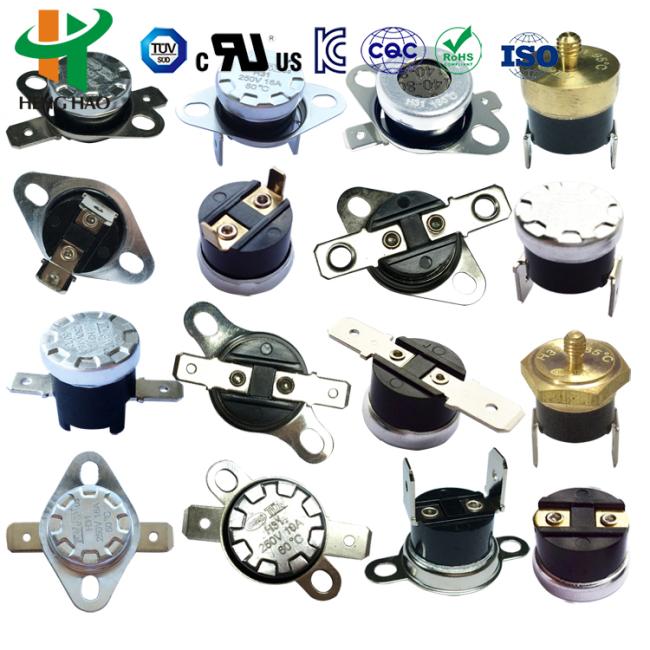

Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated

KSD302 series bipolar thermostat is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.

Bipolar Thermostat technology specification:

Rating Voltage: 250V

Rating Current: 15A (resistance load), Max. Current: 20A

Action Temperature: 50~200 degree

temperature accuracy: +- 2 +- 3 +- 5 +- 10 ℃

Life-span: 10,000 cycles

Contact Resistance:

Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover

Insulation resistance:

The chart of structure and dimension
