Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
25-30 days
Brand:
NC135
Product Description

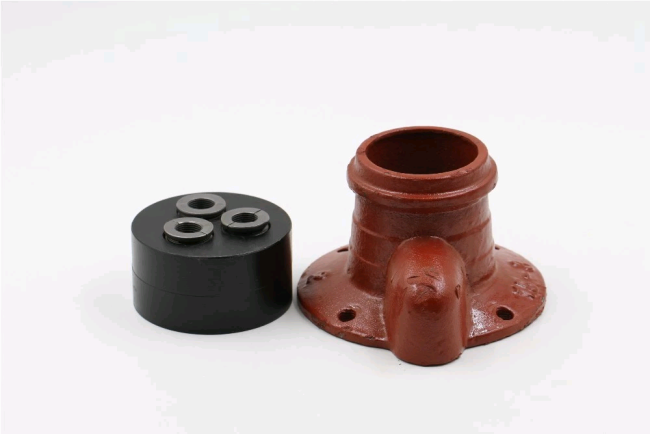

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Application
The construction concrete anchor plate is applied in prestressing concrete projects.
It is also adopted to reinforcing slope and landslides engineering.
It is also adopted to reinforcing slope and landslides engineering.
1. Used in pre-tension or post-tension for concrete constructions.
2. Bridge construction, buildings and channel constructions.
3. Highway and railway constructions.
About Us
We are a Leading manufacturer of bridge bearings and expansion joints, prestressing anchorage systems including anchor head, wedge, anchor bearing plate.
Features
1. Advanced structure and easy operation.
2. High anchoring efficiency and reliable anchorage.
3. Safety and laborsaving and customized accepted.
4. Perfect performance and good quality.
5. Lightened weight and durability.

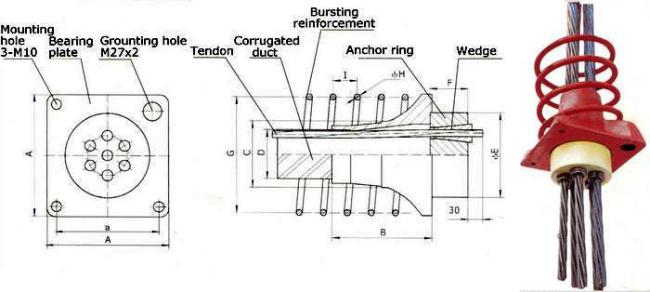

Specification
| Model | Bearing Plate | Duct | Anchor Head | Spiral Reinforcement | Stressing Jack | |||||
| Square | Round | Internal Diameter | φE | F | φG | H | φI | N | ||
| A×B | φA×B | |||||||||
| YJM15-1 | 80×20 | φ80×20 | 35 | 45 | 48 | 80 | 30 | 8 | 4 | QYC270 |
| YJM15-2 | 130×85 | φ135×80 | 50 | 83 | 48 | 120 | 40 | 8 | 4 | YDC650 |
| YJM15-3 | 130×87 | φ135×85 | 50 | 87 | 48 | 120 | 40 | 10 | 4 | YDC650 |
| YJM15-4 | 140×92 | φ137×100 | 55 | 97 | 48 | 140 | 50 | 10 | 4 | YDC1100 |
| YJM15-5 | 150×97 | φ148×122 | 55 | 107 | 48 | 150 | 50 | 10 | 4 | YDC1100 |
| YJM15-6 | 165×115 | φ167×136 | 70 | 122 | 50 | 170 | 50 | 12 | 4 | YDC1500 |
| YJM15-7 | 173×125 | φ167×136 | 70 | 122 | 50 | 170 | 50 | 12 | 4 | YDC1500 |
| YJM15-8 | 180×130 | φ177×150 | 80 | 137 | 53 | 190 | 50 | 12 | 4 | YDC2500 |
| YJM15-9 | 190×140 | φ187×150 | 80 | 147 | 53 | 200 | 50 | 12 | 4 | YDC2500 |
| YJM15-10 | 195×150 | φ210×160 | 90 | 157 | 53 | 205 | 55 | 14 | 4 | YDC2500 |
| YJM15-11 | 209×160 | φ210×160 | 90 | 157 | 55 | 205 | 55 | 14 | 4 | YDC2500 |
| YJM15-12 | 210×160 | φ210×185 | 90 | 167 | 55 | 230 | 55 | 14 | 4 | YDC2500 |
| YJM15-13 | 217×175 | φ210×185 | 90 | 168 | 55 | 230 | 55 | 14 | 4 | YDC3500 |
| YJM15-14 | 225×175 | φ235×185 | 90 | 177 | 58 | 240 | 55 | 14 | 4 | YDC3500 |
| YJM15-15 | 238×175 | φ235×185 | 90 | 187 | 60 | 260 | 55 | 16 | 5 | YDC3500 |
| YJM15-16 | 238×175 | φ235×185 | 90 | 187 | 60 | 260 | 60 | 16 | 5 | YDC3500 |
| YJM15-17 | 250×185 | φ265×200 | 100 | 197 | 63 | 280 | 60 | 16 | 5 | YDC3500 |
| YJM15-18 | 270×185 | φ265×200 | 100 | 197 | 63 | 280 | 60 | 16 | 5 | YDC4000 |
| YJM15-19 | 270×185 | φ265×200 | 100 | 197 | 65 | 280 | 60 | 16 | 5 | YDC4000 |
| YJM15-22 | 295×245 | φ285×260 | 120 | 217 | 70 | 290 | 70 | 18 | 5 | YDC5500 |
| YJM15-24 | 310×260 | φ320×260 | 120 | 237 | 75 | 330 | 80 | 18 | 5 | YDC5500 |
| YJM15-27 | 310×300 | φ300×300 | 120 | 237 | 80 | 330 | 90 | 18 | 5 | YDC6500 |
| YJM15-28/29 | 350×300 | φ330×300 | 130 | 277 | 88 | 330 | 70 | 20 | 6 | YDC6500 |
| YJM15-30/31 | 350×300 | φ330×300 | 130 | 277 | 88 | 350 | 70 | 20 | 6 | YDC6500 |
| YJM15-32/33/34 | 400×370 | φ390×370 | 140 | 287 | 93 | 400 | 70 | 20 | 6 | YDC6500 |
| YJM15-35/36/37 | 400×370 | φ390×370 | 140 | 287 | 98 | 400 | 70 | 20 | 6 | YDC9000 |
Why choose us?
1. We are China Leading of construction concrete anchor plate.
2.100% QC inspection Before Shipment.
2.100% QC inspection Before Shipment.
3. Best Quality & Best Service with Competitive price.
