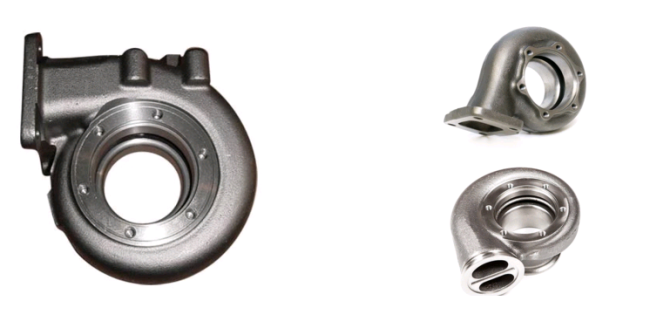

Steel Precision Investment Castings Turbine Housing Turbine Volute
Steel Precision Investment Casting Turbine Housing Turbine Volute
Description
| Process |
investment casting, precision casting, lost wax casting
|
| Processing ability | Surface finishment: Ra1.6-Ra3.2 |
| Size tolerance: VDG P690 D2 | |
| Maximum size: ≤1200mm×800mm×400mm | |
| Weight range: 0.1Kg-120Kg | |
| Material | stainless steel, carbon steel, alloy steel,heat-resistant steel, hardend steel,mild steel |
|
Brass CuZn38,H62 Aluminum bronze AB2,863 |
|
| Cast aluminium alloy ZL101,ZL114A,A356 | |
| Application |
Mechanical Components/parts Boat parts and Marine hardware Construction hardware Auto parts and accessories Medical Instrument parts pump & valve parts and accessories Impellers and propellers(propellors) Pipe Fittings or pipeline accessories Other industry metal casting parts |
| DESIGN | Various type of 2D or 3D drawings are acceptable,such as JPG,PDF,DWG,DXF,IGS,STP,X_T,SLDPRT etc. |
| STANDARDS | AISI,ATSM,UNI,BS,DIN,JIS,GB etc. |
| INSPECTION |
Dimension inspection Chemical composition analysis (Spectrum analysis) Mechanical property testing X-Ray inspection Dye Penetrant Inspection Magnetic powder inspection Metallographic inspections |
Related Products
Turbine wheel, compressor wheel, nozzle ring, turbine
rotor, turbine wheel shaft, diffuser, turbine housing, compressor housing, garrett turbo shaft and wheel etc.
Turbine wheel, compressor wheel, nozzle ring, diffuser, turbine blade, turbine housing, compressor housing, seal ring carrier,bearing support, engine diesel parts/truck diesel engine parts etc.
Turbine wheel, compressor wheel, nozzle guide vanes, turbine blade, diffuser, intake casing, casing outer ring, inlet casing, jet nozzle, Parts of aviation engine etc.
Turbine wheel, guide vane, compressor wheel, gas and steam turbine blade, etc.
Pump impeller, close impeller, blower impeller, compressor impeller, water pump impeller, turbine blade, turbine impeller, Guide vane, etc.
Our Service
Our strong R&D and QC department can control the products to meet your strict requirement.
No matter you have a drawing or a samlple,we can give you the quotation within 20 hours.
Different dimensions according to the client's request
Can provide various sizes and packing according to speciifc requirements
We offer the engineer consultation to your design for production improvement and cost saving
Customized and tailored order are welcome
High quality and delivery in time
Inspection report and material test certificates are available upon request us.
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied,
Yes, we can make measurement based on your samples to make drawings for tooling making.
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and
