Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider
Curtain Wall Spider 180 Degree Two-arms Spider Glass Hardware Fitting
Description

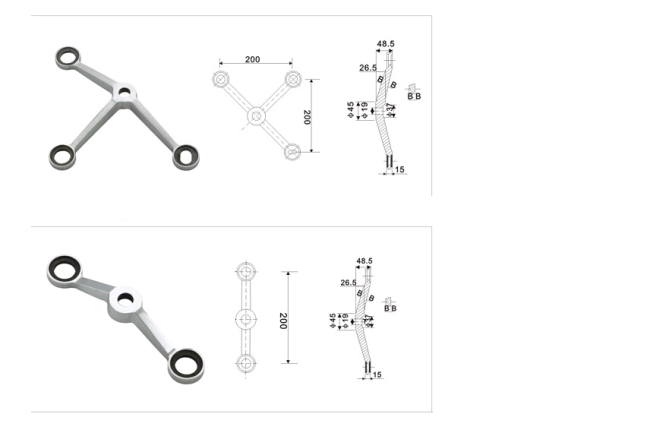

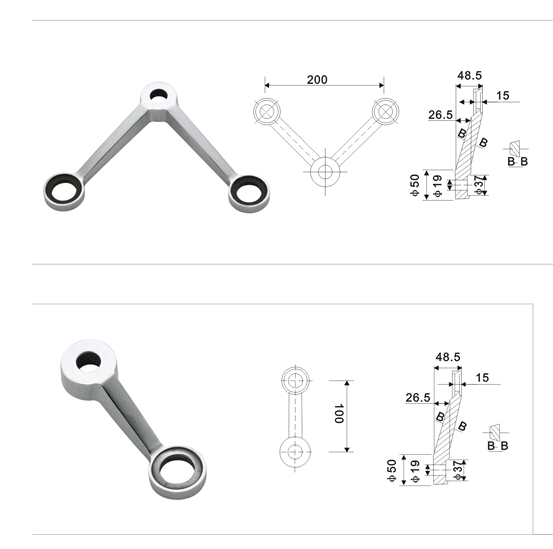

Glass curtain wall spider fitting supplier. Our own 4 arms spider , 3 arms spider ,
180 angle 2 arms spider , 90 angle 2 arms spider , short single spider, long single spiger,
different thickness and sizes glass routel.
Specification
| Material | Stainless Steel (304 and 316) |
| Finish | Mirror or satin |
| Type | 100,120,150,160,200,220,250 etc |
| Arm | 1/ 2/3/4 arms |
| Application | Suitable for glass curtain wall or handrail (glass thickness 6-25mm) |
Material Specification
| MATERIAL TYPE | CHEMICAL COMPOSITION | ||||||||||
| USA ASTM A959-09 ASTM |
EUROPE 10088-1:2005 |
C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Others |
| (%) | (%) | (%) | (%) | (%) | (%) | (%) | (%) | (%) | (%) | ||
| 201 | 1.4372 | ≤ 0.15 | ≤ 1.00 | 5.50-7.50 | ≤ 0.06 | ≤ 0.03 | 3.50-5.50 | 16.00-18.00 | N≤0.25 | ||
| 304 | 1.4301 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 8.00-10.00 | 18.00-20.00 | |||
| 304L | 1.4306 | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 8.00-10.00 | 18.00-20.00 | |||
| 316 | 1.4401 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | ||
| 316L | 1.4404 | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | ||

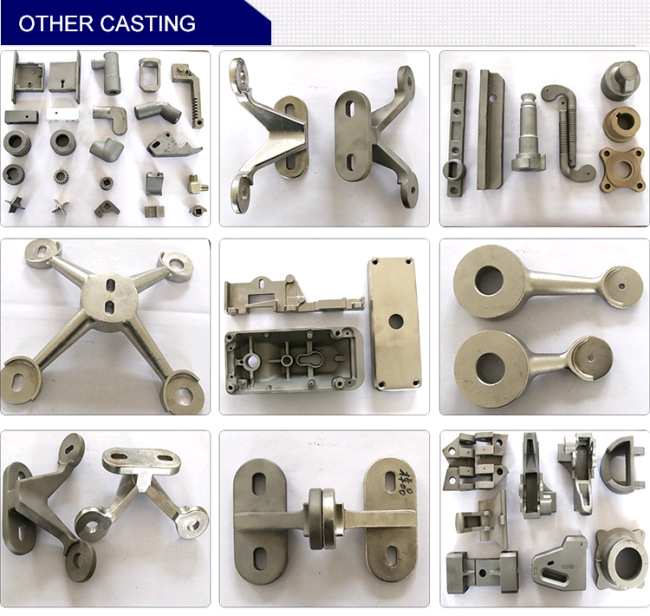

Other Products
Our Service
1. To provide small orders but more varieties of personalized production services;
2. To provide the appropriate technical support based on the customers needs;
3. To recommend a reasonable processing technology based on the customers’ demand and products’ features,.
4. To ensure the comprehensive competitiveness of customer products.Our company philosophy is Honesty, Gratitude ,
Duty, Responsibility, Courtesy, Win. We would like grow up with every customer according this philosophy.
Quality Control
(1) Customization: Our engineering designers will use 3D to plot the size and characteristics of the sample,
plot the AUTOCAD and 3D model, send it to the customer for confirmation, and start the production of the mold or product.
(2) To customize the plans: We receive drawings from our customers to check if all tolerances and features are satisfied.
If possible, we will start production and processing of molds and products.In order to meet the needs of customers,
we have corresponding production and processing equipment and testing methods.
