12.7mm Prestressed Steel Wedge Anchor / Post Tension Accessories Single Hole Anchor
12.7mm 15.2mm Prestressed Wedges Anchor Mono Strand Anchorage Single Hole Anchor
Description

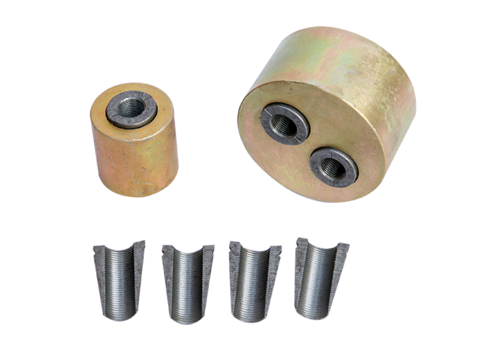

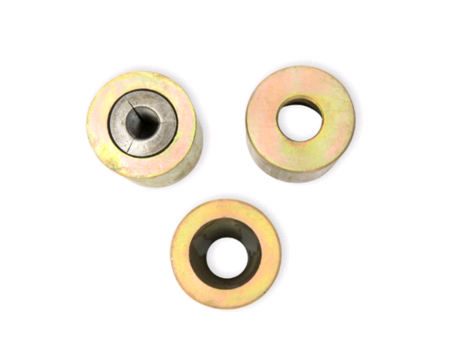

Stressing anchorage is the most common form of post-tensioning system, widely used in concrete structure and soil / rock retaining walls. Stressing anchorage consist of wedge, anchor head, bearing plate and spiral reinforcement.
The products can be divided into two types,VLM15 and VLM13 according to their strand diameters.
It can be used to anchorφ12.7~12.9mm,φ15.1~15.9mm,standard strength 1470~1960Mpa low relaxation and high strength PC strands, and can be also to 7φ5,7φ7,strength 1470~1770Mpa PC steel wires.
These anchorage are suitable for the structures of the prestressed concrete components in the post-tensioning constructions and rock soil anchoring. These anchorages all feature automatically following-up, automatically anchoring after tension releasing, high anchoring efficiency coefficient, fine anchoring perfoemance, safety and reliability, etc. these types of the anchorages are all typed with “VLM15””VLM13”ect. Steel seal letter (letter “VLM” are also on the big end of the wedges) in order to be identified and guarded against imitations.

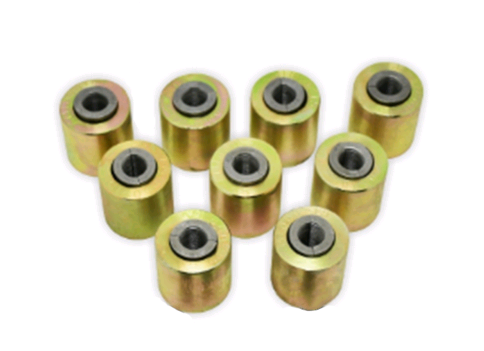

This series have different hole quantities for slected.
Product Details
| Components for one full set | Anchor head+wedge+bearing plate+spiral reinforcement |
| Round anchorage | 1-50 holes |
| Flat anchorage | 2-5 holes |
| Material of anchor head | 40Cr |
| Material of wedge | 20CrMnTi |
| Material of bearing plate | HP300 |
| Material of spiral reinforcement | Q235 |
| Surface treatment | anti-rust treatment |
| Package | in cartons or wooden boxes |
| Application field | post tension projects such as bridges, malls and roads |
Why Choose Us
The company operates a Quality Management System that complies with ISO 9001 and all products are manufactured to exacting standards using high specification materials. Our products are approved and tested according to the latest national standard requirements.
Involved in projects from conception to construction, we offers assistance to help clients meet the requirements of the stru cture and local technical standards.
Part of your each payment will be used to fanance the orphans' living and learing in SOS children's village. Together, let's make a difference.
FAQ
Q1: What is your payment terms:
A1: TT FOB: 30% deposite, balance before shipment. TT CIF: 30% deposite,
balance based on scanned
BL.LC 100% at sight
Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on
buyer's account.
Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard
cargo to us first. We can also send our engineer to your field to check it directly, if necessary.
Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
