5 Holes / 3 Holes Post Tension Anchor Arc Slab Anchorage Prestressing Curved Anchorage
Price:
$1-5
MOQ:
100 pcs
Delivery Time:
30 days
Brand:
NC241
Product Description

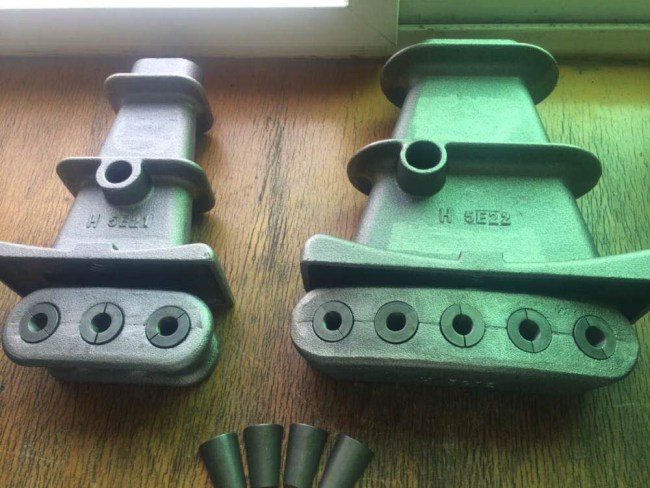

5 Holes 3 Holes Post Tension Arc slab Anchorage Prestressing Curved Anchorage
Description
1. For Strands Number: 2 strands, 3 strands, 4 strands, 5 strands. |
2. Materials: Anchor Head Materials: Iron Casting, Wedges Materials: 20CrMnTi. |
3. Full Complete Parts: Flat Anchor Casting Head, Wedges, Anchor Bearing Plate, Spiral Spring Ring. |
4. Anchor Head Hardness: HRC25-36. Wedges Hardness: HRC58-65. |
Application
1. For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2. For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3. For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers,
Water Conservancy Project, Oil or Gas Tank, etc.
Product Specification
| Model | Flat Anchor Head | Flat Bearing Plate | Flat Duct | |||||
| A | B | C | D | E | H | J | K | |
| BJM15(13)C-3 | 115 | 48 | 50 | 160 | 80 | 130 | 60 | 22 |
| BJM15(13)C-4 | 150 | 48 | 50 | 195 | 80 | 195 | 74 | 22 |
| BJM15(13)C-5 | 185 | 48 | 50 | 230 | 80 | 270 | 90 | 22 |
Our Service
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system,
arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges,
anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed
strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
