Unbonded PC Strand Post Tension Anchor 12.7mm Monostrand Anchor 1860Mpa Capacity
Price:
Can talk
MOQ:
100 pcs
Delivery Time:
30 days
Brand:
NC717
Product Description
Unbonded PC Strand 12.7mm Monostrand Anchor Post-Tensioning Mono Anchor Casting
Description
We offer a complete range of bar anchor castings for unbonded post-tensioning applications.
We offer a complete range of bar anchor castings for unbonded post-tensioning applications.
Bare anchor castings are available for 0.5” and 0.6” strand. Special order anchor castings can be
manufactured to your specifications.

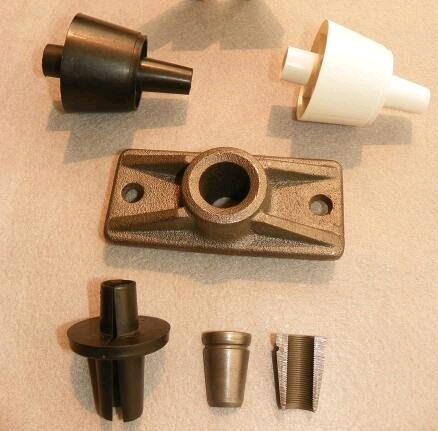

Product Show
| Strand | A | B | C | D | E | Weight |
| mm | mm | mm | mm | mm | mm | kg |
| 12.7 | 127 | 57.1 | 33 | 50.8 | 63.5 | 0.48 |
| 15.2 | 148 | 76 | 41 | 50.8 | 82.6 | 0.93 |
The characteristics of mono-strand anchor are as the following
It is adaptable for stand with diameters of 12.5mm, 12.7mm 12.9mm, 15.2mm, 15.24mm, 15.7mm with
various strength from 1570Mpa to 2000Mpa.
Good in terms of self-anchoring and easy operation;
High anchoring efficiency factor, stable and reliable;
Be capable of repetitive stretching and strong in terms of anti-interference capability.
Good in terms of self-anchoring and easy operation;
High anchoring efficiency factor, stable and reliable;
Be capable of repetitive stretching and strong in terms of anti-interference capability.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
