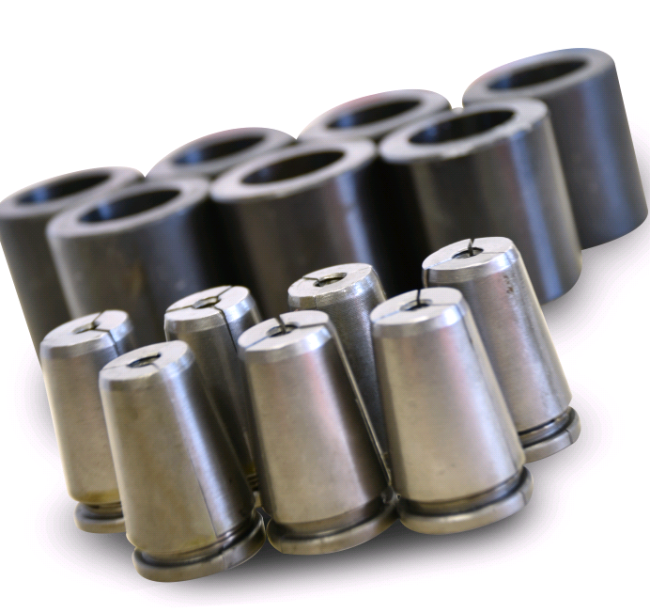

Galvanized Post Tension Accessories Anchor Barrel Wedge Mono Anchorage
Post Tension Accessories Anchor Barrel And Wedge Mono Anchorage
Description
Single Hole Anchorage can be used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm/15.2mm.Other size standards can be customized, click customer service to contact us.
The hardness of anchorage: GB/T 14370-2015.
It has been verified by pratice that various type of CM-W anchor ,also can be used for the different kinds of strand wires which is ASTM/BS/JIS/JIG/AS and other international standards.
Application
|
Product Name
|
Single Hole Mono Anchor
|
|
Material
|
40Cr
|
|
Color
|
Galvanized or Black
|
|
Standard
|
GB/ISO/ASTM/SGS
|
|
Product Shape
|
Round
|
|
Product Type
|
Single Hole
|
|
Place of Origin
|
China Mainland
|
|
Application
|
Bridge, Building, Highway, Railway, etc
|
Main Features
Adopting unique Electrophoretic technique to make anchors black-coated lasting best rust protection.
Adopting advanced prestressed tensiong technique tensioning high and stable load
Easy in installation and long time maintation.
Our Service
Our company can design and produce anchorages of any specifications according to demands of customers.
Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm, with standard strength of 2000Mpa or lower. With Compacted structure, easy operation, safety and laborsaving, high anchoring efficiency and reliable anchorage.
Our anchorage products are widely used for different projects, such as road and railway bridge, large scale industrial factory, high rise building, Hydroelectric dam, etc.
FAQ
A: Yes. We all think the best way to guarantee the quality of products.In some condition we could offer a Sample for the customer if you pay for the express cost.
2. Q: Where is Payment ways?
A: Both T/T payment and irrevocable L/C at sight. For the T/T payment, There has 30% prepayment in advance and the balance payable against copy of B/L.
3. Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan
