Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway
Price:
Can talk
MOQ:
100 pcs
Delivery Time:
30 days
Brand:
NC023
Product Description
Post Tension Arc Anchorage Prestressed Concrete Curved Flat Anchor
Product Description
BM15/13 arc flat anchors for 15.2-15.7, 12.7-12.9mm stand. Arc flat anchors Use in pre-tensioned ,post –tensioned panels, no beam floors or need to lower the beam height. Arc Flat anchors including flat anchor plate, working clip.

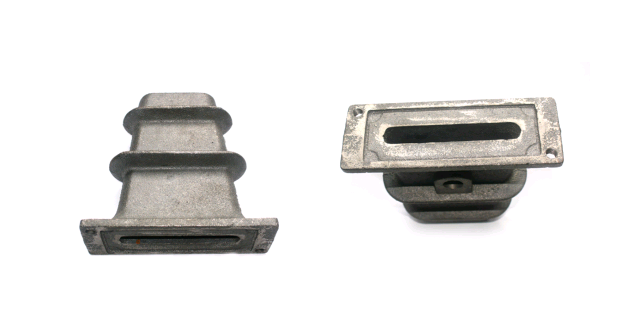

Bonded Flat slab S3 Anchors
bonded flat slab S3 anchors use 2 No. 15.24mm seven-wire prestressing strands or 3 No. 12.7mm seven-wire prestressing strand. Tensioning method of Pre-Stressing enables a builder to capitalise on all of the advantages of Pre-Stressed concrete or masonry. The Anchor are Ductile Iron, QT450, PN16.
Bonded Flat slab S5 Anchors
bonded flat slab S5 anchors use 4 No. 15.24mm seven-wire prestressing strands or 5 No. 12.7mm seven-wire prestressing strand.widely used in concrete structure and soil / rock retaining walls.
Product Details
| Type |
Fixed-end anchor plate |
Spiral bar |
Constraint circle shape |
Flat corrugated pipe diameter |
C(min) | ||
| BM15P-2 | 140x70 | 16T | 130x100 | 200L | 80x50 | 50x22 | 190 |
| BM15P-3 | 180x70 | 16T | 170x100 | 250L | 90x50 | 60x22 | 250 |
| BM15P-4 | 220x70 | 16T | 210x100 | 300L | 100x50 | 70x22 | 320 |
| BM15P-5 | 260x70 | 16T | 250x100 | 300L | 120x50 | 90x22 | 400 |
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
