MJ Bend Cast Iron Pipe Fittings Ductile Iron ASTM A536 AWWA / ANSI C153

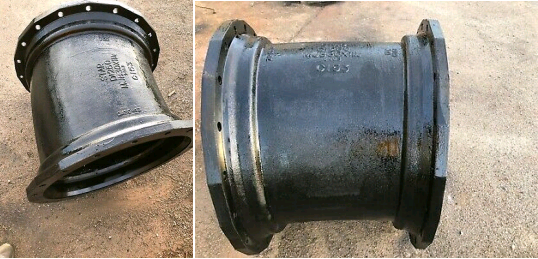

30” Mechanical Joint MJ 11-1/4 Degree Bend Ductile Iron C153 DI250
Product Details
| Material | Ductile iron ASTM A536 |
| Standard | AWWA/ANSI C153 |
| Cement Lining | In accordance with ANSI/AWWAC104/A21.4 |
| Testing | According to ANSI/AWWA C153/A21.53 |
| Gasket | SBR in accordance with ANSI/AWWA C111/21.11 |
| Pressure | 350/250/150 PSI |
1. What's our process?
For fittings bigger than DN300, we use resin sand cast;
For fittings no bigger than DN300( including DN300), we use clay sand cast.
Green sand with hand moulding and 3 semi-automatic lines are available.
For more detailed info, contact me please.
2. Could we foundry customers brand on castings?
Yes, customers brand marked on products are acceptable.
3. Is third party inspection is available for our castings?
Yes, both foundry in-house and third party inspection are available.
While the third party inspection may should be bear by customers self.
