Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
Price:
Negotiated
MOQ:
1pcs
Delivery Time:
5-15 business days
Brand:
DUALRAYS
Product Description

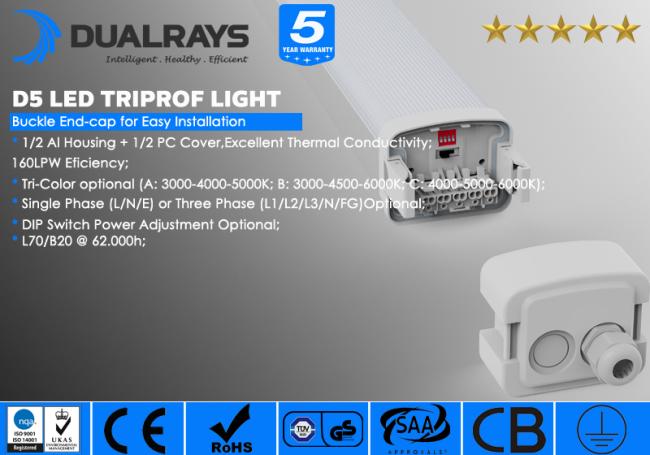

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
Dualrays D5 Serires 60W LED Tri Proof Light-- Detailed Product Description
| Model No.: | D5 Series | Beam Angle: | 120° |
| Power: | 60W | Protection: | IP66,IK10 |
| Power Supply | Boke | Warranty: | 5 Years |
| Lumin Output/lm | 9,600±5% | Material | Al+PC |
Dualrays D5 Serires 60W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring;
> IP65/IP66 and IK10 for all industrial areas of application;
> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;
> Multiple Link with double wiring;
> Completely mercury free and no UV or IR;
> L80/B10 @ 50.000h;
> 5 years warranty;
Dualrays D5 Serires 60W LED Tri Proof Light-- Options
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Single or double wiring and connection.
> Customized supported for special projects.
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations
| Model No. | DR-TP020-EG2XPX | DR-TP040-EG4XPX | DR-TP050-EG4XPX | DR-TP060-EG5XPX | DR-TP080-EG5XPX |
| System Watts/W | 20W | 40W | 50W | 60W |
80W
|
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | ||||
| Lumen Output/lm | 2.600/3.200±5% | 5.200/6.400±5% | 6.500/8.000±5% | 7.800/9.600±5% | 10.400/12.800±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.91 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V, DALI,Zigbee | ||||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | ||||
| Emergency(Optional) | 5W@3 Hours or Customized | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | AL+PC | ||||
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Length
|
2ft
|
3ft
|
4ft
|
5ft
|
 |
|
A
|
600mm
|
900mm
|
1200mm
|
1500mm
|
|
|
B
|
90mm
|
90mm
|
90mm
|
90mm
|
|
|
C
|
74mm
|
74mm
|
74mm
|
74mm
|
DALI Device
![]()
DALI Intelligent Control Diagram
![]()
![]()
DALI Intelligent Control Operator Interface
![]()
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
