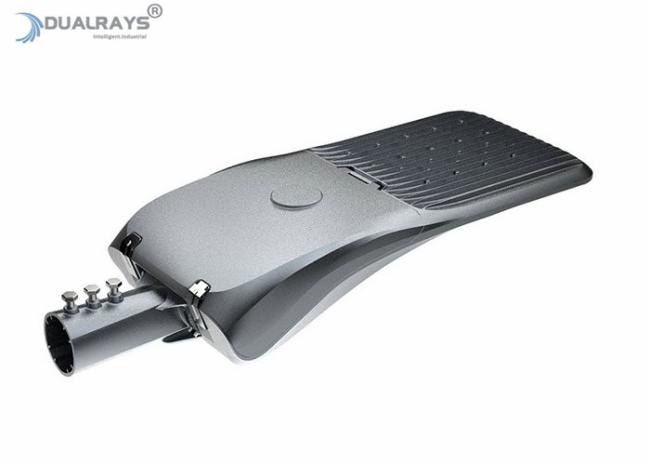

2020 professional manufacture Outdoor LED Street Lights IP66 210W With Meanwell Brand LEDs for highway display
Price:
negotiable
MOQ:
2pcs
Delivery Time:
5-15 working days
Brand:
Dualrays
Product Description
2020 professional manufacture Outdoor LED Street Lights IP66 210W With Meanwell Brand LEDs for highway display
Production advantage:
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,and toughened glass protection;
> IP66 and IK10 for road lighting application;
> Driver and housing separated by spacers;
> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty,7 or 10 years warranty negotiated;
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
![]()
* Parking lot.
* Playground.
* Sport and Stadium.
* Sport and Stadium.
|
Item
|
Symbol
|
Description
|
|||||
|
Model No
|
/
|
DR-ST030-DG1
|
DR-ST060-DG1
|
DR-ST090-DG1
|
DR-ST120-DG1
|
DR-ST150-DG1
|
DR-ST180-DG1
|
|
Rated Power
|
W
|
30
|
60
|
90
|
120
|
150
|
180
|
|
LEDs Typ/Qty
|
SMD
3030
|
96
|
96
|
512
|
640
|
640
|
640
|
|
Luminous Flux
|
LM
|
4,200±5%
|
8,400±5%
|
12,600±5%
|
16,800±5%
|
21,000±5%
|
25,200±5%
|
|
Efficiency
|
LPW
|
140
|
140
|
140
|
140
|
140
|
140
|
|
Color Temperature
|
CCT/K
|
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
|
|||||
|
Dimming Function
|
/
|
1-10VDC /PWM / Resistance
|
|||||
|
Protections
|
/
|
Short circuit/Over current/Over voltage/Over temperature | |||||
|
Anti-salty spray
|
/
|
Grade A
|
|||||
|
Color Index
|
Ra
|
>70Ra/>80Ra optional | |||||
|
Beam Angle
|
Degree
|
120
|
|||||
|
IP/Rating
|
/
|
IP66
|
|||||
|
AC Input Vol
|
V
|
AC95~277V 50/60Hz
|
|||||
|
Optics
|
/
|
Type I /Type III
|
|||||
|
Power Factor
|
PF
|
PF>0.95
|
|||||
|
Starting Time
|
s
|
<0.1
|
|||||
| Lumen Maintenance @ 6000 hrs |
Hours
|
>95%
|
|||||
| Switching Cycle before Failure |
Times
|
100,000
|
|||||
|
Life Span
|
Hours
|
50,000
|
|||||
|
Warranty
|
Years
|
5 years
|
|||||
30W/60W Version
90W,120W/150W/180W Version
Zigbee Wireless Intelligent Control Diagram
Zigbee Wireless Intelligent Control Operator Interface
DALI Device
DALI Intelligent Control Diagram
![2020 Hot sale Outpt street led lights with motion serson for highway display]()
![2020 Hot sale Outpt street led lights with motion serson for highway display]()
DALI Intelligent Control Diagram
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
