Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
5-15 Bussiness Day
Brand:
DUALRAYS
Product Description
Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting
Production specification:
> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
> Die-casting Al for excellent heat dissipation;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
>Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

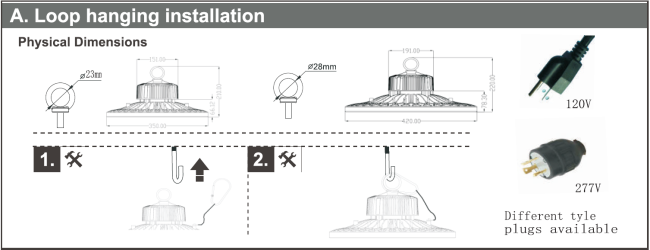

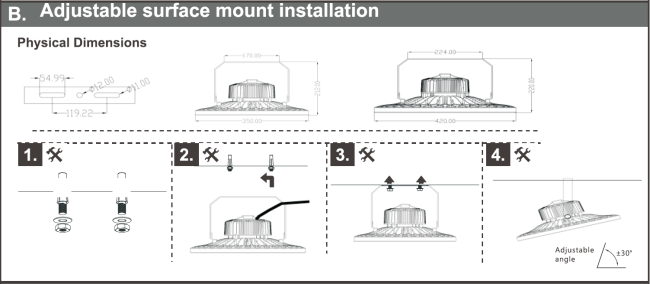

> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects
> Factories
> warehouse
> workshop
> Exhibitions & showrooms
> Supermarket & game shop
|
Model No
|
/
|
DR-HB100-EG
|
DR-HB150-CG
|
DR-HB200-EG
|
DR-HB240-EG
|
|
Rated Power
|
W
|
100
|
150
|
200
|
240
|
|
LEDs Typ/Qty
|
SMD
3030
|
161
|
224
|
322
|
364
|
|
Luminous Flux
|
LM
|
14,000±5%
|
21,000±5%
|
28,000±5%
|
33,600±5%
|
|
Efficiency
|
LPW
|
140
|
140
|
140
|
140
|
|
Color Temperature
|
CCT/K
|
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
|
|||
|
Dimming Function
|
/
|
1-10VDC /DALI / PIR Sensor | |||
|
Protections
|
/
|
Short circuit/Over current/Over voltage/Over temperature | |||
|
Anti-salty spray
|
/
|
Grade A
|
|||
|
Color Index
|
Ra
|
>80Ra
|
|||
|
Beam Angle
|
Degree
|
60°/120° for option
|
|||
|
IP/Rating
|
/
|
IP65
|
|||
|
AC Input Vol
|
V
|
AC100~240V 50/60Hz
|
|||
|
Power Factor
|
PF
|
PF>0.95
|
|||
|
Starting Time
|
s
|
<0.1
|
|||
| Lumen Maintenance @ 6000 hrs |
Hours
|
>95%
|
|||
| Switching Cycle before Failure |
Times
|
100,000
|
|||
|
Life Span
|
Hours
|
50,000
|
|||
|
Warranty
|
Years
|
5 years
|
|||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
 |
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the HB5 LED high bay?
RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is colour temperature?
Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
RE: No MOQ, Sample order for testing welcome.
Q4: What is the Lead time?
Q4: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Labeling ?
Q6: Finish color?
Q8: Is there cheap shipping cost to import to our country?
Q5: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
Q6: Finish color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.
Q7: Dimming functions?
Q7: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.
Q8: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q9:Can we get support if we have our own market position?
orders,we suggest via air to airport plus our ship partner send to your door.
Q9:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
